Tamiya stiksæt 4,5mm 2-POL/1 Rækker
Varenummer:
99-945
Varekode:
EL4.5-2P MULTISTIK
Vægt:
20 g
Lagerstatus:
Lager: 1418 stk.

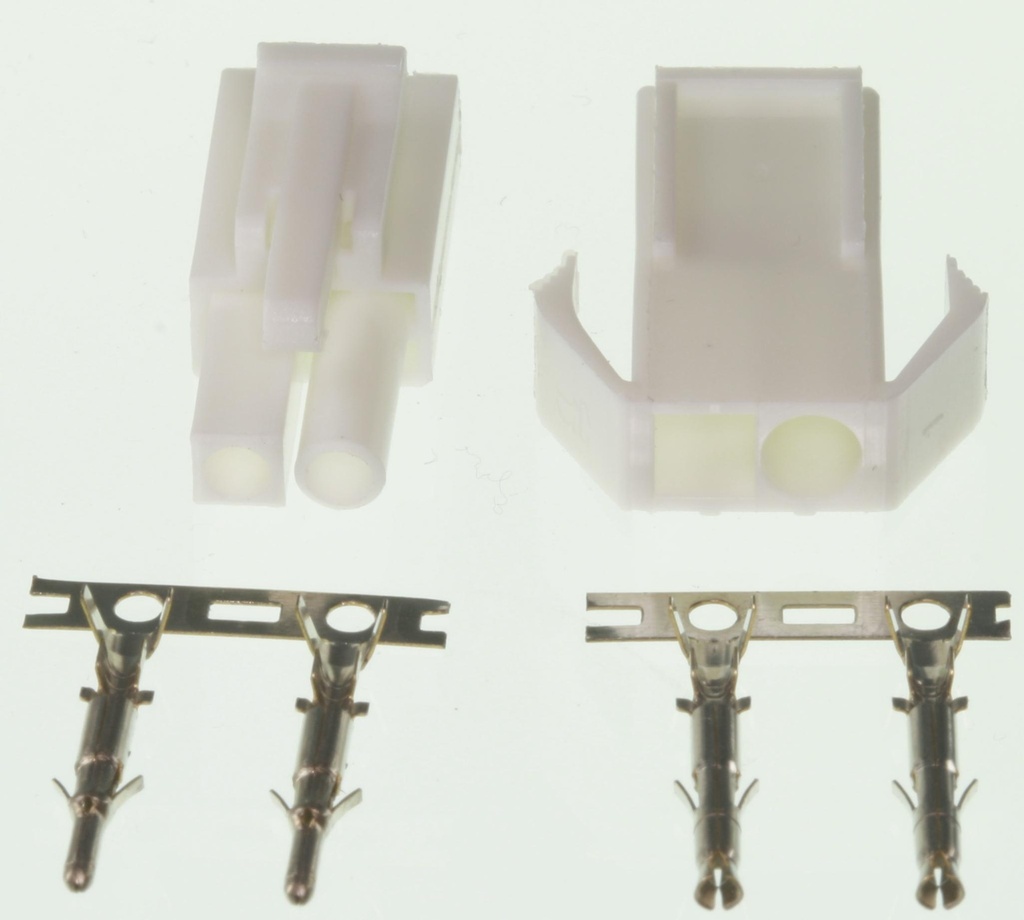

Posen indeholder 1 x han hus, 1 x hun hus, 2 x han indsatser og 2 x hun indsatser til 1 stk. komplet 2-pol stikforbindelse.
Technical parameters:
Spacing: 4.5
Applicable wire: AWG # 26 ~ # 16
Rated voltage: 300V DC / AC (RMS)
Rated current: 6.0 ~ 10.0A
Withstand voltage: 1500V AC (rms)
Working temperature: -25 ~ + 85
Insulation resistance: ≥1500MΩ
Contact resistance: ≤0.015Ω
Spacing: 4.5
Applicable wire: AWG # 26 ~ # 16
Rated voltage: 300V DC / AC (RMS)
Rated current: 6.0 ~ 10.0A
Withstand voltage: 1500V AC (rms)
Working temperature: -25 ~ + 85
Insulation resistance: ≥1500MΩ
Contact resistance: ≤0.015Ω
Stregkode:
99945
Intern reference:
99945
Varekode:
EL4.5-2P MULTISTIK
