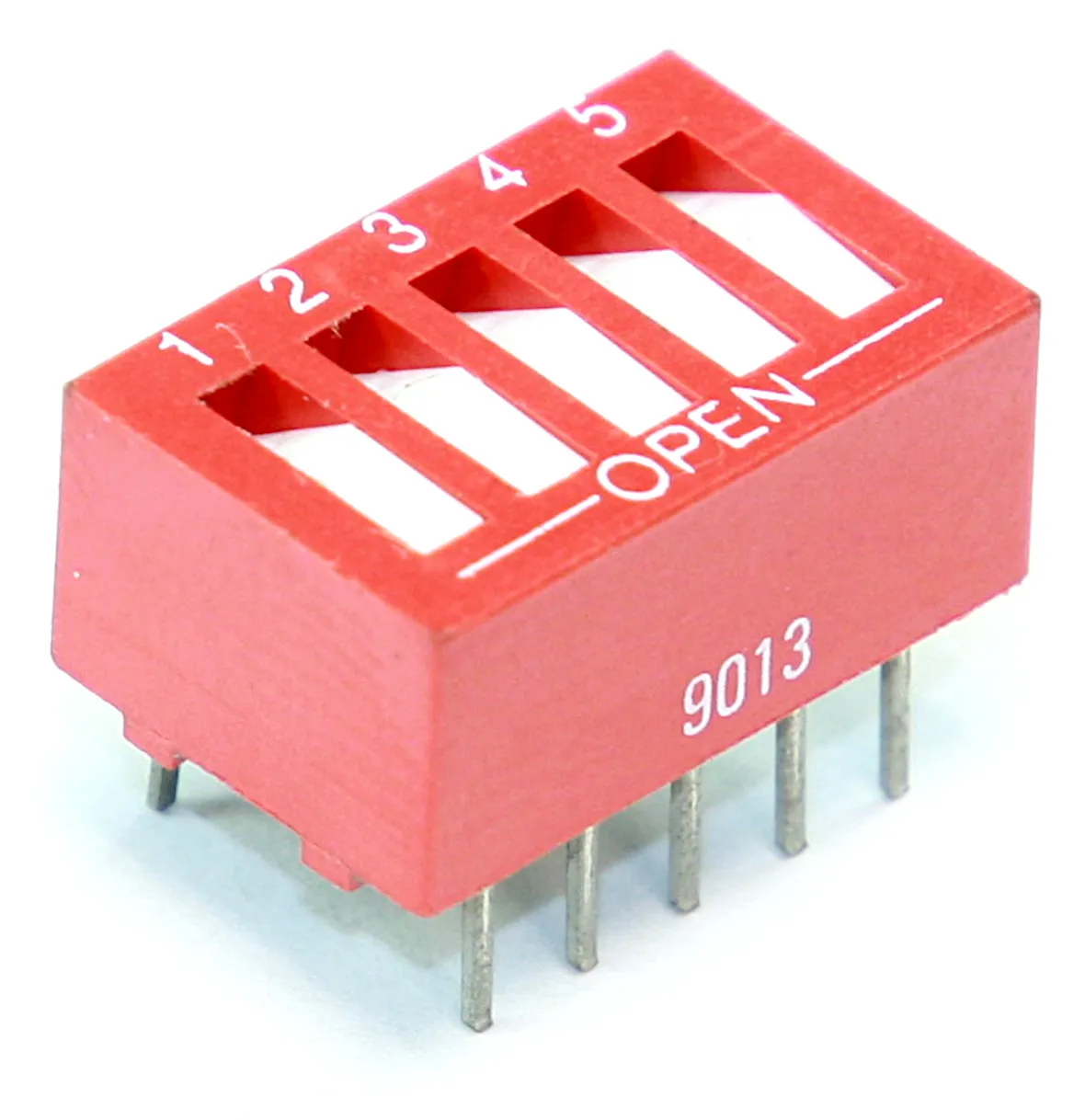

DIP Switch 5-Pole
Varenummer:
96-282
Varekode:
76RSB05S
Vægt:
0 g
Lagerstatus:
Ikke på lager
FABRIKAT: GRAYHILL
SWITCH ROCKER DIP SPST 150MA 30V
Dip Switch SPST 5 Position Through Hole Rocker Actuator 150mA 30VDC
| Manufacturer | Grayhill Inc. | |
|---|---|---|
| Series | 76 | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Circuit | SPST | |
| Number of Positions | 5 | |
| Current Rating (Amps) | 150mA | |
| Voltage Rating | 30VDC | |
| Actuator Type | Rocker | |
| Actuator Level | Flush, Recessed | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Height Above Board | 0.292" (7.41mm) | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Pitch | 0.100" (2.54mm), Full | |
| Washable | Yes | |
| Features | Tape Seal | |
| Operating Temperature | -40°C ~ 85°C | |
| Body Material | Thermoplastic | |
| Length | 0.580" (14.73mm) | |
| Mechanical Life | 2,000 Cycles | |
| Electrical Life | 2,000 Cycles |
