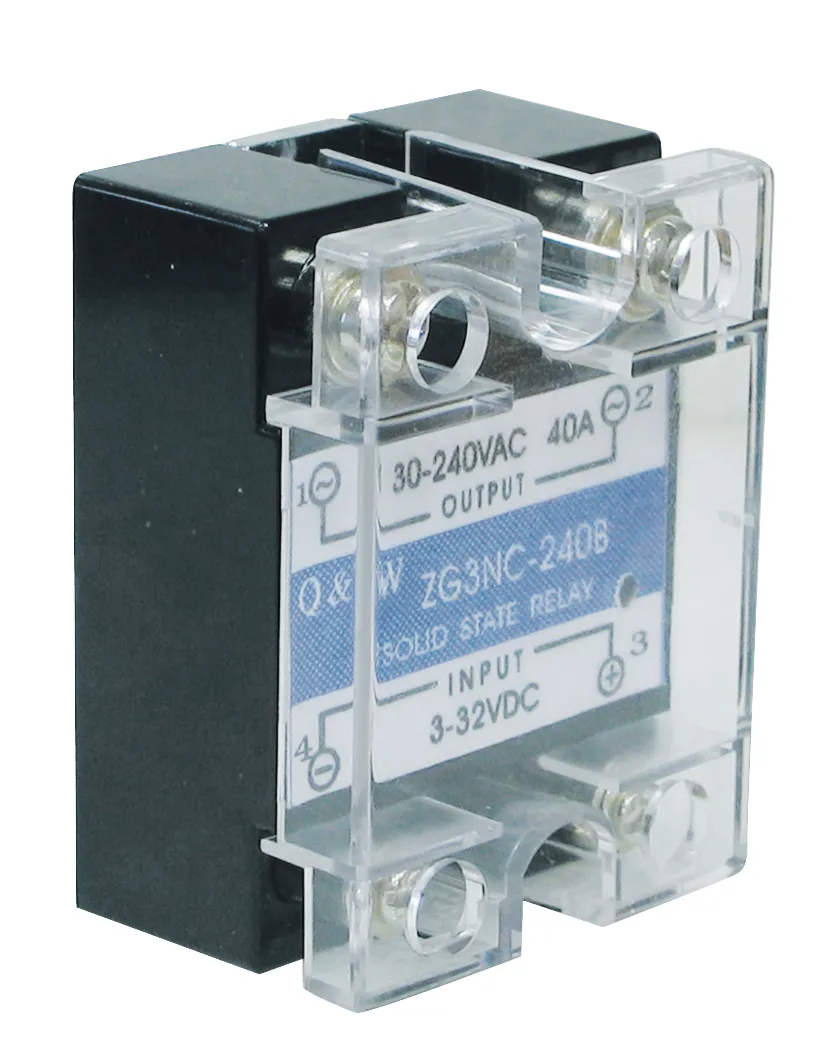

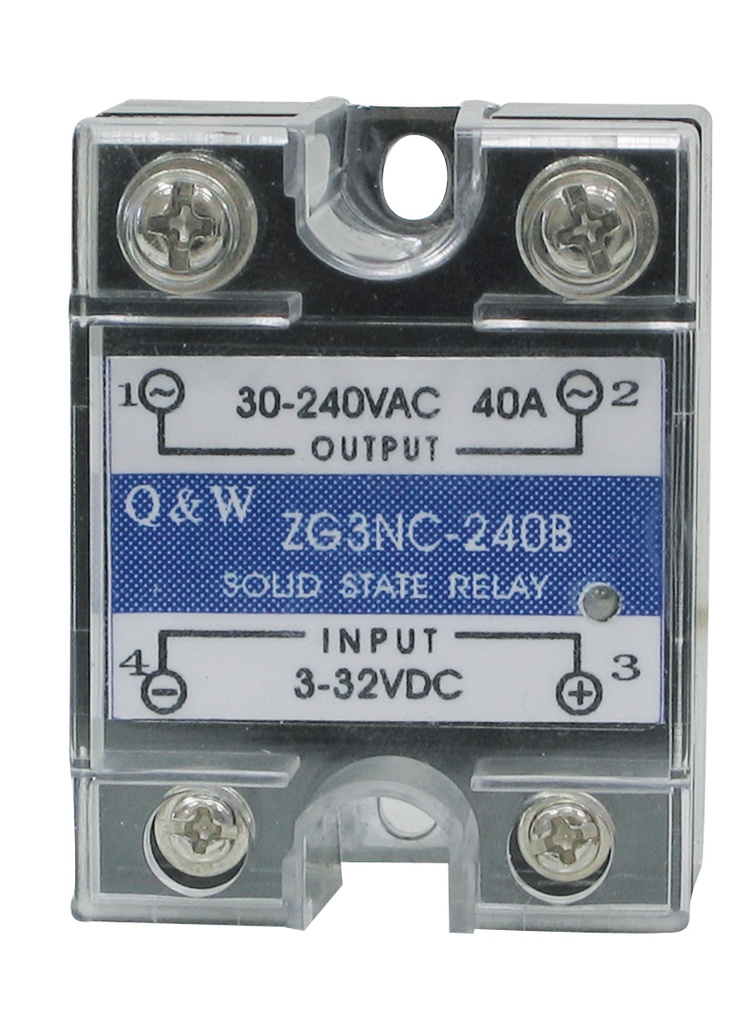

Stærkstrømsrelæ 3-32VDC / 30-240VAC
Varenummer:
94-681
Varekode:
ZG3NC-240B
Vægt:
100 g
Lagerstatus:
Ikke på lager
Stærkstrømsrelæ
Strømstyrke 40A/240VAC
Indgang: 3-32VDC
Udgang: 30-240VAC
Mål: 57 x 44 x 27 mm
Leveres med beskyttelseshus.
| Manufacturer (Brand) | ||
|---|---|---|
| Contact Form | SPST-NO | |
| Max. Switching Current | 40 A | |
| Coil Voltage | 3-32VDC | |
| Type | SSR | |
| Coil Resistance | - Ohm | |
| Coil Power | - mW | |
| Max. Switching Power | - | |
| Max. Switching Voltage | 420VAC | |
| Dielectric Strength (between coil and contacts) | 2500VAC | |
| Operate/Release time | 10ms/10ms | |
| Dimensions | 57x44x22mm | |
| Contact Material | - | |
| Description | photoelectric coupler | |
| Note | n/a | |
| Series | n/a | |
| RoHS | Yes |
Stregkode:
4250019109867
Intern reference:
94681
Varekode:
ZG3NC-240B
