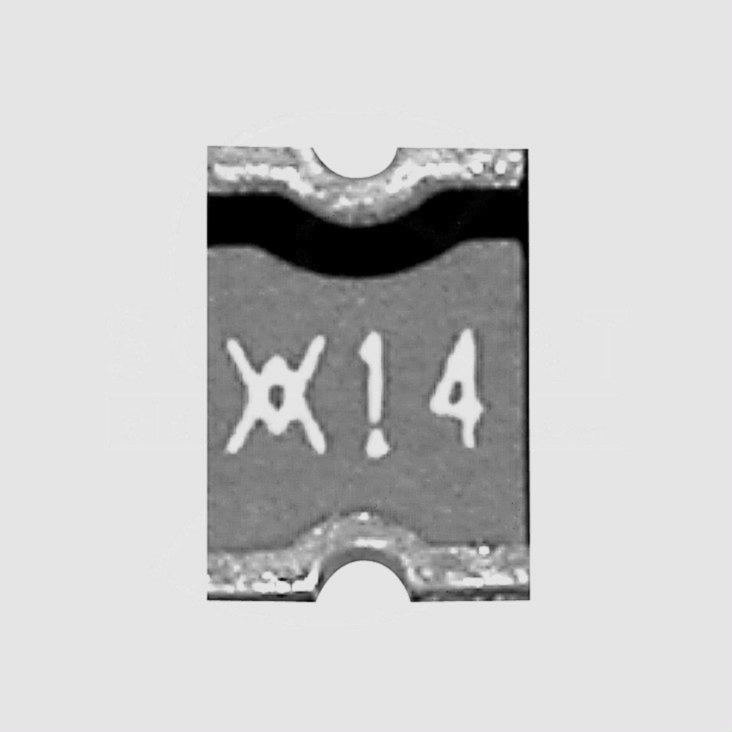

SMD PolySwitch Resett. Device 24V 0,50A

Varenummer:
93-248
Varekode:
MINISMDC050F-2
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 0,00 0.0 DKK kr 0,00 Inklusiv moms

kr 0,00 Inklusiv moms

Anmod os om en pris

v/10
Kr. 5,29
v/25
Kr. 4,41
v/100
Kr. 3,52
v/1000
Kr. 2,65

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/54681/image_1920?unique=0248f6c https://elektroniklavpris.odoo.com/web/image/product.template/54681/image_1920?unique=0248f6c
Gruppe: E1252
TE SMD PolySwitch Resettable Devices
Series: miniSMD_F
Rated Current: 0,14A to 1,5A
Features
• Small compact size (1812)
• Resettable switching device
• Low current loss due to a low resistance in normal use
The PolySwitch device is a resettable switching device made from a polymer blend. The mode of action is based on the PTC effect.
In standard use, the resistance of the PolySwitch device is very low so that only a small power loss arises. In the event of an error, e.g. short-circuit or overcurrent, the resistance value of this device increases and protects the equipment. After eliminating the error and switching off the supply voltage, the PolySwitch device quickly returns to a low impedance state.
Application
These components are ideal for use in PC cards for computer telecom applications and general electronics.
Technical Specifications
Part Nr.
IN
UNMax
IMax
R1Max
tTrip Current
 [A]
[V DC]
[A]
[W]
[s]
MINISMDC014F-20,14
60
10
6,0
A
MINISMDC020F-20,2
30
10
3,3
B
MINISMDC050F-20,5
24
100
1,0
C
MINISMDC075F-20,75
13,2
100
0,45
D
MINISMDC110F-21,1
8,0
100
0,21
E
MINISMDC150F-21,5
6,0
100
0,11
G
IN = Rated Current, UNMax = Max. Rated Voltage, IMax = Max. Cut-Off Current R1max. = 1 Hour Post-Trip Resistance Standard Trip, tTrip Current = Minimum Current a Device will Trip at Given Reference Current IS, All Data for Ambient Temperature at 20°C

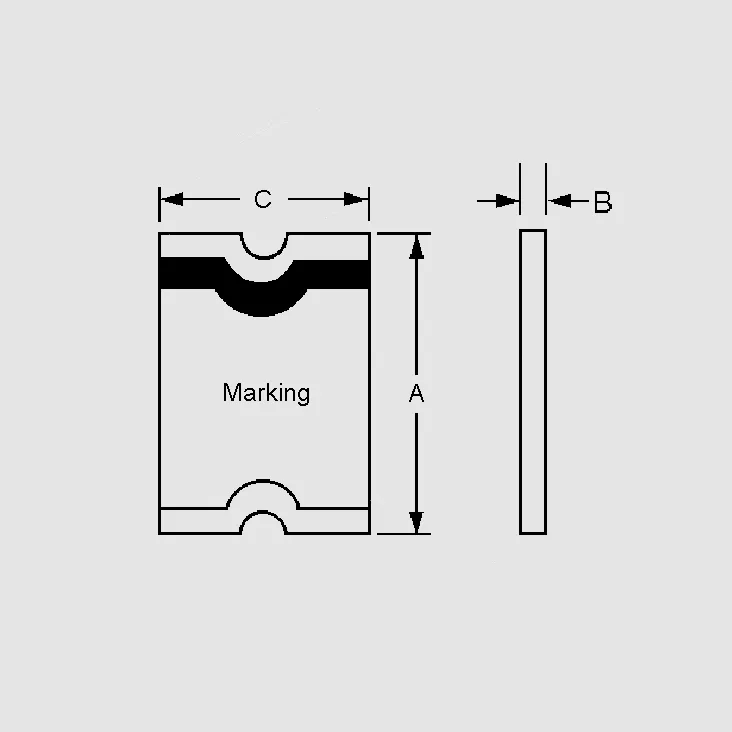

Dimensions
Part Nr.
AMax
BMax
CMax
 [mm]
[mm]
[mm]
MINISMDC014F-24,73
0,89
3,41
MINISMDC020F-24,73
0,62
3,41
MINISMDC050F-24,73
0,62
3,41
MINISMDC075F-24,73
0,62
3,41
MINISMDC110F-24,73
0,62
3,41
MINISMDC150F-24,73
0,48
3,41
Note
• These components are protected against overcurrent and overtemperature; not for continuous repeatable switching operations.
• The valid VDE regulations must be observed when handling products which come into contact with electrical voltage.
Approvals

Terms of Delivery
Minimum order quantity: 1 PKU = 10 pieces
Original packing: 1 PKU = 2000 pieces, taped
Manufacturer
TE Connectivity
http://www.te.com
