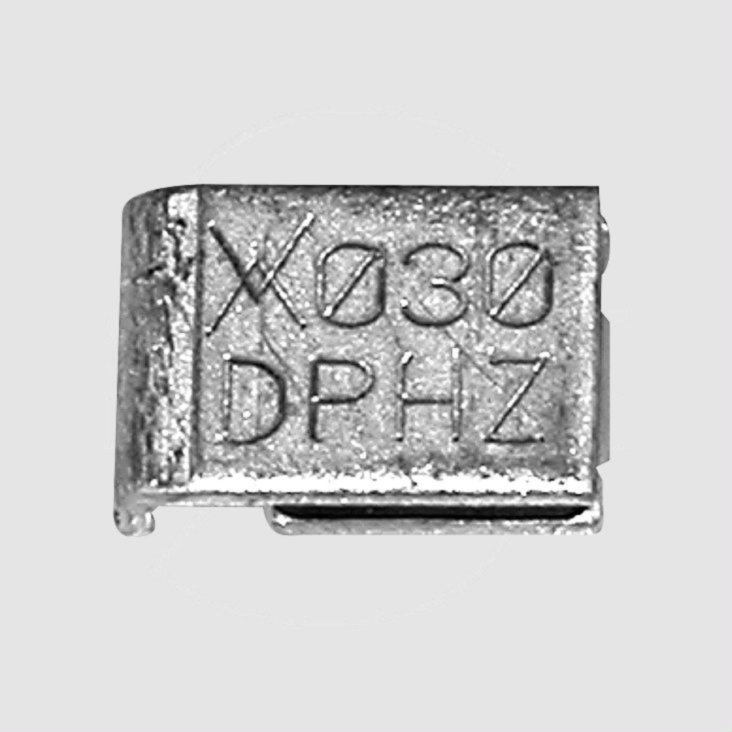

SMD PolySwitch Resett. Device 33V 1,85A
Varenummer:
93-244
Varekode:
SMD185F-2
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
E1251
TE SMD PolySwitch Resettable Devices
Series: SMD_F
Rated Current: 0,3A to 2,0A
TE SMD PolySwitch Resettable Devices
Series: SMD_F
Rated Current: 0,3A to 2,0A
| Features |
| • Small compact size • Resettable switching device • Low current loss due to a low resistance in normal use The PolySwitch device is a resettable switching device made from a polymer blend. The mode of action is based on the PTC effect. In standard use, the resistance of the PolySwitch device is very low so that only a small power loss arises. In the event of an error, e.g. short-circuit or overcurrent, the resistance value of this device increases and protects the equipment. After eliminating the error and switching off the supply voltage, the PolySwitch device quickly returns to a low impedance state. |
 |
| Application |
| These components are ideal for use in PC cards for computer telecom applications and general electronics. |
|
| Technical Specifications |
| Part Nr. | IN | VMax | R1Max | tTrip Current |
| [A] | [V] | [W] | [s] | |
| SMD030F-2 | 0,3 | 60 | 4,80 | A |
| SMD050F-2 | 0,5 | 60 | 1,40 | B |
| SMD075F-2 | 0,75 | 30 | 1,00 | C |
| SMD100F-2 | 1,1 | 30 | 0,48 | D |
| SMD125F-2 | 1,25 | 15 | 0,25 | E |
| SMD150F-2 | 1,5 | 15 | 0,25 | A |
| SMD185F-2 | 1,85 | 33 | 0,15 | C |
| SMD200F-2 | 2,0 | 15 | 0,125 | D |
| IN = Rated Current, R1Max = 1 Hour Post-Trip Resistance Standard Trip, tTrip Current = Minimum Current a Device will Trip at Given Reference Current IS, All Data for Ambient Temperature at 20°C | ||||
| ||||

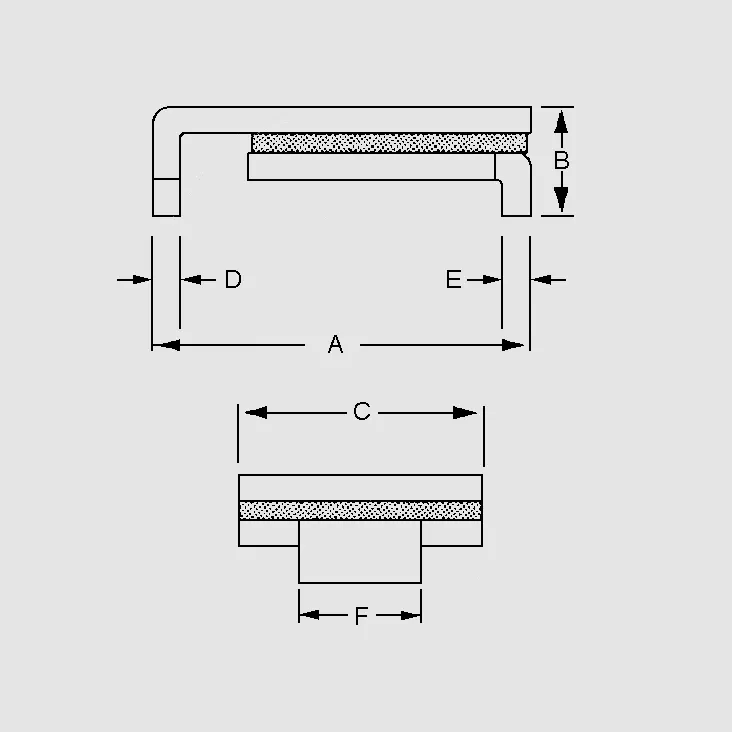

| Dimensions |
| Part Nr. | AMax | BMax | CMax | DMin | EMin | FMin |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |
| SMD030F-2 | 7,98 | 3,18 | 5,44 | 0,56 | 0,56 | 2,16 |
| SMD050F-2 | 7,98 | 3,18 | 5,44 | 0,56 | 0,20 | 2,16 |
| SMD075F-2 | 7,98 | 3,18 | 5,44 | 0,56 | 0,56 | 2,16 |
| SMD100F-2 | 7,98 | 3,0 | 4,8 | 0,56 | 0,56 | 2,16 |
| SMD125F-2 | 7,98 | 3,0 | 4,8 | 0,56 | 0,56 | 2,16 |
| SMD150F-2 | 9,4 | 3,0 | 6,0 | 0,56 | 0,56 | 3,68 |
| SMD185F-2 | 9,4 | 3,0 | 5,99 | 0,56 | 0,56 | 3,68 |
| SMD200F-2 | 9,4 | 3,0 | 6,71 | 0,56 | 0,56 | 3,68 |
| ||||||
| Note |
| • These components are protected against overcurrent and overtemperature; not for continuous repeatable switching operations. • The valid VDE regulations must be observed when handling products which come into contact with electrical voltage. |
|
| Approvals |
   |
|
| Terms of Delivery |
| Minimum order quantity:1 PKU = 10 pieces Original packing 0,3A...1,25A:1 PKU = 2000 pieces, taped 1,5A...2,0A:1 PKU = 1500 pieces, taped |
|
| Manufacturer |
| TE Connectivity http://www.te.com |
|
