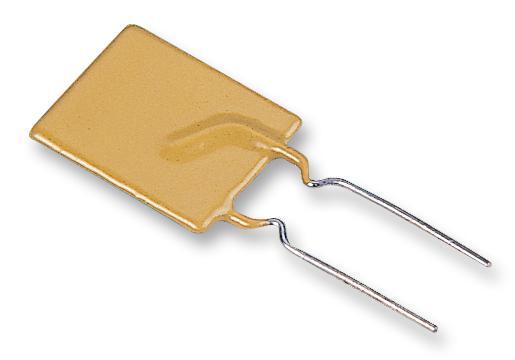

PolySwitch Resettable Device 16V 5,00A
Varenummer:
93-233
Varekode:
RGEF500
Vægt:
10 g
Lagerstatus:
Ikke på lager
| Features |
| • Polymer PTC body, small compact size • Resettable switching device • Low current loss due to a low resistance in normal use The PolySwitch device is a resettable switching device made from a polymer blend. The mode of action is based on the PTC effect. In standard use, the resistance of the PolySwitch device is very low so that only a small power loss arises. In the event of an error, short-circuit or overcurrent, the resistance value of this device increases and protects the equipment. After eliminating the error and switching off the supply voltage, the PolySwitch device quickly returns to its low impedance state. |
 |
| Application |
| • Computers and general electronics up to a maximum voltage of 16V |
|
| Technical Specifications |
| |
| Operating Voltage, Max.: | 16V |
| Interrupting Current, Max.: | 100A |
| Temperature Range: | -40...+85°C |
| |
| Part Nr. | IN | R1max | tTrip Current / Is | Amax | Bmax |
| � | [A] | [W] | [s] / [A] | [mm] | [mm] |
| RGEF300 | 3,0 | 0,098 | B | 7,1 | 11,0 |
| RGEF500 | 5,0 | 0,034 | D | 10,4 | 14,3 |
| IN = Rated Current, R1max. = 1 Hour Post-Trip Resistance Standard Trip, tTrip Current = Minimum Current a Device will Trip at Given Reference Current IS | |||||
| |||||
| Note |
| These components are protected against overcurrent and overtemperature; not for continuous repeatable switching operations. The valid VDE regulations must be observed when handling products which come into contact with electrical voltage. |
|
| Approvals |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces Original packing: 1 PKU = 500 pieces, bulk |
|
| Manufacturer |
 |
| http://www.circuitprotection.com |
|
