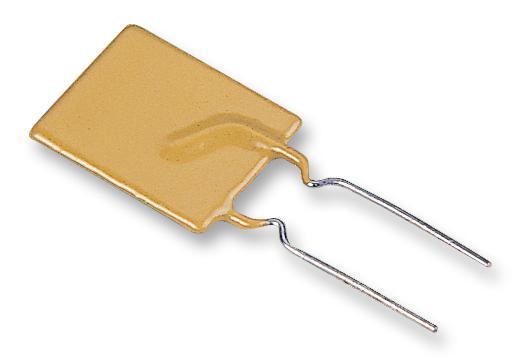

PolySwitch Resettable Device 30V 7,00A

Varenummer:
93-227
Varekode:
RUEF700
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 14,94 14.94 DKK kr 14,94 Inklusiv moms

kr 14,94 Inklusiv moms

Anmod os om en pris

v/10
Kr. 9,34
v/25
Kr. 7,79
v/100
Kr. 6,23
v/1000
Kr. 4,68

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/54660/image_1920?unique=5f2fec2 https://elektroniklavpris.odoo.com/web/image/product.template/54660/image_1920?unique=5f2fec2
Features
• Polymer PTC body, small compact size
• Resettable switching device
• Low current loss due to low resistance in normal use
The polyswitch device is a resettable switching device made from a polymer blend. The mode of action is based on the PTC effect.
In standard use, the resistance of the PolySwitch device is very low so that only a small power loss arises. In the event of an error, e.g. short-circuit or overcurrent, the resistance value of this device increases and protects the equipment. After eliminating the error and switching off the supply voltage, the PolySwitch device quickly returns to a low impedance state.
Application
The RUEF-series is suitable for use in many general electronic applications. It completes the RXEF-series (see E1221) with its small form, low resistance and limiting no-damage current.
Technical Specifications
Operating Voltage, Max.:
 30V
Interrupting Current, Max.:
 40A
Temperature Range:
 -40...+85°C
Part Nr.
 IN
 R1max.
 tTrip Current
 Amax.
 Bmax.
 Cnom.
  [A]
 [W]
 [s]
 [mm]
 [mm]
 [mm]
RUEF090 0,9
 0,22
 A
 7,4
 12,2
 5,08
RUEF110 1,10
 0,17
 B
 7,4
 14,2
 5,08
RUEF135 1,35
 0,13
 C
 8,9
 13,5
 5,08
RUEF160 1,60
 0,11
 D
 8,9
 15,2
 5,08
RUEF185 1,85
 0,09
 E
 10,2
 15,7
 5,08
RUEF250 2,50
 0,07
 F
 11,4
 18,3
 5,08
RUEF300 3,00
 0,08
 G
 11,4
 16,5
 5,08
RUEF400 4,00
 0,05
 H
 14,0
 19,3
 5,08
RUEF500 5,00
 0,05
 I
 14,0
 24,1
 10,2
RUEF600 6,00
 0,04
 J
 16,5
 24,1
 10,2
RUEF700 7,00
 0,03
 K
 19,1
 25,9
 10,2
RUEF800 8,00
 0,02
 L
 21,6
 28,4
 10,2
RUEF900 9,00
 0,02
 M
 24,1
 29,0
 10,2
IN = Rated Current, R1max. = 1 Hour Post-Trip Resistance Standard Trip, tTrip Current = Minimum Current a Device will Trip at Given Reference Current IS at 20°C
Approvals

Manufacturer

http://www.circuitprotection.com
