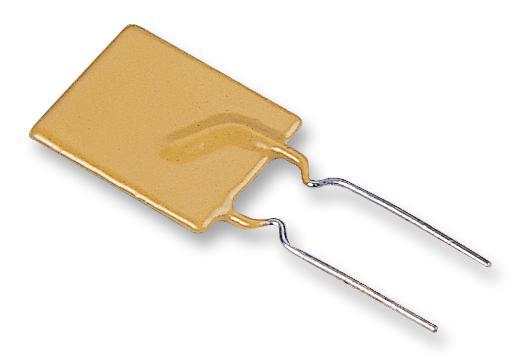

PolySwitch Resettable Device 30V 1,35A
Varenummer:
93-219
Varekode:
RUEF135
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
E1222
TE PolySwitch Resettable Devices
Series: RUEF
Radial
Rated Current: 0,9A to 9,0A
TE PolySwitch Resettable Devices
Series: RUEF
Radial
Rated Current: 0,9A to 9,0A
| Features |
| • Polymer PTC body, small compact size • Resettable switching device • Low current loss due to low resistance in normal use The PolySwitch device is a resettable switching device made from a polymer blend. The mode of action is based on the PTC effect. In standard use, the resistance of the PolySwitch device is very low so that only a small power loss arises. In the event of an error, e.g. short-circuit or overcurrent, the resistance value of this device increases and protects the equipment. After eliminating the error and switching off the supply voltage, the PolySwitch device quickly returns to a low impedance state. |
 |
| Application |
| The RUEF-series is suitable for use in many general electronic applications. It completes the RXEF-series (see E1221) with its small form, low resistance and limiting no-damage current. |
|
| Technical Specifications |
| |
| Operating Voltage, Max.: | 30V |
| Interrupting Current, Max.: | 40A |
| Temperature Range: | -40...+85°C |
| |
| Part Nr. | IN | R1Max | tTrip Current | AMax | BMax | CNom |
| [A] | [W] | [s] | [mm] | [mm] | [mm] | |
| RUEF090 | 0,9 | 0,22 | A | 7,4 | 12,2 | 5,08 |
| RUEF110 | 1,1 | 0,17 | B | 7,4 | 14,2 | 5,08 |
| RUEF135 | 1,35 | 0,13 | C | 8,9 | 13,5 | 5,08 |
| RUEF160 | 1,6 | 0,11 | D | 8,9 | 15,2 | 5,08 |
| RUEF185 | 1,85 | 0,09 | E | 10,2 | 15,7 | 5,08 |
| RUEF250 | 2,5 | 0,07 | F | 11,4 | 18,3 | 5,08 |
| RUEF300 | 3,0 | 0,08 | G | 11,4 | 16,5 | 5,08 |
| RUEF400 | 4,0 | 0,05 | H | 14,0 | 19,3 | 5,08 |
| RUEF500 | 5,0 | 0,05 | I | 14,0 | 24,1 | 10,2 |
| RUEF600 | 6,0 | 0,04 | J | 16,5 | 24,1 | 10,2 |
| RUEF800 | 8,0 | 0,02 | L | 21,6 | 28,4 | 10,2 |
| RUEF900 | 9,0 | 0,02 | M | 24,1 | 29,0 | 10,2 |
| IN = Rated Current, R1Max = 1 Hour Post-Trip Resistance Standard Trip, tTrip Current = Minimum Current a Device will Trip at Given Reference Current IS at 20°C | ||||||
| ||||||
| Note |
| • These components are protected against overcurrent and overtemperature; not for continuous repeatable switching operations. • The valid VDE regulations must be observed when handling products which come into contact with electrical voltage. |
|
| Approvals |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces Original packing: 0,9A...4,0A: 1 PKU = 500 pieces, bulk 5,0A...9,0A: 1 PKU = 250 pieces, bulk |
|
| Manufacturer |
| TE Connectivity http://www.te.com |
|
