  5. Relay DPDT 10/20A 24V 900R AgNi 44.62.9.024.0000

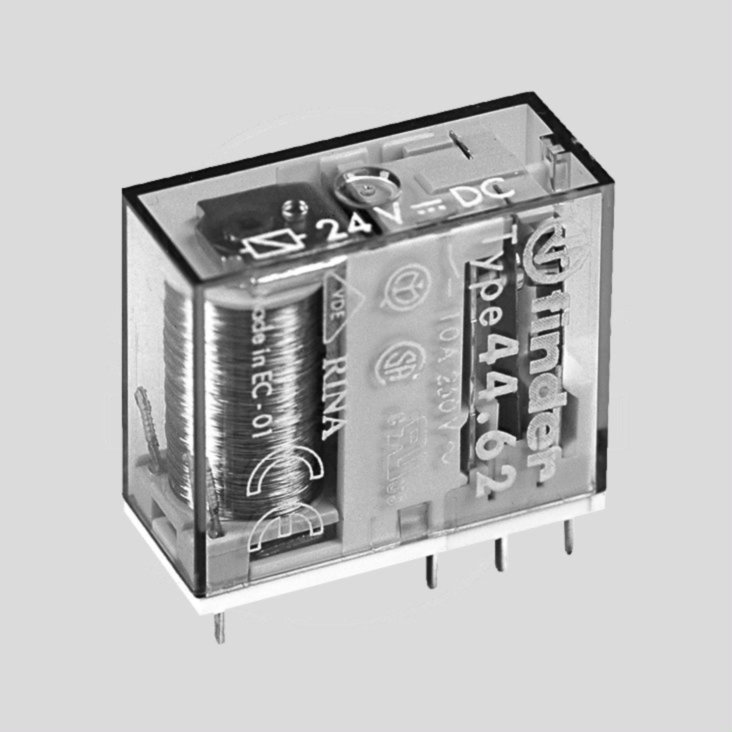

Relay DPDT 10/20A 24V 900R AgNi 44.62.9.024.0000

Varenummer:
93-192
Varekode:
F4462-24
Vægt:
20 g
Lagerstatus:
Ikke på lager

kr 42,00 42.0 DKK kr 42,00 Inklusiv moms

kr 42,00 Inklusiv moms

Anmod os om en pris

v/10
Kr. 50,00
v/25
Kr. 47,50
v/100
Kr. 43,75
v/1000
Kr. 37,50

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/54625/image_1920?unique=864978b https://elektroniklavpris.odoo.com/web/image/product.template/54625/image_1920?unique=864978b
GROUP:E6455
Gruppe: E6455
FINDER PCB Relays
Series: 44.62
Contact: DPDT
Rated Current: 10A

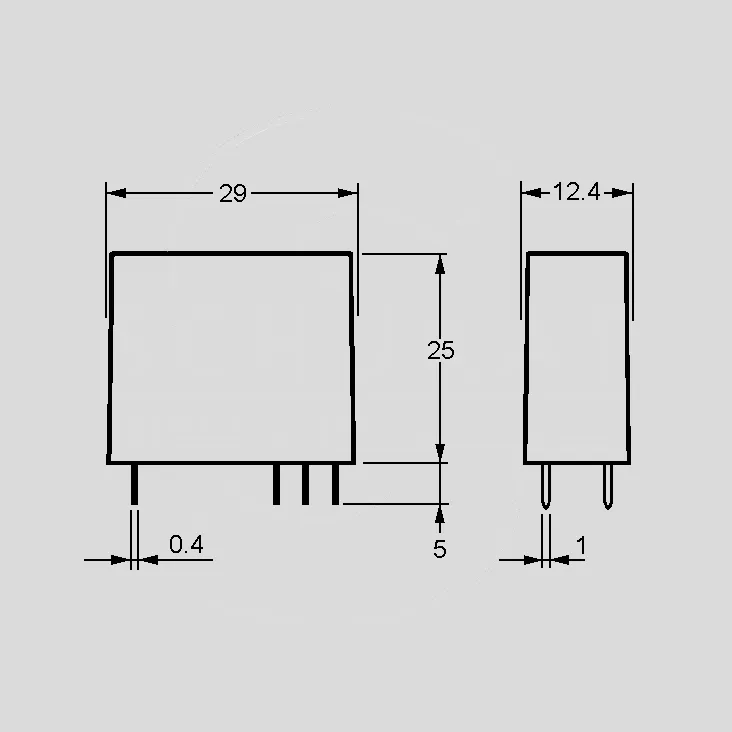

Housing: 29,0x12,4x25,0mm
Features
• Contact rating up to 10A, 250V AC
• Insertion for secure separation between coil and contacts (see Norm)
• High insulation resistance between the switching contacts, ideal for switching various voltages
• Relay protection class RTII
Technical Specifications
Contact:
 DPDT
Contact Material
F4462_:
 AgNi
F4462_C:
 AgSnO2
Rated Current:
 10A
Max. Switching Current:
 20A
Max. Switching Voltage:
 400V AC
Max. Switching Power:
 2500VA
Creepage/Clearance:
 8/8mm
Operate/Release Time:
 8/5ms
Testing Voltage
Coil/Contact:
 6000V
Opening Contact:
 1000V
Lifetime
Mechanical:
 20x106 Operations
Electrical:
 10x104 Operations
Operating Temperature:
 -40...+85°C
Coil Data
Part Nr.
 UN
 Umin.
 Umax.
 IN
 PN
 RN
  [V DC]
 [V]
 [V]
 [mA]
 [mW]
 [W]
F4462-12_ 12
 8,8
 18
 55
 650
 220
F4462-24_ 24
 17,5
 36
 27
 650
 900
UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C
Note
• Assembly by direct soldering into the PCB or
• PCB socket F95152 with retaining clip F9551SW resp. F95523, see product group E6481, or
• DIN rail socket F95853 resp. F95953 with retaining clip F95913, see product group E6485
Norms
The series complies with VDE0160/EN50178 and VDE0700/EN60335 secure separation between coil and contacts.
Labelling

Approvals

Terms of Delivery
Minimum order quantity: 1 PKU = 10 pieces
Manufacturer

http://www.findernet.com
