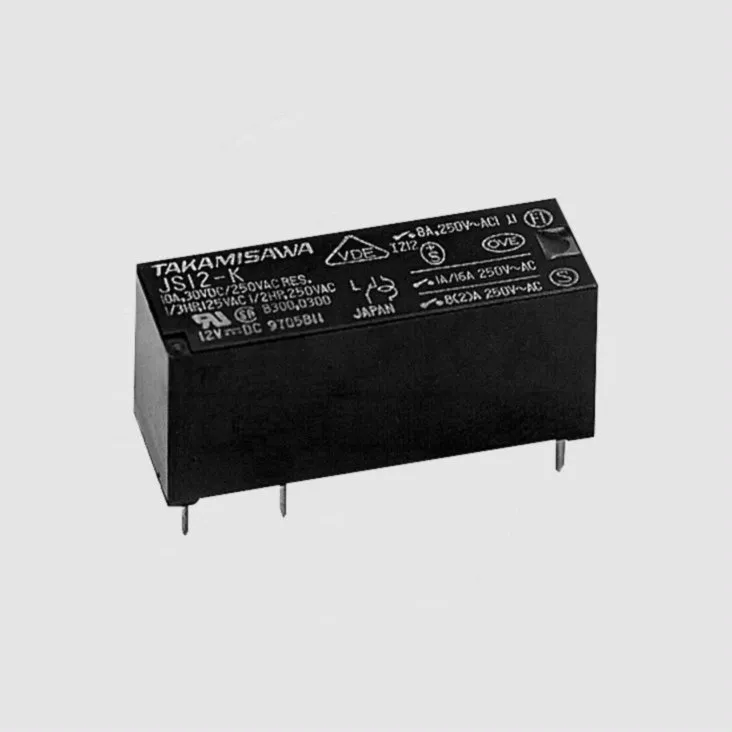

Relay SPDT 8A 12V 660R P3,2
Varenummer:
93-170
Varekode:
JS12NK
Vægt:
10 g
Lagerstatus:
Lager: 15 stk.
Gruppe: E6357
| Anvendelse | Effekt | |

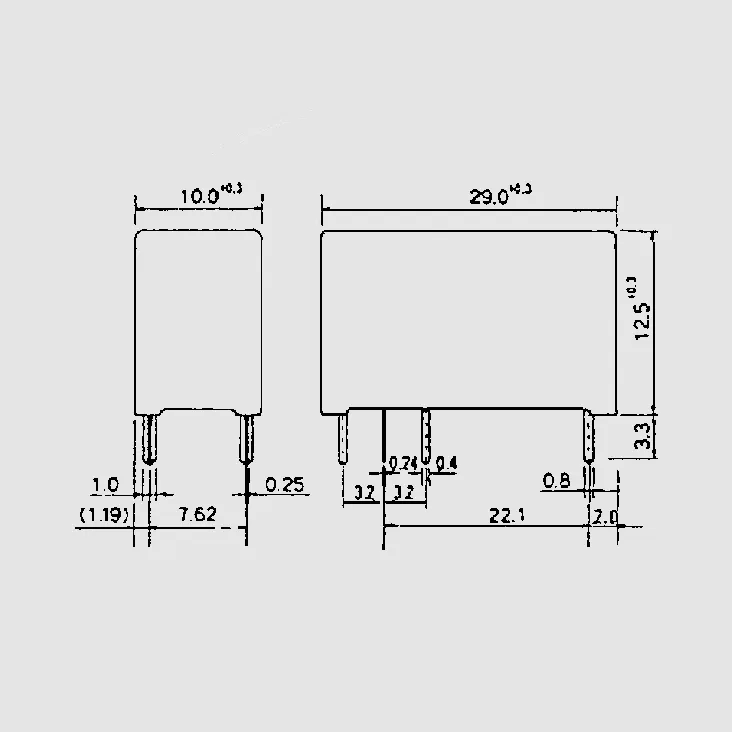

| Dybde | 10mm | |
| Højde | 12.5mm | |
| Isolation mellem spole og kontakt | 10000V | |
| Kontaktkonfiguration | 1-polet skifte | |
| Kontaktmateriale | Sølv tinoxid forgyldt | |
| Længde | 29mm | |
| Maks. driftstemperatur | +85°C | |
| Maks. kontakteffekt | 192 W | |
| Maks. kontakteffekt AC | 2000 VA | |
| Maks. kontaktspænding AC | 400V ac | |
| Maks. kontaktspænding DC | 300V dc | |
| Min. driftstemperatur | -40°C | |
| Monteringstype | Hulmontering | |
| Spoleeffekt | 220mW | |
| Spolemodstand | 660 Ω | |
| Spolespænding | 12V | |
| Tilslutningstype | Lodde |
Features
| • Low profile and space saving • High sensitivity: 220...290mW • Operating power 110...140mW • High insulation: 8mm between coli and contacs |
 |
| Technical Specifications |
|
|
| Contact | |
| JS_NK | SPDT |
| JS_MNKT: | SPST-NO |
| Contact Material: | AgSnO2+Au |
| Rated Current: | 8A |
| Max. Switching Current: | 10A |
| Max. Switching Voltage: | 400V AC / 150V DC |
| Max. Switching Power: | 2000VA / 192W |
| Creepage/Clearance: | 8/8mm |
| Operate/Release Time: | 10/5ms |
| Testing Voltage | |
| Coil/Contact: | 5000V AC |
| Opening Contact: | 1000V AC |
| Lifetime | |
| Mechanical,Min.: | 20x106 Operations |
| Electrical, Min.: | 50x103 Operations |
| Operating Temperature: | -40...+85°C |
| Weight Approx.: | 8g |
|
|
| Coil Data |
| Part Nr. | UN | UAn | UAb | PN | RN |
| [V DC] | [V] | [V] | [mW] | [Ohm] | |
| JS5NK | 5 | 3,5 | 0,5 | 225 | 112 |
| JS12NK | 12 | 8,5 | 1,2 | 220 | 660 |
| JS24NK | 24 | 16,8 | 2,4 | 245 | 2350 |
| JS5MNKT | 5 | 3,5 | 0,5 | 225 | 112 |
| JS12MNKT | 12 | 8,5 | 1,2 | 220 | 660 |
| JS24MNKT | 24 | 16,8 | 2,4 | 245 | 2350 |
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | |||||
Stregkode:
790-3353
Intern reference:
93170
Varekode:
JS12NK
