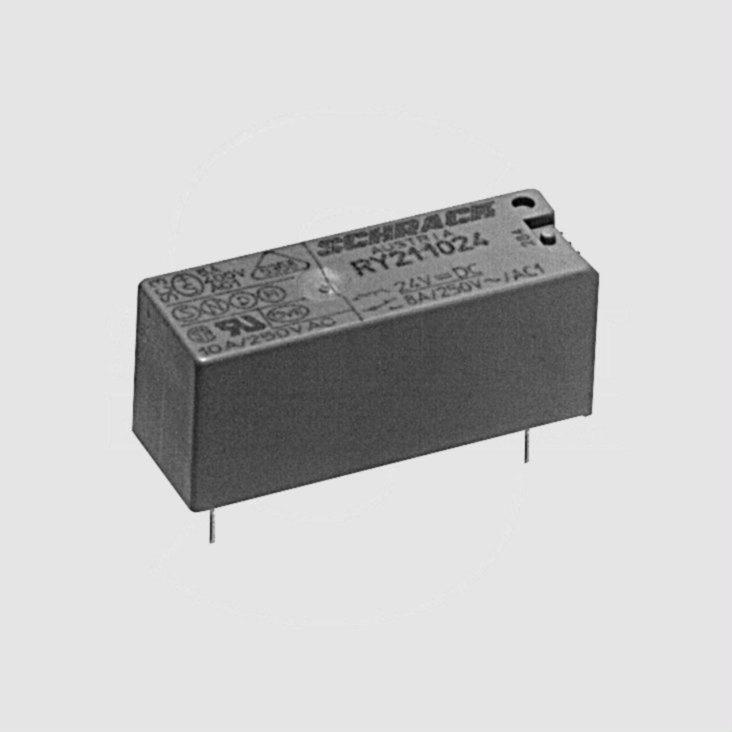

Relay SPDT 8A 12V 620R
Varenummer:
93-166
Varekode:
RYII012
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe:
E6353
TE Power PCB Relays
Series: RYII
Contact: SPDT
Rated Current: 8A

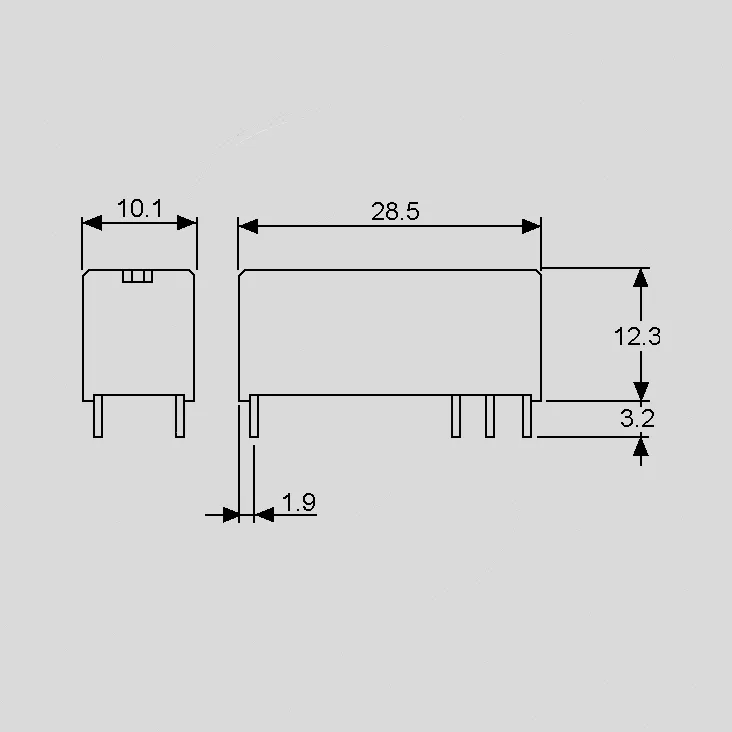

Housing: 28,5x10,1x12,3mm
TE Power PCB Relays
Series: RYII
Contact: SPDT
Rated Current: 8A
Housing: 28,5x10,1x12,3mm
| Features |
| • Sensitive coil: 220...250mW • Operating power: approx. 100mW • Test voltage: 5kV/8mm • Flux proof RTII |
 |
| Technical Specifications |
| |
| Contact: | SPDT (Single) |
| Contact Material | AgNi 0,15 |
| Rated Current: | 8A |
| Max. Switching Voltage: | 400V AC |
| Max. Switching Power: | 2000VA |
| Creepage/Clearance: | ³8/8mm |
| Operate/Release Time: | 9/5ms |
| Testing Voltage | |
| Coil/Contact: | 5000Vrms |
| Opening Contact: | 1000Vrms |
| Lifetime | |
| Mechanical: | 30x106 Operations |
| Electrical (6A, 250 VAC): | 1x105 Operations |
| Operating Temperature: | -40...+70°C (85°C at 6A) |
| Weight Approx.: | 8g |
| |
| Coil Data |
| Part Nr. | UN | UAn | UAb | PN | RN |
| [V DC] | [V] | [V] | [mW] | [W] | |
| RYII012 | 12 | 8,4 | 1,2 | 230 | 627 |
| RYII024 | 24 | 16,8 | 2,4 | 245 | 2350 |
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | |||||
| |||||
| Approvals |
  |
|
| Additional Products |
| We can also supply on request (minimum order quantity 500 pieces, delivery time 12 weeks): • Relays with 5V, 6V and 48V rated voltage • Watertight relays |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| TE Connectivity http://www.te.com |
|
