Relay SPDT 10A 12V 580R AgSnO2 43.41.7.012.4000
Varenummer:
93-164
Varekode:
F4341-12S
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe:
E6351
FINDER Power PCB Relays
Series: 43.41
Contact SPDT
Rated Current: 10A

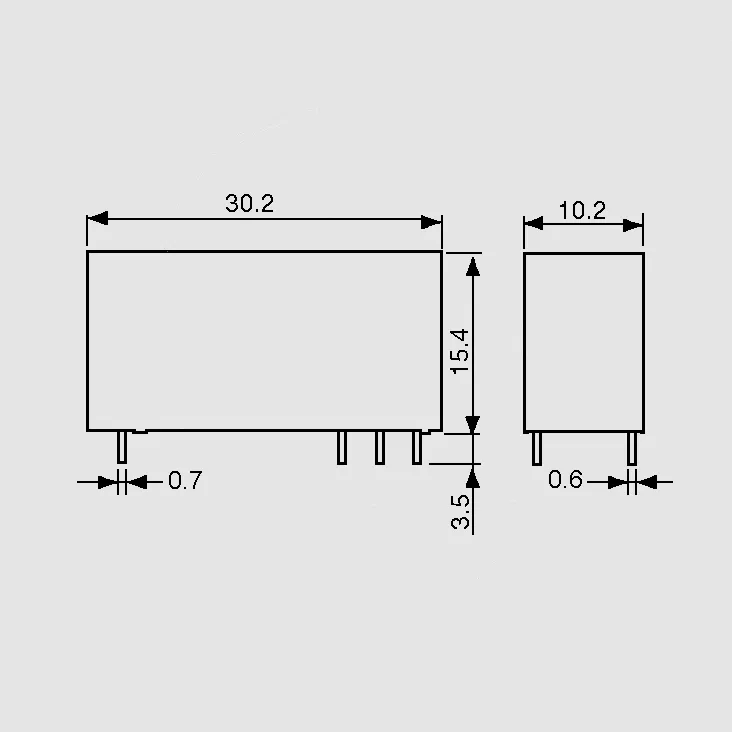

Housing: 30,2x10,2x15,4mm
E6351
FINDER Power PCB Relays
Series: 43.41
Contact SPDT
Rated Current: 10A
Housing: 30,2x10,2x15,4mm
| Features |
| • Very low coil consumption, 250mW • Protective separation between coil and contact according to VDE0160, EN50178, EN60204 and EN60335 • Insulation voltage: 6kV • Flux proof: RTII |
 |
| Technical Specifications |
| |
| Contact: | SPDT |
| Contact Material | |
| F4341-_C: | AgCdO |
| F4341-_S: | AgSnO2 |
| Rated Current: | 10A |
| Max. Switching Current | |
| F4341-_C: | 15A (0,5s) |
| F4341-_S: | 80A (5ms) |
| Max. Switching Voltage: | 400V AC |
| Max. Switching Power | |
| AC1: | 2500VA |
| AC15 (230V AC): | 500VA |
| Creepage/Clearance: | 10/10mm |
| Operate/Release Time: | 6/4ms |
| Testing Voltage | |
| Coil/Contact: | 6000V AC |
| Opening Contact: | 1000V AC |
| Lifetime | |
| Mechanical: | 10x106 Operations |
| Electrical: | 10x104 Operations |
| Operating Temperature: | -40...+85°C |
| |
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | PN | RN |
| [V DC] | [V] | [V] | [mA] | [mW] | [W] | |
| F4341-12C | 12 | 8,4 | 18 | 20,7 | 250 | 580 |
| F4341-24C | 24 | 16,8 | 36 | 10,9 | 250 | 2200 |
| F4341-12S | 12 | 8,4 | 18 | 20,7 | 250 | 580 |
| F4341-24S | 24 | 16,8 | 36 | 10,9 | 250 | 2200 |
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | ||||||
| ||||||
| Note |
| We do not recommend ultrasonic cleaning. |
|
| Approvals |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
