  6. Relay SPDT 10A 12V 580R AgCdO 43.41.7.012.2000

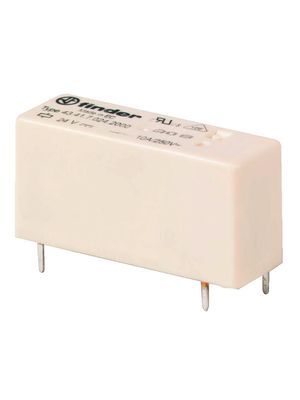

Relay SPDT 10A 12V 580R AgCdO 43.41.7.012.2000

Varenummer:
93-162
Varekode:
F4341-12C
Vægt:
10 g
Lagerstatus:
Lager: 21 stk.

kr 22,00 22.0 DKK kr 22,00 Inklusiv moms

kr 22,00 Inklusiv moms

Anmod os om en pris

v/10
Kr. 26,25
v/50
Kr. 25,00

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/54595/image_1920?unique=864978b https://elektroniklavpris.odoo.com/web/image/product.template/54595/image_1920?unique=864978b
Gruppe:
E6351

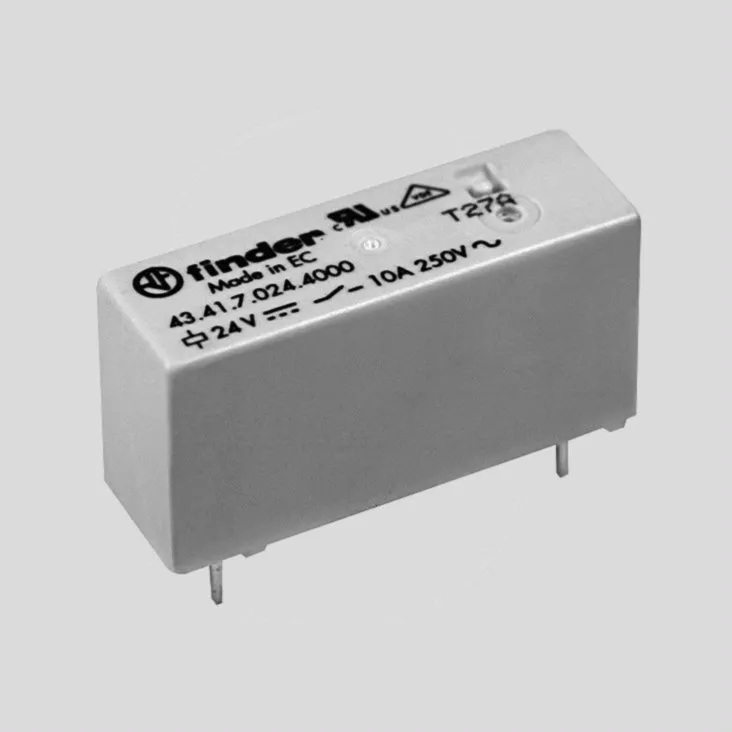

FINDER Power PCB Relays
Series: 43.41
Contact SPDT
Rated Current: 10A
Housing: 30,2x10,2x15,4mm
Features
• Very low coil consumption, 250mW
• Protective separation between coil and contact according to VDE0160, EN50178, EN60204 and EN60335
• Insulation voltage: 6kV
• Flux proof: RTII
Technical Specifications
Contact:
SPDT
Contact Material
F4341-_C:
AgCdO
F4341-_S:
AgSnO2
Rated Current:
10A
Max. Switching Current
F4341-_C:
15A (0,5s)
F4341-_S:
80A (5ms)
Max. Switching Voltage:
400V AC
Max. Switching Power
AC1:
2500VA
AC15 (230V AC):
500VA
Creepage/Clearance:
10/10mm
Operate/Release Time:
6/4ms
Testing Voltage
Coil/Contact:
6000V AC
Opening Contact:
1000V AC
Lifetime
Mechanical:
10x106 Operations
Electrical:
10x104 Operations
Operating Temperature:
-40...+85°C
Coil Data
Part Nr.
UN
Umin.
Umax.
IN
PN
RN
[V DC]
[V]
[V]
[mA]
[mW]
[W]
F4341-12C12
8,4
18
20,7
250
580
F4341-24C24
16,8
36
10,9
250
2200
F4341-12S12
8,4
18
20,7
250
580
F4341-24S24
16,8
36
10,9
250
2200
UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C
Note
We do not recommend ultrasonic cleaning.
Approvals

Terms of Delivery
Minimum order quantity: 1 PKU = 10 pieces
Manufacturer

http://www.findernet.com
