SNR-Relæ 1xU 6A 12VDC 848R
Varenummer:
93-160
Varekode:
V23092-A1012-A301
Vægt:
10 g
Lagerstatus:
Lager: 11 stk.
Gruppe: E6315
TE Power PCB Relays
Series: SNR

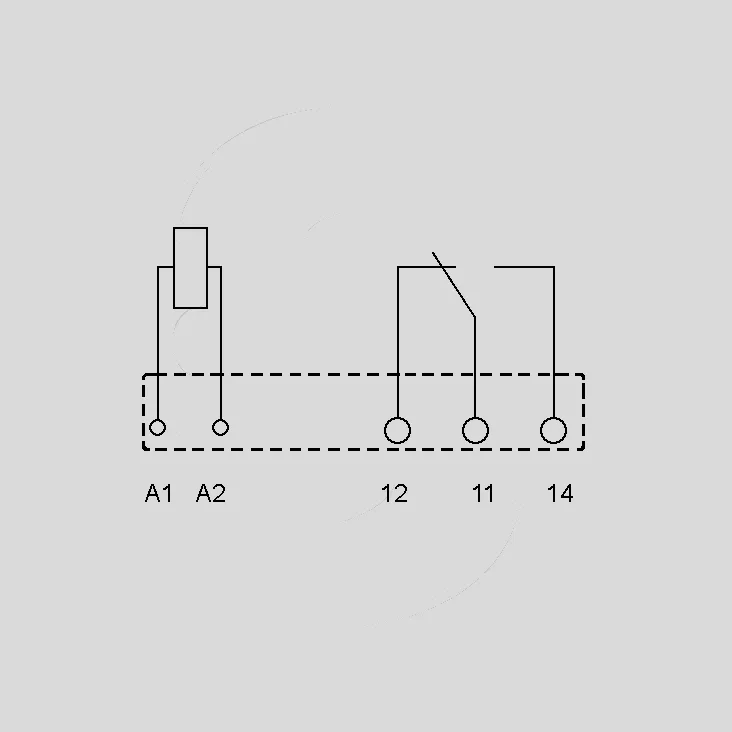

Contact: SPDT
Rated Currrent: 6A
Housing: 28,0x5,0x15,0mm
| Features |
| • Ultra-slim: 5mm • Cadmium-free contacts • Sensitive coil 170mW • 4kV coil contact, 6/8mm clearance/creepage • Protection class II (VDE0631) |
 |
| Application |
| Centralised and decentralised heating control, extremely narrow interface elements, interface technology, timers, PLC's, I/O modules |
|
| Technical Specifications |
|
|||||||||||||||||||||||||||||||||||||
| Contact: | SPDT | Contact Material: | V23092_G: | AgSnO2 Gold Plated | V23092_: | AgSnO2 | Rated Current: | 6A | Max. Switching Current: | 10A | Max. Switching Voltage: | 400V AC | Max. Switching Power: | 1500VA | Creepage/Clearance: | 6/8mm | Operate/Release Time: | 10/5ms | Testing Voltage | Coil/Contact: | 4000Vrms | Opening Contact: | 1000Vrms | Lifetime | Mechanical: | 10x106 Operations | Electrical (5A/250V AC): | 10x103 Operations | Operating Temperature: | -40...+85°C | Weight Approx.: | 6g | |||||
|
|||||||||||||||||||||||||||||||||||||
| Coil Data |
| Part Nr. | UN | UAn | UAb | PN | RN | [V DC] | [V] | [V] | [mW] | [W] | V23092-12G | 12 | 8,4 | 0,6 | 170 | 848 | V23092-24G | 24 | 16,8 | 1,2 | 170 | 3390 | V23092-12 | 12 | 8,4 | 0,6 | 170 | 848 | V23092-24 | 24 | 16,8 | 1,2 | 170 | 3390 | |||||||
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 23°C | |||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
| TE Connectivity http://www.te.com |
|
Stregkode:
93160
Intern reference:
93160
Varekode:
V23092-A1012-A301
