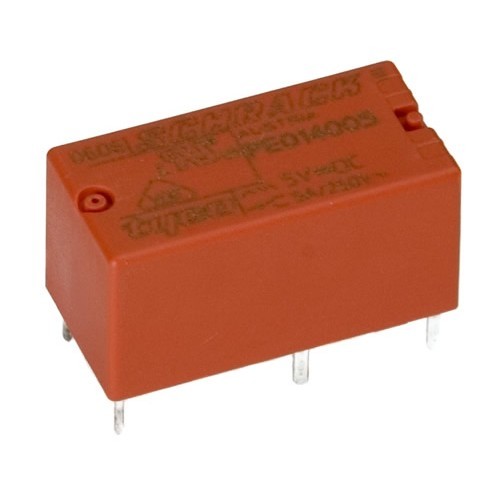

Relay SPDT 5A 5V 125R
Varenummer:
93-150
Varekode:
PE140-5
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe: E6335
TE Power PCB Relays
Series: PE
Contact: SPDT
Rated Current: 5A
Housing: 20,0x10,0x10,0mm
PE014005
| Features |
| • Flux proof type RTII • Cadmium-free contacts • Sensitive coil 200mV • 4kV dielectric strength coil/contact • Insulation according to IEC60664-1 |
 |
| Application |
| Industrial electronics, white goods, measurement and control |
|
| Technical Specifications |
|
|||||||||||||||||||||||||||||||
| Contact: | SPDT (Single Contact) | Contact Material: | AgNi 90/10 | Rated Current: | 5A | Max. Switching Voltage: | 400V AC | Max. Switching Power: | 1250VA | Creepage/Clearance: | ³3,2/4mm | Operate/Release Time: | 8/8ms | Testing Voltage | Coil/Contact: | 4000Vrms | Opening Contact: | 1000Vrms | Lifetime | Mechanical: | 15x106 Operations | Electrical: | 1x105 Operations | Operating Temperature: | -40...+85°C | Weight Approx.: | 5g | ||||
|
|||||||||||||||||||||||||||||||
| Coil Data |
| Part Nr. | UN | UAn | UAb | PN | RN | [V DC] | [V] | [V] | [mW] | [W] | PE140-5 | 5 | 3,8 | 0,5 | 200 | 125 | PE140-12 | 12 | 9,0 | 1,2 | 210 | 685 | PE140-24 | 24 | 18,0 | 2,4 | 211 | 2725 | |||||||
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 23°C | |||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| TE Connectivity http://www.te.com |
|
Stregkode:
93150
Intern reference:
93150
Varekode:
PE140-5
