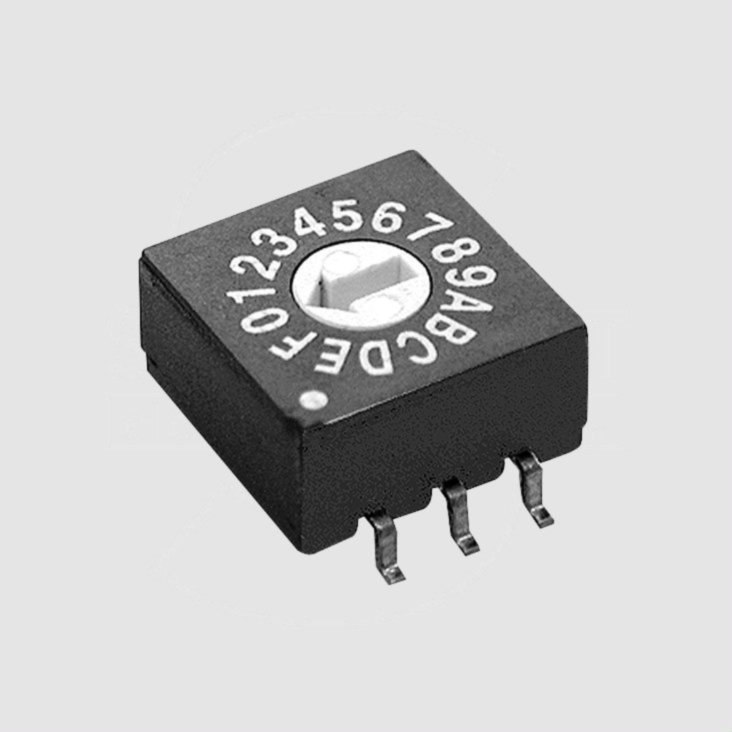

SMD Rotary Switch 16-Pole Hex Real
Varenummer:
93-132
Varekode:
ERD116RMZ-SMD
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe: E2553
ECE SMD Rotary Switches
Series: ERD116R_-SMD
Type: Standard SMD

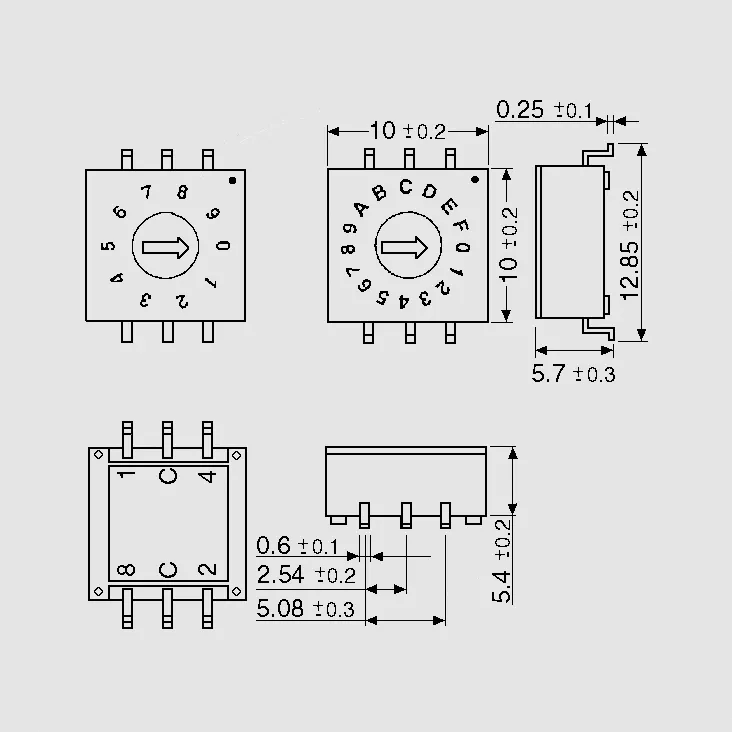

Pitch: 2,54mm
RRD-16-10
RRD16-10KS
| Features |
| • Sealed terminals • Flux sealed version • Insulation material UL94V-0 approved • 16 switching points • Hexadecimal coding |
 |
| Electrical Specifications |
|
|||||||||||||
| Switching Capacity, Max.: | 25mA/24V DC | Transmission Current, Max.: | 100mA/50V DC | Contact Resistance, Max.: | 100mW | Insulation Resistance (100V DC), Min.: | 1000MW | Dielectric Strength, Min.: | 250V AC/1min. | Mechanical Life, Min.: | 2000 Steps/Position | ||
|
|||||||||||||
| Technical Specifications |
|
|||||||||||||||||
| Insulation Material: | Glass Filled PBT | Contact Finish: | Cu Alloy, Gold Over Nickel | Solder Pin: | Cu-Alloy, Tin Over Nickel | Operating Temperature: | -25...+70°C | Storage Temperature: | -40...+85°C | Operating Force, Max.: | 500gf/cm | Stand Time: | 2x104 Without Load | Vibration Test: | MIL-STD-202F, Method 204D | ||
|
|||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces Form of delivery: Tube |
|
| Manufacturer |
| ECE http://www.ece.com.tw |
|
Stregkode:
93132
Intern reference:
93132
Varekode:
ERD116RMZ-SMD
