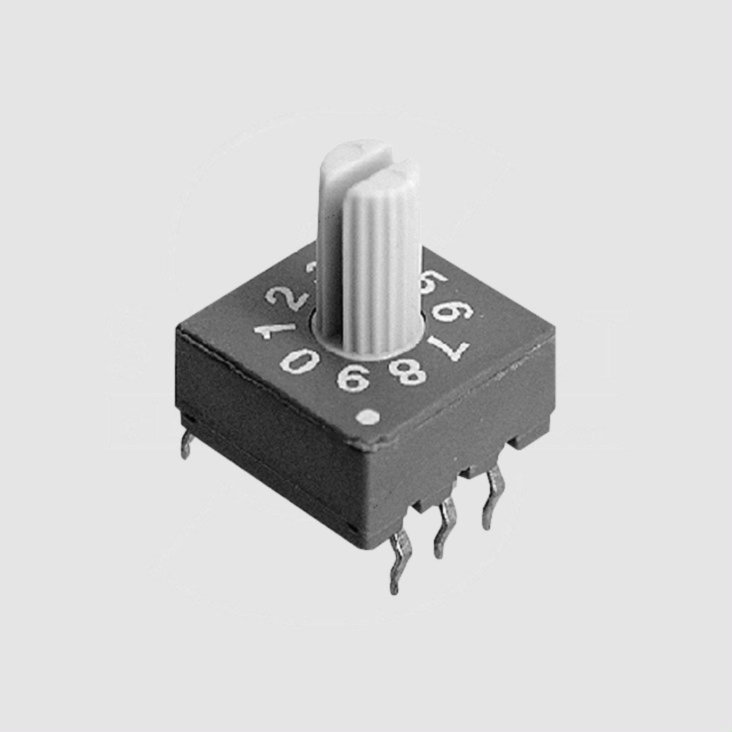

Rotary Switch 10-Pole Bin Real
Varenummer:
93-130
Varekode:
ERD210RSZ
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
E2551
ECE Rotary Switches
Series: ERD
Type: Standard
Pitch: 2,54mm
ECE Rotary Switches
Series: ERD
Type: Standard
Pitch: 2,54mm
| Features |
| • Sealed terminals • Flux sealed version • Insulation material UL94V-0 approved • 10 and 16 switching points • Binary and hexadecimal coding |
 |
| Electrical Specifications |
| |
| Switching Capacity, Max.: | 25mA/24V DC |
| Transmission Current, Max.: | 100mA/50V DC |
| Contact Resistance, Max.: | 100mW |
| Insulation Resistance (100V DC), Min.: | 1000MW |
| Dielectric Strength, Min.: | 250V AC/1min. |
| Mechanical Life, Min.: | 2000 Steps/Position |
| |
| Technical Specifications |
| |
| Insulation Material: | Glass Filled PBT, |
| Contact Finish: | Cu Alloy, Gold Over Nickel |
| Solder Pin: | Cu Alloy, Tin-plated Over Nickel |
| Operating Temperature: | -25...+70°C |
| Storage Temperature: | -40...+85°C |
| Operating Force, Max.: | 500gf/cm |
| Stand Time: | 2x104 Without Load |
| Vibration Test: | MIL-STD-202F, Method 204D |
| |
| Selection Table |
| Part Nr. | Switching Points | Coding | Rotor Colour |
| ERD110RSZ | 10 | Binary, Real | White |
| ERD110CSZ | 10 | Binary, Complement | Red |
| ERD116RSZ | 16 | Hexad., Real | White |
| ERD116CSZ | 16 | Hexad., Complement | Red |
| ERD210RSZ | 10 | Binary, Real | White |
| ERD216RSZ | 16 | Hexad., Real | White |
| |||
| Additional Products |
| Rotating coding-switch with shaft control available on request, 1000 pieces upwards, delivery time approx. 6 weeks |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
| ECE http://www.ece.com.tw |
|
