DIP Switch IC 6-Pole
Varenummer:
93-119
Varekode:
EAH106EZ
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
E2515
ECE DIP/DIL Switches
Series: EAH
Type: IC
Pitch: 2,54mm
ECE DIP/DIL Switches
Series: EAH
Type: IC
Pitch: 2,54mm
| Features |
| • Can be assembled by any automatic IC inserter • Extended actuator • Bottom epoxy sealed against flux immersion |
 |
| Electrical Specifications |
| |
| Switching Capability: | 25mA/24V DC |
| Transmission Current: | 100mA/50V DC |
| Contact Resistance, Max. | |
| New State: | 50mW |
| After Operating Life Test: | 100mW |
| Insulation Resistance (100V DC), Min.: | 1000MW |
| Dielectric Strength, Min.: | 500V DC/1min. |
| Capacity of Adjacent Switch, Max.: | 5pF |
| |
| Technical Specifications |
| |
| Insulation Shell: | UL94V-0, Black |
| Solder Pin: | Tin-plated |
| Contact Finish: | Gold Over Nickel |
| Operating Temperature: | -25...+70°C |
| Storage Temperature: | -40...+85°C |
| Operating Force, Max.: | 800g |
| Switching Capability: | 2000 Operations |
| Air Humidity: | 95% RH, 40°C/96h |
| Vibration Test: | MIL-STD-202F, Method 204D |
| |

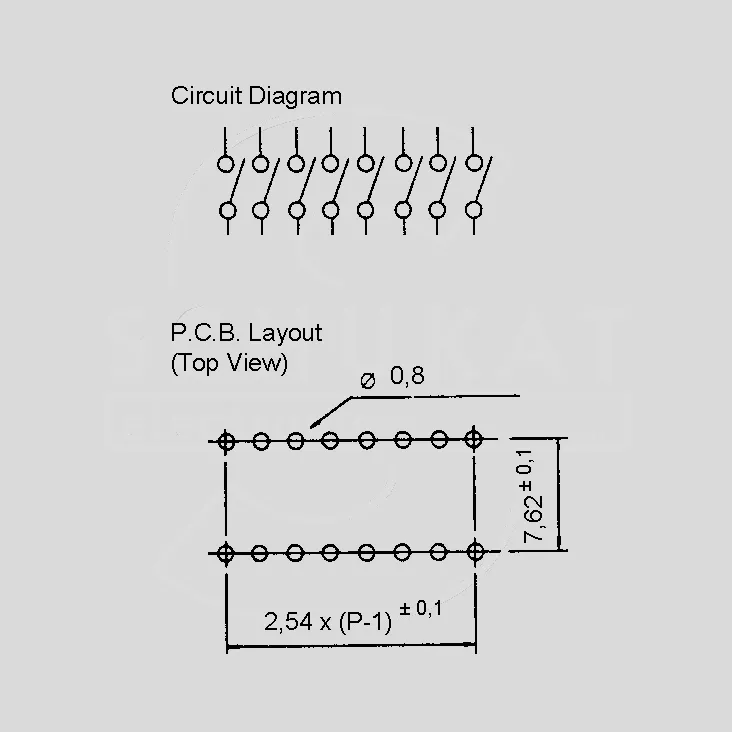

| Pitch |
| |
| Pitch: | 2,54mm |
| Spacing Between Rows: | 7,62mm |
| |
| Dimensions and Packing Units |
| Part Nr. | Switch | A | PKU |
| [mm] | [Single Unit/Tube] | ||
| EAH102EZ | 2 | 6,88 | 72 |
| EAH104EZ | 4 | 11,96 | 42 |
| EAH106EZ | 6 | 17,04 | 30 |
| EAH108EZ | 8 | 22,12 | 23 |
| EAH110EZ | 10 | 27,20 | 19 |
| |||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces Form of delivery: See "PKU" column |
|
| Manufacturer |
| ECE http://www.ece.com.tw |
|
Stregkode:
93119
Intern reference:
93119
Varekode:
EAH106EZ
