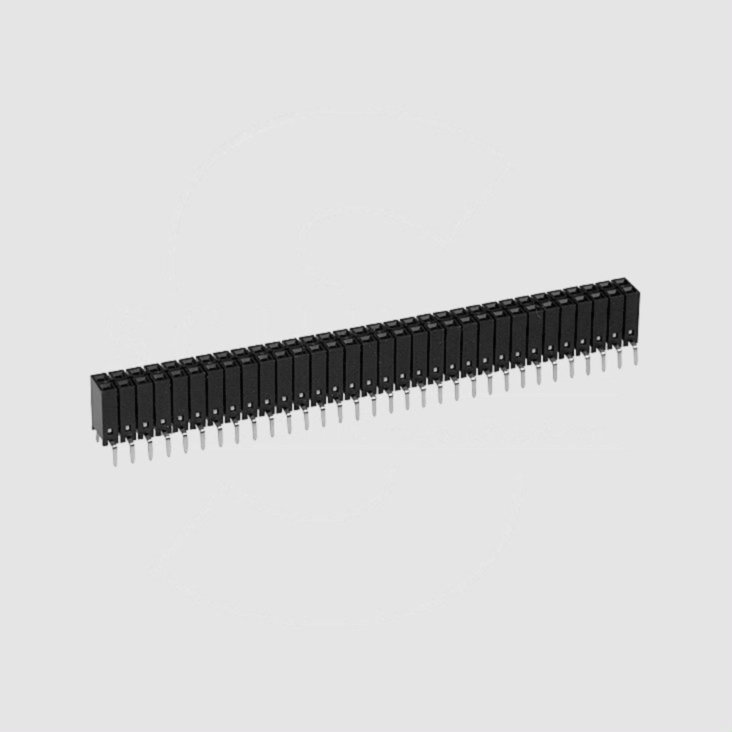

Female Header 2R Straight 2x32-Pole
Varenummer:
93-096
Varekode:
BLD2X32TG
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe:
F2825
MPE GARRY Female Headers
Series: BL1, BL2
Dual Entry Type, Single and Double Row, Straight
Height: 8,5mm
Pitch: 2,54mm
MPE GARRY Female Headers
Series: BL1, BL2
Dual Entry Type, Single and Double Row, Straight
Height: 8,5mm
Pitch: 2,54mm
| Features |
| • Selective flash gold-plated design • Suitable for square pins 0,635x0,635mm (1/40") • Arbitrary mounting |
 |
| Technical Specifications |
| |
| Insulation Shell: | Thermoplastic, UL94V-0 |
| Contact Material: | Phosphor-Bronze |
| Contact Shell: | Selectively Gold-plated |
| Rated Current: | 3A |
| Rated Voltage: | 250VRMS/250V DC |
| Dielectric Strength (1Min.): | 500V AC |
| Temperature Range: | -40...+105°C |
| Short Term (10s): | +260°C |
| Solderability: | IEC 68-2-20 Tb |
| |
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.mpegarry.de |
|
Stregkode:
93096
Intern reference:
93096
Varekode:
BLD2X32TG
