MKT Capacitor Y2 100nF 300V P22,5
Varenummer:
92-824
Varekode:
CFY100NF41
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe:
C5831
KEMET/ARCOTRONICS MKP Metallized Film Capacitor
Series: R.41
Class Y2
Style: Bulk
Rated Voltage: 300V AC
Tolerance: 20%
Pitch: 10...22,5mm
C5831
KEMET/ARCOTRONICS MKP Metallized Film Capacitor
Series: R.41
Class Y2
Style: Bulk
Rated Voltage: 300V AC
Tolerance: 20%
Pitch: 10...22,5mm
| Features |
| • Dielectric polypropylene film. Aluminium layer plates deposited by evaporation under vacuum • Tinned wire leads • Box material is solvent resistant and flame retardant (UL94V-0) • Low attenuation • Non inductive |
 |
| Application |
| Interference suppression and "across-the-line" and "line-to-ground" applications. |
|
| Technical Specifications |
| |
| Rated Voltage (50/60Hz): | 300V AC |
| Rated Capacitance: | See Table |
| Capacitance Tolerance: | ±20% |
| Temperature Range: | -40...+110°C |
| Climatic Category (IEC60068-1): | 40/110/56 |
| Insulation Resistance (25±5°C; 100V, 1Min.): | 1x105MW |
| Dissipation Factor Tan d (25 ±5°C; 1kHz): | 20x10-4 |
| Pulse Strength (420V DC): | |
| P = 10mm: | 800V/µs |
| P = 15mm: | 600V/µs |
| P = 22,5mm: | 500V/µs |
| Test Voltage (25 ±5°C)¹): | 2500V AC/1s |
| 5000V DC/1s | |
| 1) Test Voltage between Terminations | |
| |

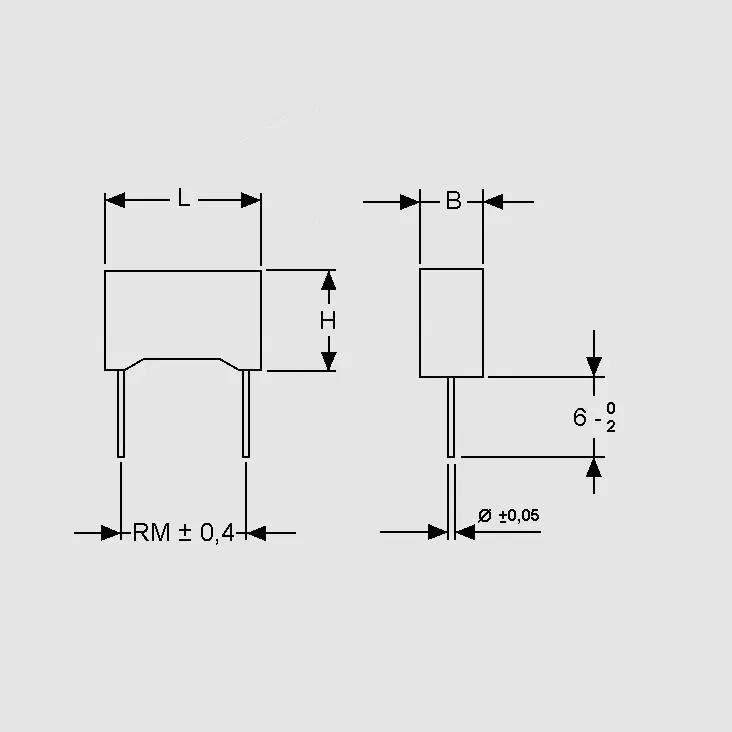

| Part Nr. | CN | B | H | L | P | Ø |
| [nF] | [mm] | [mm] | [mm] | [mm] | [mm] | |
| CFY1.0NF41 | 1,0 | 4,0 | 9,0 | 13,0 | 10,0 | 0,6 |
| CFY2.2NF41 | 2,2 | 4,0 | 9,0 | 13,0 | 10,0 | 0,6 |
| CFY3.3NF41 | 3,3 | 5,0 | 11,0 | 13,0 | 10,0 | 0,6 |
| CFY4.7NF41 | 4,7 | 5,0 | 11,0 | 13,0 | 10,0 | 0,6 |
| CFY10NF41 | 10 | 5,0 | 11,0 | 18,0 | 15,0 | 0,8 |
| CFY100NF41 | 100 | 10,0 | 18,5 | 26,5 | 22,5 | 0,8 |
| CN = Rated Capacity | ||||||
| ||||||
| Norms |
| EN132 400 |
|
| Labelling |
| Manufacturers logo, series, capacitance, capacitance tolerance, rated voltage, class, dielectric (coded), climatic category, manufacturing date (coded), approvals |
|
| Approvals |
 EN 132 400, IQM C22.2 N°1 (Across-the-line or line-to-ground) UL1414 (Across-the-line or line-to-ground)CQC GB IT 14472-1998 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces 100nF: 1 PKU = 25 pieces Form of delivery: bulk |
|
| Manufacturer |
 |
| http://www.kemet.com |
|
