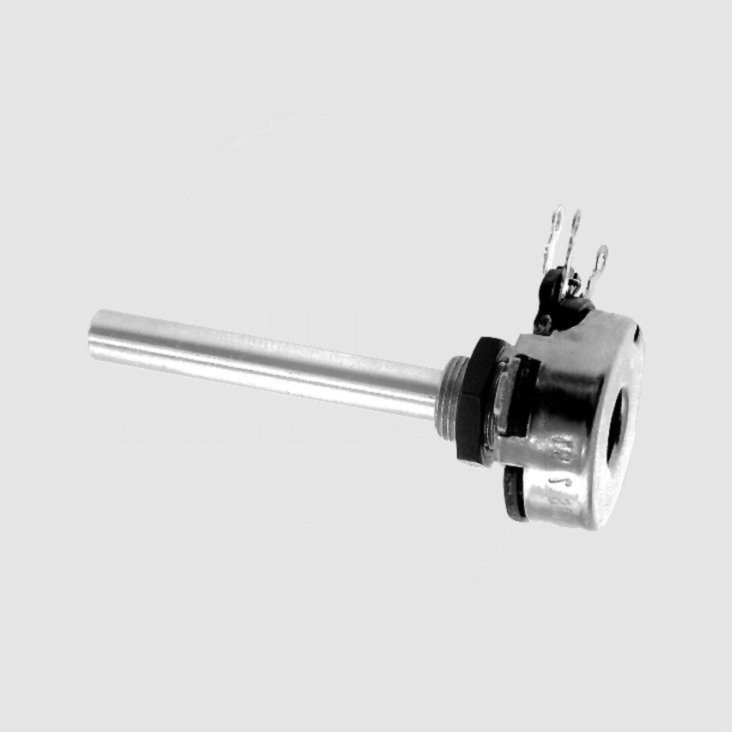

Wirewound Potentiometer 4W 2,5R

Varenummer:
92-786
Varekode:
PD5WE002,5
Vægt:
20 g
Lagerstatus:
Ikke på lager

kr 69,20 69.2 DKK kr 69,20 Inklusiv moms

kr 69,20 Inklusiv moms

Anmod os om en pris

v/10
Kr. 71,12
v/25
Kr. 63,44
v/100
Kr. 55,75

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/54221/image_1920?unique=b7c71a2 https://elektroniklavpris.odoo.com/web/image/product.template/54221/image_1920?unique=b7c71a2
Electrical Specifications
    Rated Dissipation (40°C): 4W Hold-off Voltage: 500V Insulation Voltage: 1KV~ Independent Linearity: ±2%
Mechanical Specifications
    Rotation Angle Mechanical: 300° ±10° Electrical: 280° ±5° Operating Torque: 0,7...3,6Ncm End Stop Torque: 115Ncm

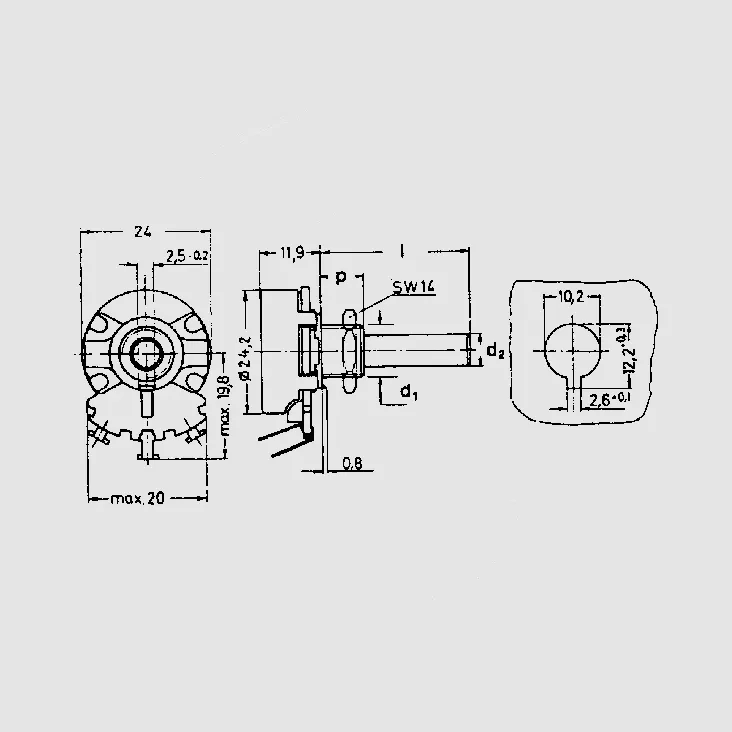

Dimensions
    Spindle (Metal) Diameter (d2): 6,0mm Length (l): 50,0mm Bush (p): 8,0mm Thread (d1): M10x0,75
Temperature Coefficient and Resolution
          Part Nr. RN Tol. TC R   [W] [%] [10-6/°C] [%] PD5WE002,2 2,2 ±20 ±13000 0,89 PD5WE004,7 4,7 ±20 ±13000 0,70 PD5WE010 10 ±20 +400 0,75 PD5WE022 22 ±10 +400 0,75 PD5WE047 47 ±10 +40/-80 0,70 PD5WE100 100 ±10 +40/-80 0,50 PD5WE220 220 ±10 +40/-80 0,35 PD5WE470 470 ±10 +140 0,35 PD5WK001 1K ±10 ±20 0,30 PD5WK002,2 2,2K ±10 ±20 0,30 PD5WK004,7 4,7K ±10 ±20 0,20 PD5WK010 10K ±10 ±20 0,15 PD5WK022 22K ±10 ±20 0,13
RN = Resistance Range, Tol. = Resistance Tolerance, TC = Standard Temperature Coefficient, R = Resolution
Manufacturer
http://www.ab-sachsen.de
