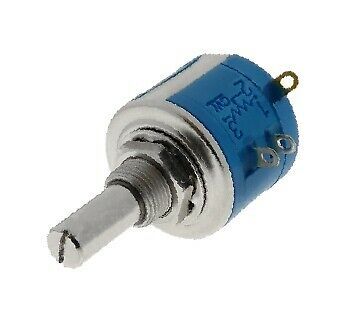

Wirewound Potentiometer 2W 2K
Varenummer:
92-779
Varekode:
P534K002
Vægt:
20 g
Lagerstatus:
Lager: 6 stk.
Gruppe:
C3514
VISHAY Multi-Turn Potentiometers
Series: 534
Linear
Power: 2W

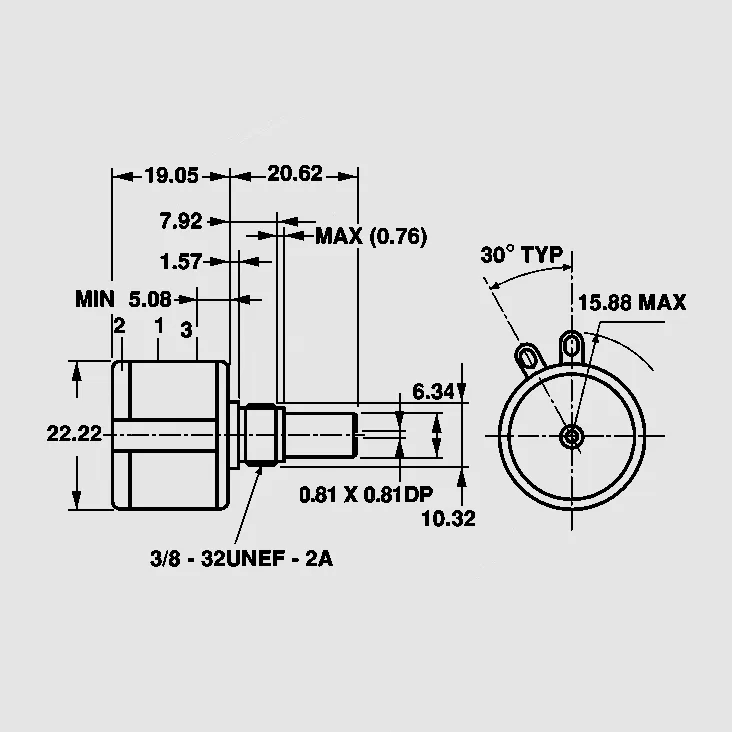

Shaft: Metal, Ø6,35mm
Housing: Ø22,22mm
VISHAY Multi-Turn Potentiometers
Series: 534
Linear
Power: 2W
Shaft: Metal, Ø6,35mm
Housing: Ø22,22mm
| Features |
| • 6,35mm metal spindle, thread 3/8-32UNEF-2A • High mechanical strength |
 |
| Technical Specifications |
| |
| Rated Dissipation (70°C): | 2W |
| Hold-off Voltage: | 500V |
| Dielectric Strength (RMS): | 1000V |
| Insulation Resistance: | 103MW |
| Standard Tolerance: | ±5% |
| Independent Linearity: | ±0,25% |
| Rotation Angle | |
| Mechanical: | 3600° ±10° |
| Electrical: | 3600° ±10° |
| Operating Torque: | 0,28...0,35Ncm |
| End Stop Torque: | 53Ncm |
| Temperature Range: | -55...+125°C |
| Temperature Coefficient (Typ.): | 20ppm/°C |
| |
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
Vishay/Spectrol |
| http://www.vishay.com |
|
