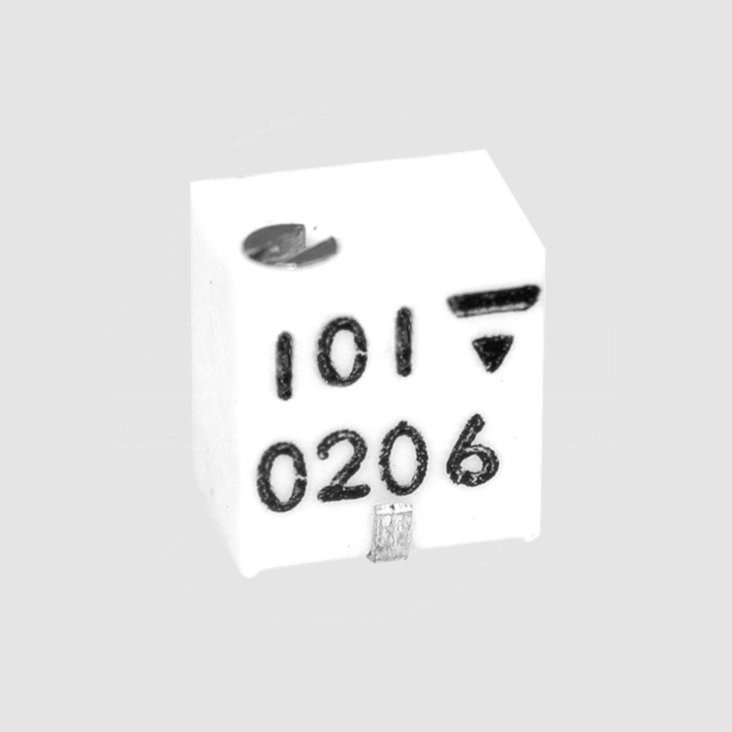

SMD Multiturn Cermet Trimmer 10K
Varenummer:
92-729
Varekode:
TSM4YJK010
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
C2621
VISHAY SMD Multiturn Cermet Trimmers
Series: TSM4YJ
Power: 0,25W
Shaft: Slot, Top Adjustment
Pitch: 2,54mm

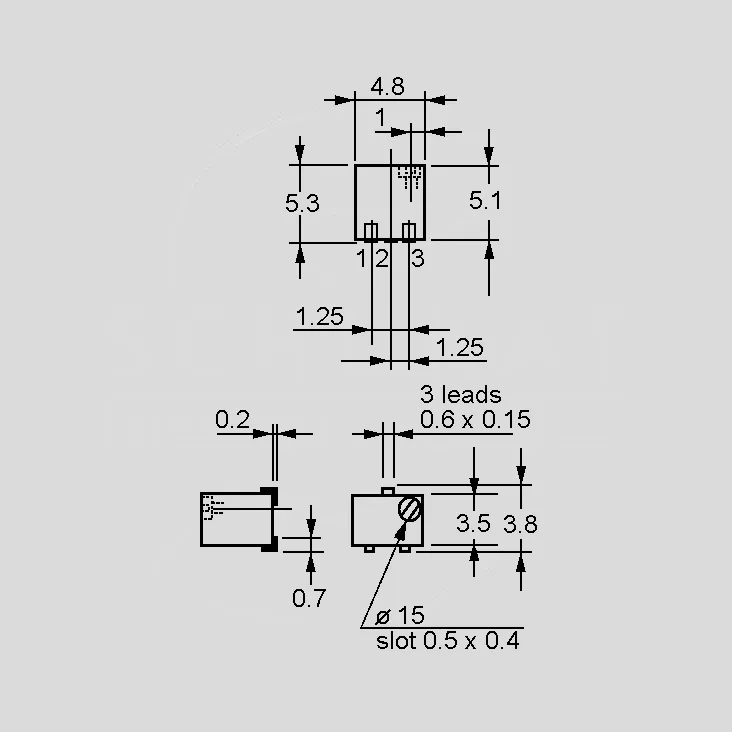

Housing: 4,8x5,1mm
VISHAY SMD Multiturn Cermet Trimmers
Series: TSM4YJ
Power: 0,25W
Shaft: Slot, Top Adjustment
Pitch: 2,54mm
Housing: 4,8x5,1mm
| General Specifications |
 | |
| Standard Tolerance: | ±10% |
| Resistive Element: | Cermet |
| Temperature Range: | -55...+125°C |
| Climatic Category: | 55/125/56 |
| Sealing: | IP671) |
| 1) Sealed container, solder immersion | |
| |
| Mechanical Specifications |
| |
| Mechanical Travel: | 13 ±2 |
| Operating Torque, End Position: | Clutch Action |
| Operating Torque (Max.): | 1,0Ncm |
| Weight: | 0,15g |
| |
| Electrical Specifications |
| |
| Resistance Law: | Linear |
| Electrical Travel: | 11 ±2 |
| Power Rating (85°C): | 0,25W |
| Maximum Voltage: | 250V |
| Dielectric Strength (RMS): | 600V |
| Insulation Resistance (500V DC): | 106MW |
| End Resistance (Typ.): | 1W |
| Temperature Coefficient (Typ., RN³100W): | ±100ppm/°C |
| |
| Part Nr. | R | PMax. | UMax. | IMax. |
| [W] | [W] | [V] | [mA] | |
| TSM4YJR100 | 100 | 0,25 | 5,0 | 50 |
| TSM4YJR200 | 200 | 0,25 | 7,07 | 35 |
| TSM4YJR500 | 500 | 0,25 | 11,2 | 22 |
| TSM4YJK001 | 1k | 0,25 | 15,8 | 15,8 |
| TSM4YJK002 | 2k | 0,25 | 22,3 | 11,2 |
| TSM4YJK005 | 5k | 0,25 | 35,3 | 7,1 |
| TSM4YJK010 | 10k | 0,25 | 50,0 | 5,0 |
| TSM4YJK020 | 20k | 0,25 | 70,7 | 3,5 |
| TSM4YJK050 | 50k | 0,25 | 112 | 2,2 |
| TSM4YJK100 | 100k | 0,25 | 158 | 1,6 |
| TSM4YJK200 | 200k | 0,25 | 200 | 1,0 |
| TSM4YJK500 | 500k | 0,08 | 200 | 0,4 |
| TSM4YJM001 | 1M | 0,04 | 200 | 0,2 |
| R = Resistance, PMax. = Power, Max. (+85°C), UMax. = Operating Voltage, Max., IMax. = Transmission Current, Max. | ||||
| ||||
| Norms |
| CECC41000 |
|
| Labelling |
| Manufacturers trademark, series, resistance code, manufacturing date |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces Form of delivery: orders of 250 pieces on reel Articles in bold print in stock, other articles available on request, delivery time approx. 14 weeks. |
|
| Manufacturer |
Vishay/Sfernice |
| http://www.vishay.com |
|
