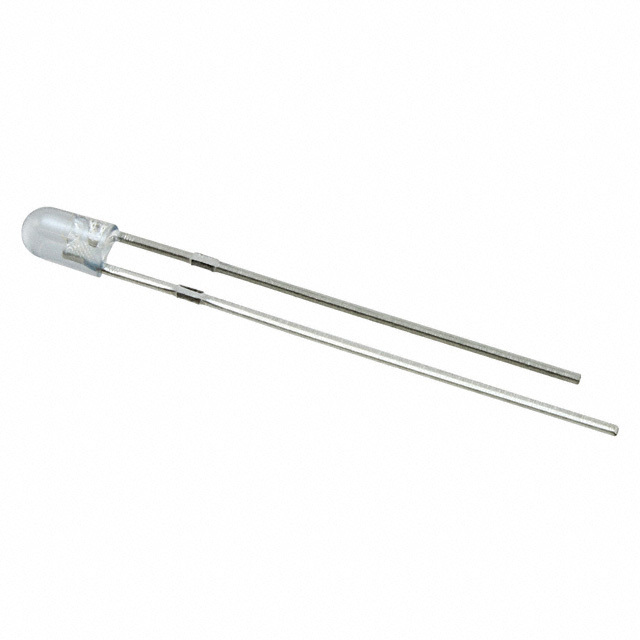

IR-LED Blue 30° 3mm 20mA
Varenummer:
92-350
Varekode:
ELSIR204-A
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
X2323
EVERLIGHT Infrared LEDs
Series: ELHIR_, ELIR_, ELSIR_
Case: 3mm, 5mm, Side View
EVERLIGHT Infrared LEDs
Series: ELHIR_, ELIR_, ELSIR_
Case: 3mm, 5mm, Side View
| Technical Specifications |
| Part Nr. | Colour | WL | VA | IE | @IF | UF |
| [nm] | [°] | [mW/sr] | [mA] | [V] | ||
| ELHIR204/H0 | Infrared | 850 | 60 | 4,0 | 20 | 1,45 |
| ELIR204-A | Infrared | 940 | 35 | 4,0 | 20 | 1,2 |
| ELSIR204-A | Infrared | 875 | 30 | 4,0 | 20 | 1,3 |
| ELIR323/H0-A | Infrared | 940 | 60 | 2,0 | 20 | 1,2 |
| ELHIR333/H0 | Infrared | 850 | 30 | 7,8 | 20 | 1,45 |
| ELIR333C/H0/L10 | Infrared | 940 | 40 | 7,8 | 20 | 1,2 |
| ELSIR333-A | Infrared | 875 | 20 | 7,8 | 20 | 1,3 |
| ELIR908-7C | Infrared | 940 | 60 | - | - | 1,2 |
| ELIR7393C | Infrared | 940 | 60 | 4,0 | 20 | 1,2 |
| WL = Peak Emission Wavelength, VA = Viewing Angle, IE = Min. Radiant Intensity, IF = Forward Current, UF = Forward Voltage | ||||||
 | ||||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.everlight.com |
|
Stregkode:
92350
Intern reference:
92350
Varekode:
ELSIR204-A
