600V 55A 200W TO247AC
Varenummer:
92-156
Varekode:
IRG4PC50WPBF
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe:
U4346
INTERNATIONAL RECTIFIER (IR) IGBTs
Series: IRG4P_

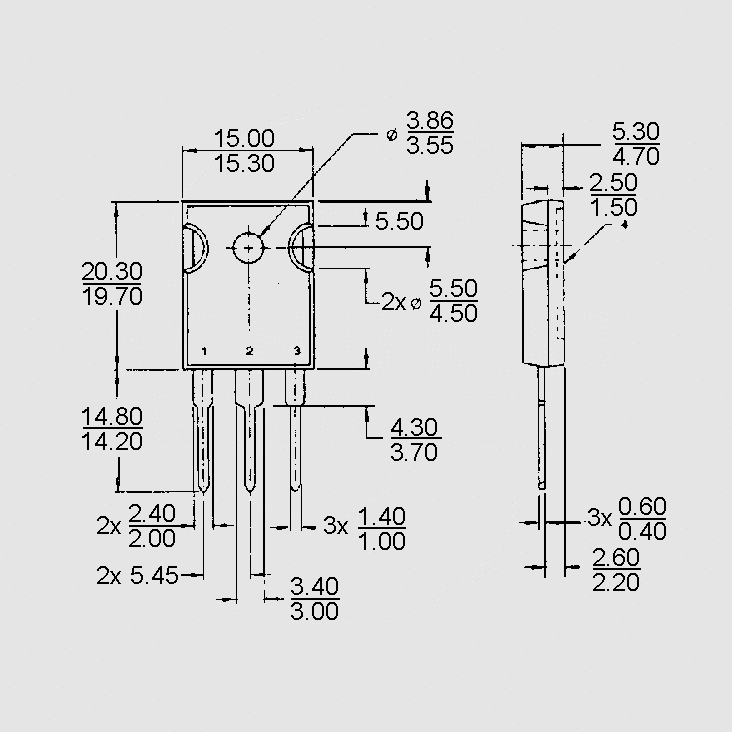

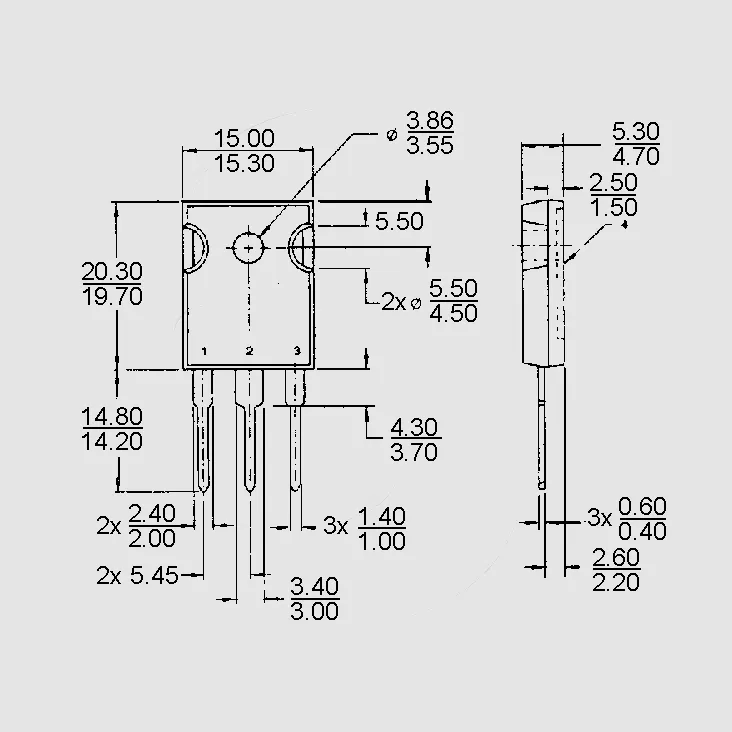

Case: TO247AC
INTERNATIONAL RECTIFIER (IR) IGBTs
Series: IRG4P_
Case: TO247AC
| Technical Specifications |
| Part Nr. | UCES | IC25 | ICpuls | Ptot | UGE(th) | td(on) | td(off) |
| IRG4P_ | [V] | [A] | [A] | [W] | [V] | [ns] | [ns] |
| C40UPBF | 600 | 40 | 160 | 160 | 3,0 | 34 | 110 |
| C40WPBF | 600 | 40 | 160 | 160 | 3,0 | 27 | 100 |
| C50FPBF | 600 | 70 | 280 | 200 | 3,0 | 31 | 240 |
| C50SPBF | 600 | 70 | 140 | 200 | 3,0 | 33 | 650 |
| C50UPBF | 600 | 55 | 220 | 200 | 3,0 | 32 | 170 |
| C50WPBF | 600 | 55 | 220 | 200 | 3,0 | 46 | 120 |
| F50WPBF | 900 | 51 | 204 | 200 | 3,0 | 29 | 110 |
| H30KPBF | 1200 | 20 | 40 | 100 | 3,0 | 28 | 200 |
| H40UPBF | 1200 | 41 | 82 | 160 | 3,0 | 24 | 220 |
| H50SPBF | 1200 | 57 | 114 | 200 | 3,0 | 32 | 845 |
| H50UPBF | 1200 | 45 | 180 | 200 | 3,0 | 35 | 200 |
| UCES = Max. Collector-Emitter Breakdown Voltage, IC25 = Max. Continuous Collector Current At TC = 25°C, ICpuls = Max. Pulsed Collector Current, Ptot = Power Dissipation, UGE(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | |||||||
 | |||||||
| Note |
| You will find suitable isolation assemblies and heatsinks in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.irf.com |
|
Stregkode:
541-1499
Intern reference:
92156
Varekode:
IRG4PC50WPBF
