2xP-Ch 20V 5,3A 2,0W 0,058R SO8
Varenummer:
92-139
Varekode:
IRF7314PBF
Vægt:
0 g
Lagerstatus:
Ikke på lager
- MOSFET, DUAL, PP, LOGIC, SO-8
- Transistor Polarity: P Channel
- Continuous Drain Current Id: 4.2A
- Drain Source Voltage Vds: 20V
- On Resistance Rds(on): 53mohm
- Rds(on) Test Voltage Vgs: -4.5V
- Threshold Voltage Vgs Typ: -700mV
- Power Dissipation Pd: 1.4W
- Transistor Case Style: SOIC
- No. of Pins: 8
- SVHC: No SVHC (18-Jun-2012)
- Continuous Drain Current Id, P Channel: -5.3A
- Current Id Max: -5.3A
- Current Temperature: 25°C
- Drain Source Voltage Vds, P Channel: -20V

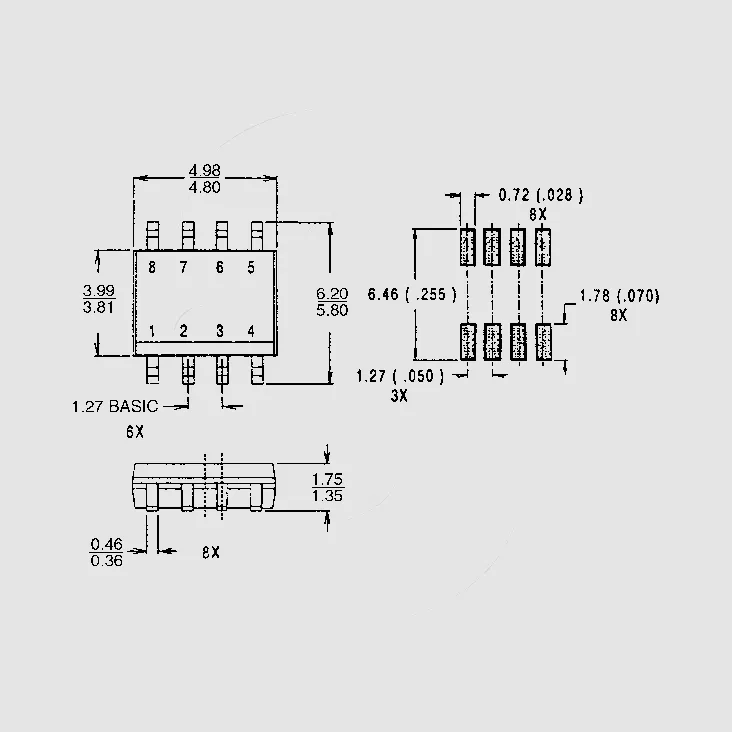

- External Depth: 5.2mm
- External Length / Height: 1.75mm
- External Width: 4.05mm
- Full Power Rating Temperature: 25°C
- Junction Temperature Tj Max: 150°C
- Junction Temperature Tj Min: -55°C
- Module Configuration: Dual
- No. of Transistors: 2
- On Resistance Rds(on), P Channel: 0.082ohm
- Package / Case: SOIC
- Pin Configuration: c
- Pin Format: 1 S1
- 2 G1
- 3 S2
- 4 G2
- 5 D2
- 6 D2
- 7 D1
- 8 D1
- Power Dissipation Pd: 1.4W
- Power Dissipation Pd: 1.4W
- Pulse Current Idm: 23A
- Row Pitch: 6.3mm
- SMD Marking: F7314
- Termination Type: SMD
- Voltage Vds Typ: -20V
Stregkode:
541-0294
Intern reference:
92139
Varekode:
IRF7314PBF
