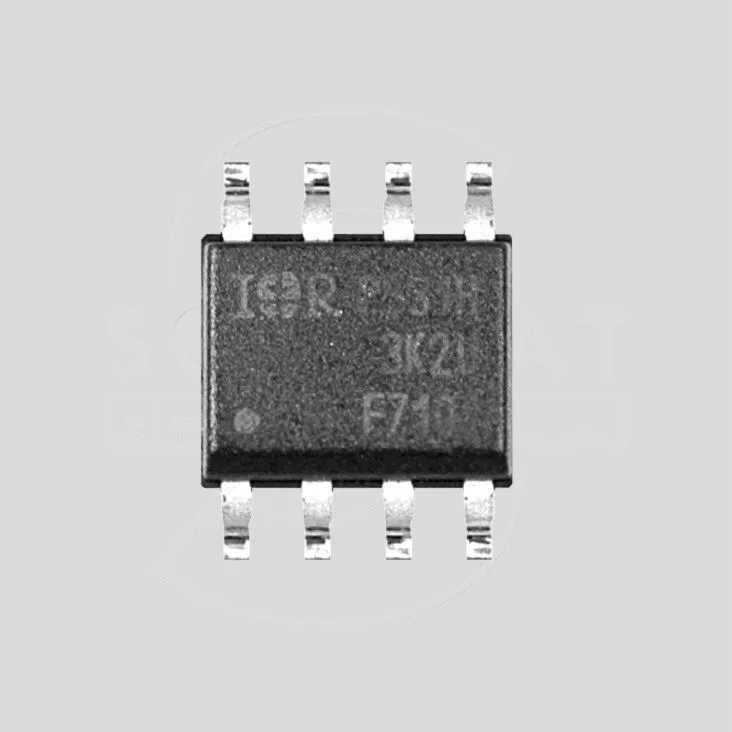

N+P-Ch 25V 3,5/2,3A 2,0W SO8
Varenummer:
92-134
Varekode:
IRF7105PBF
Vægt:
0 g
Lagerstatus:
Ikke på lager
- MOSFET, DUAL, NP, LOGIC, SO-8
- Transistor Polarity: N and P Channel
- Continuous Drain Current Id: 2.3A
- Drain Source Voltage Vds: 25V
- On Resistance Rds(on): 100mohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs Typ: 3V
- Power Dissipation Pd: 2W
- Operating Temperature Min: -55°C
- Operating Temperature Max: 150°C
- Transistor Case Style: SOIC
- No. of Pins: 8
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (20-Jun-2013)
- Cont Current Id N Channel 2: 3.5A
- Cont Current Id P Channel: 2.3A
- Current Id Max: 3.5A
- Current Temperature: 25°C
- External Depth: 5.2mm
- External Length / Height: 1.75mm
- External Width: 4.05mm
- Full Power Rating Temperature: 25°C
- Junction Temperature Tj Max: 150°C
- Junction Temperature Tj Min: -55°C
- No. of Transistors: 2
- On State Resistance N Channel Max: 100mohm
- On State Resistance P Channel Max: 250mohm
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 10A
- Pulse Current Idm N Channel 2: 14A
- Pulse Current Idm P Channel: 10A
- Row Pitch: 6.3mm
- SMD Marking: F7105
- Voltage Vds: 25V
Stregkode:
541-0244
Intern reference:
92134
Varekode:
IRF7105PBF
