  5. Transistor MOSFET, P-Ch, 100V, 23A, 140W, 0,117R, TO220AB

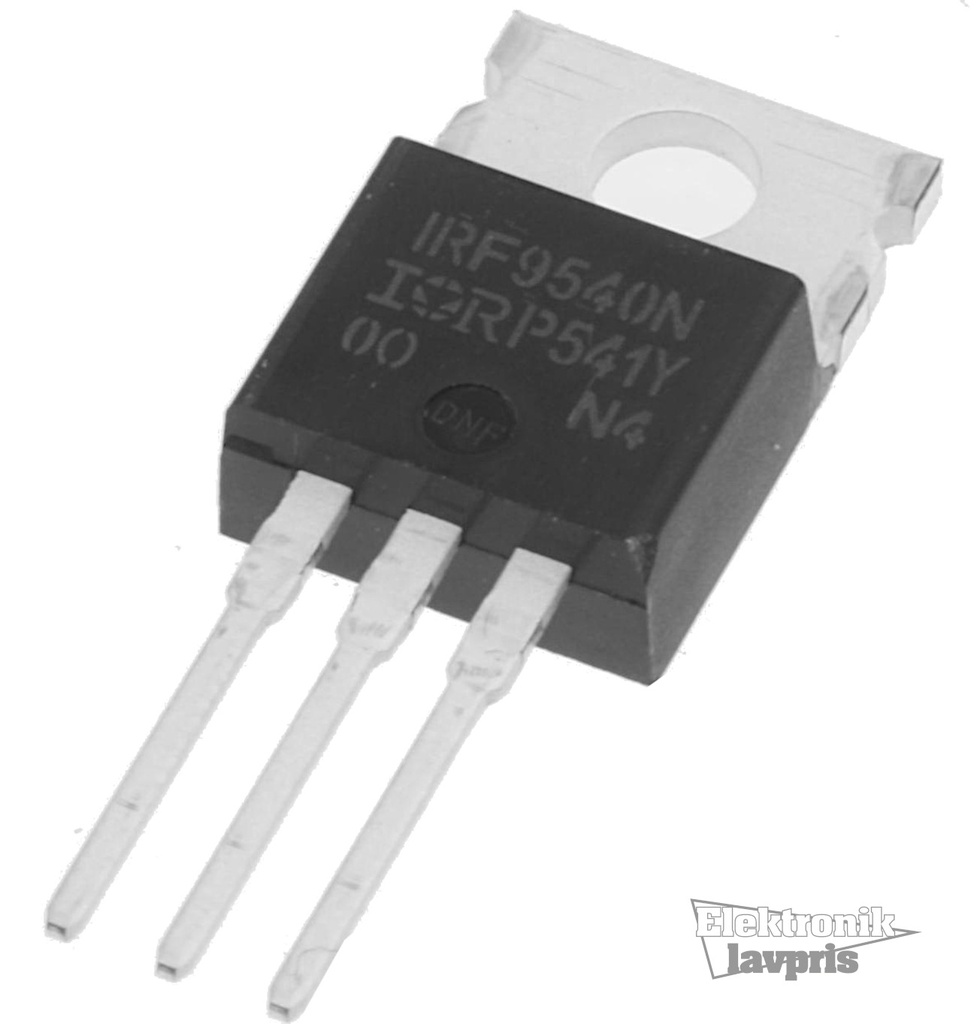

Transistor MOSFET, P-Ch, 100V, 23A, 140W, 0,117R, TO220AB

Varenummer:
92-057
Varekode:
IRF9540NPBF
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 15,50 15.5 DKK kr 15,50 Inklusiv moms

kr 15,50 Inklusiv moms

Anmod os om en pris

v/10
Kr. 15,00
v/25
Kr. 14,69
v/100
Kr. 10,79
v/1000
Kr. 8,12

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/53493/image_1920?unique=3171727 https://elektroniklavpris.odoo.com/web/image/product.template/53493/image_1920?unique=3171727
  • MOSFET, P, -100V, -23A, TO-220
  • Transistor Polarity: P Channel
  • Continuous Drain Current Id: 19A
  • Drain Source Voltage Vds: 100V
  • On Resistance Rds(on): 117mohm
  • Rds(on) Test Voltage Vgs: -10V
  • Threshold Voltage Vgs Typ: -4V
  • Power Dissipation Pd: 94W
  • Transistor Case Style: TO-220AB
  • No. of Pins: 3
  • SVHC: No SVHC (19-Dec-2011)
  • Current Id Max: -23A
  • Current Temperature: 25°C
  • Device Marking: IRF9540N
  • Full Power Rating Temperature: 25°C
  • Junction to Case Thermal Resistance A: 1.1°C/W
  • Lead Spacing: 2.54mm
  • No. of Transistors: 1
  • On State Resistance Max: 117mohm
  • Package / Case: TO-220AB
  • Pin Configuration: a
  • Pin Format: 1 g
  • 2 d/tab
  • 3 s
  • Power Dissipation Pd: 94W
  • Power Dissipation Pd: 94W
  • Pulse Current Idm: 76A
  • Termination Type: Through Hole
  • Voltage Vds: 100V
  • Voltage Vds Typ: -100V
  • Voltage Vgs Max: -4V
  • Voltage Vgs Rds on Measurement: -10V
  • Voltage Vgs th Max: -4V
Kontakt os

Stregkode: 541-1225
Intern reference: 92057
Varekode: IRF9540NPBF
