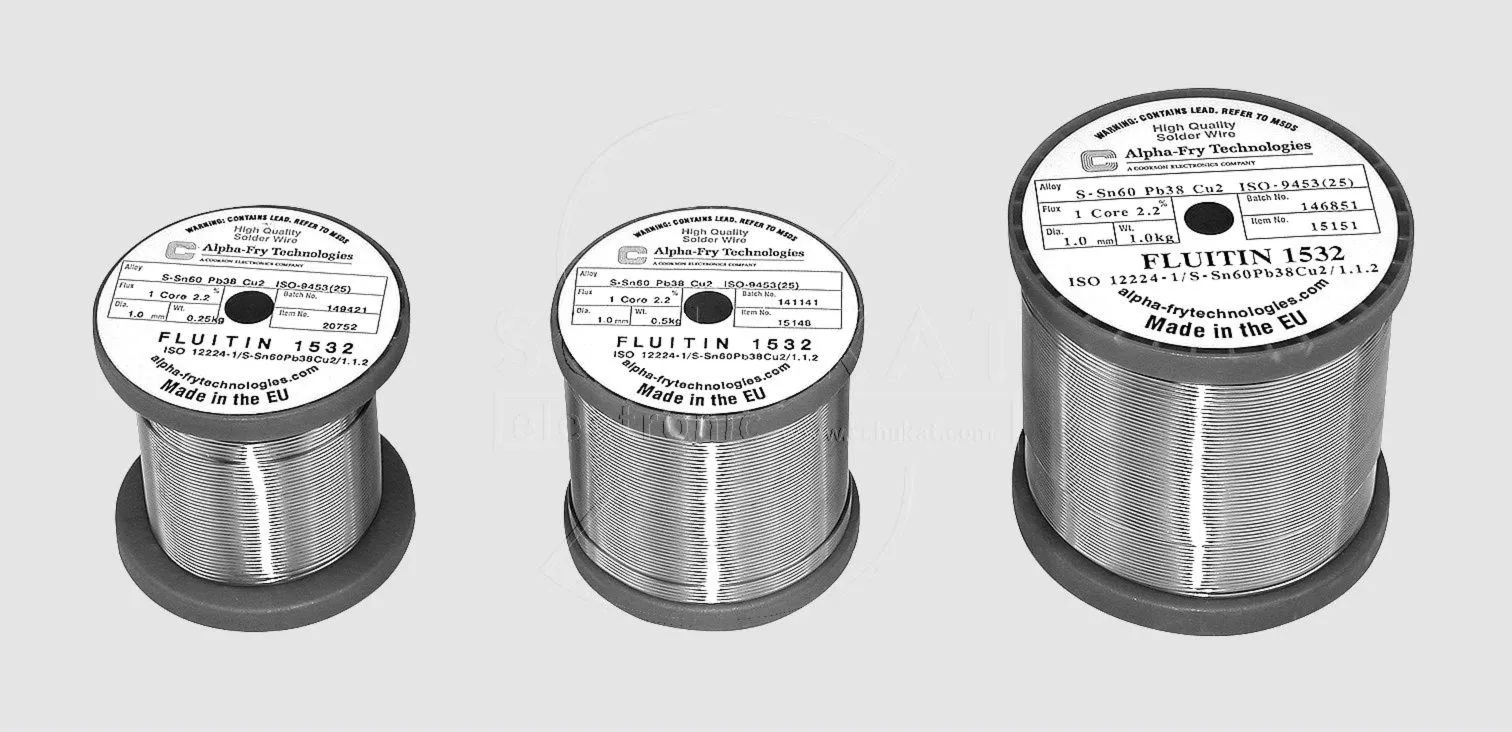

Fluitin-S 1532 2,2% 1,0mm 1000g
Varenummer:
90-837
Varekode:
FL3210CU1000-PB
Vægt:
1010 g
Lagerstatus:
Ikke på lager
Gruppe:
R5171
ALPHA-COOKSON Leaded Soldering Wires
Halide-activated Flux 2,2%
Diameter: 0,75 and 1,0mm
Series: Fluitin S 1532
ALPHA-COOKSON Leaded Soldering Wires
Halide-activated Flux 2,2%
Diameter: 0,75 and 1,0mm
Series: Fluitin S 1532
| Features |
| • Excellent wetting and spreading properties • Fast and reliable solder connections • Low flux level • High corrosive safety due to minimal activation of rosin • Minimal spray performance • Post-soldering residues can be safely left on the soldering joint without cleaning or removing them • Soldering with copper addition (Cu 1.2...1.6%) |
 |
| Technical Specifications |
| |
| Alloy (DIN ISO 9453): | S-Sn60Pb39Cu1 |
| Melting Point: | +183...+190°C |
| Density: | 8,5g/cm3 |
| Flux (DIN 8516): | F-SW26 |
| Content: | 2,2±0,2 Weight -% |
| Flux Rest: | 1-Core |
| |
| Note |
| • You will find soldering stations and irons starting at product group T1121. • The products with suffix -PB in this product group do not meet the requirements of the EU directive concerning the use of hazardous substances in electrical and electronic devices (RoHS). The use of these products may contradict hazardous-substance legislation in your country. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.alpha.cooksonelectronics.com |
|
Stregkode:
90837
Intern reference:
90837
Varekode:
FL3210CU1000-PB
