EPROM Eraser (Sletter) 220V 32W
Varenummer:
90-450
Varekode:
EPL14032
Vægt:
3050 g
Lagerstatus:
Ikke på lager
Gruppe:
M7380
GIE-TEC EPROM UV Erasers
Series: EPL
M7380
GIE-TEC EPROM UV Erasers
Series: EPL

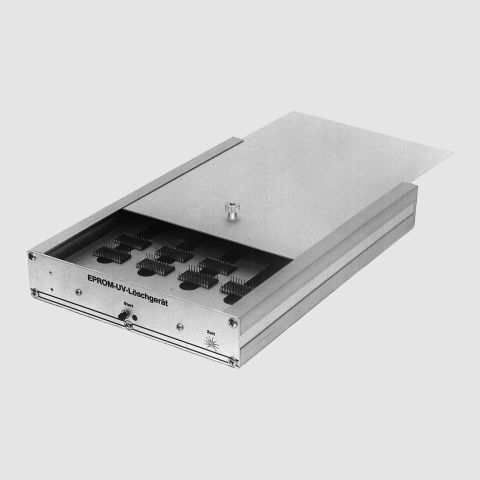

| EPL14030 |
| For a Maximum of 5 EPROMs |
 |
| Features |
| Excellent uniformity ensures fast and complete erasure of five EPROMs, erasing time approx. 15 minutes, 25 minutes max. adjustment. • Device made of anodized aluminium sheet metal with sliding cover top • Metal coating for EPROMs with erasing slots • Control lamp, start button switch, tuner for erasing time • Jack (3.5mm of Ø) for input voltage at the back of the device • Operates with separate optional power supply unit (for example MW7E08GSF see Note) |
|
| Technical Specifications |
| |
| Input Voltage: | 12V |
| Erasing Lamp: | 12 V/1x4W |
| UV Wave Length: | 253,7nm |
| Erasing Slots: | 85x15mm |
| Erasing Time: | Approx. 15mins |
| Dimensions: | 150x75x42mm |
| |
| Note |
| • You will find suitable power supply unit, for example MW3R15GS/6XC, in product group L4115. |
|

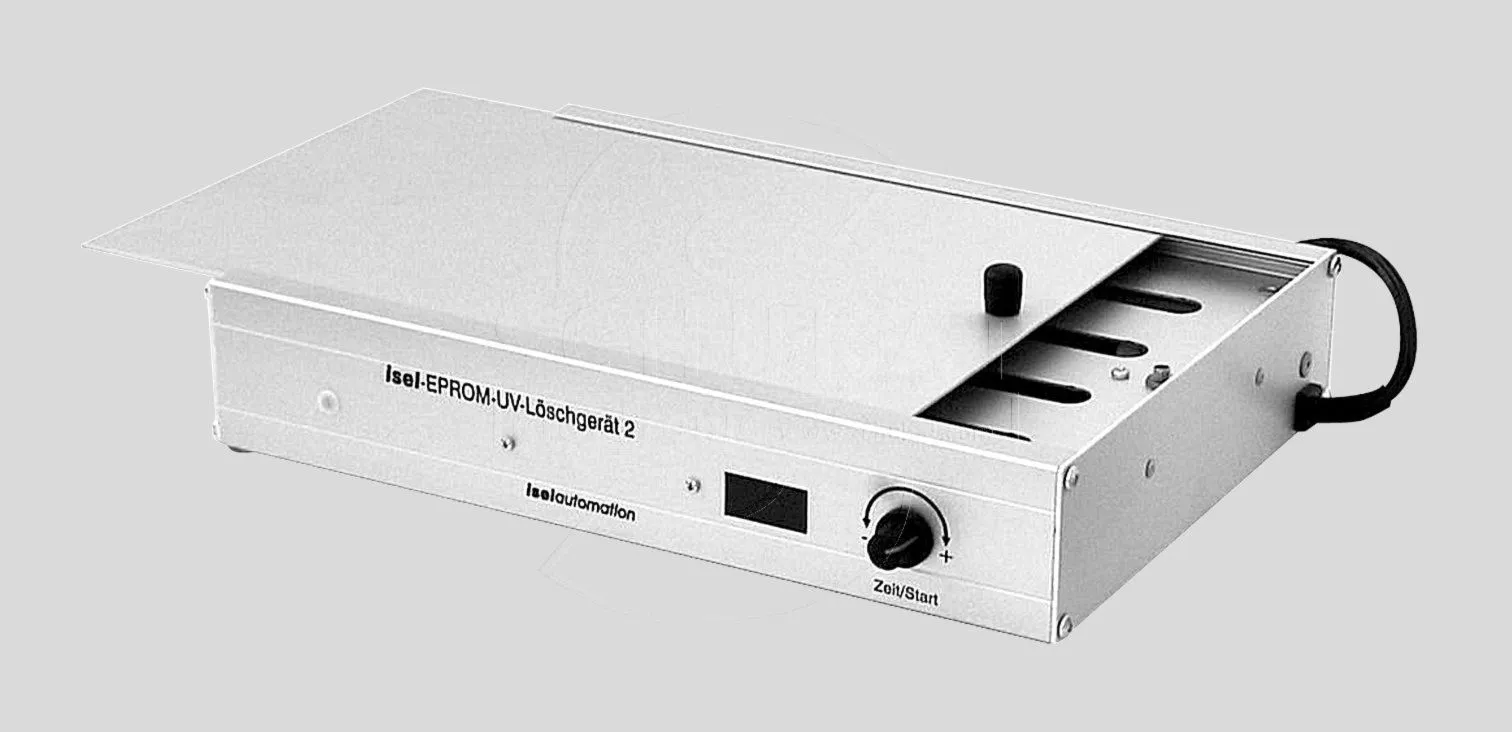

| EPL14032 |
| For a Maximum of 48 EPROMs |
|
| Features |
| • Built the same as EPL14030, but equipped with four erasing slots and four built-in erasing lamps (220V, 8W) • For swift and effective erasure of 48 EPROMs |
|
| Technical Specifications |
| |
| Input Voltage: | 220V |
| Erasing Lamp: | 220V/4x8W |
| UV Wave Length: | 253,7nm |
| Erasing Slots: | 240x15mm |
| Erasing Time: | Approx. 15mins |
| Dimensions: | 317x225x60mm |
| |
| EPL410030 |
| Replacement Eraser Lamp 12V/4W |
|
| Features |
| UV eraser lamp for EPL14030 |
|
| EPL410032 |
| Replacement Eraser Lamp 220V/8W |
|
| Features |
| UV eraser lamp for EPL14032 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.gie-tec.de |
|
Stregkode:
90450
Intern reference:
90450
Varekode:
EPL14032
