Frame for 8-Digit Displays 13mm
Varenummer:
90-331
Varekode:
AR19101
Vægt:
0 g
Lagerstatus:
Ikke på lager
| AR19_ |
| Front Frames |
 |
| Features |

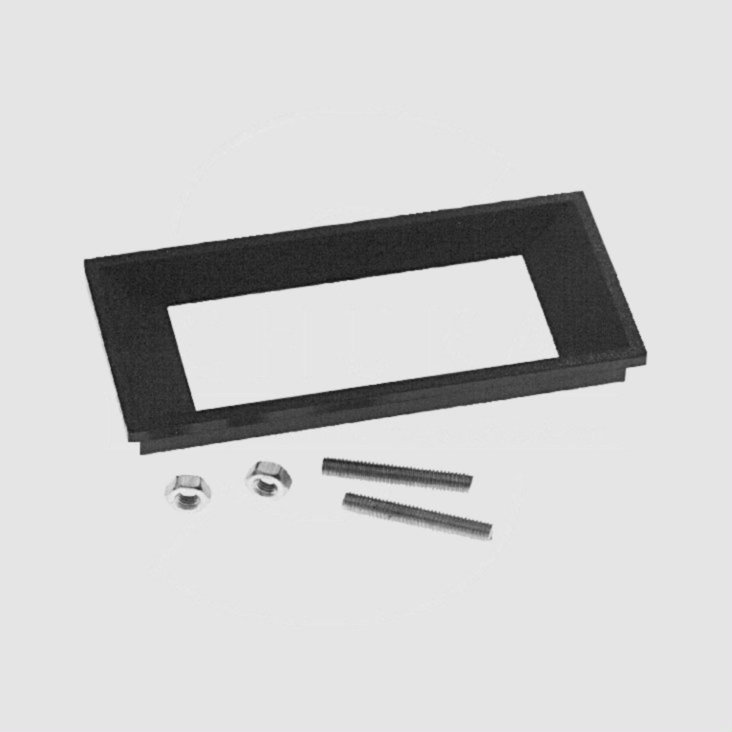

| Black front frame with a matt structured surface. Two thread poles are screwed into the frame and the display is connected to the frames with the help of two M3 nuts. |
|
| Dimensions |
| Part Nr. | Z | a | b | c | d | f | h | B | H |
| � | � | � | � | � | [mm] | � | � | � | � |
| AR1925 | 2 | 47 | 32 | 42,5 | 28 | 33 | 7 | 25 | 19 |
| AR1938 | 3 | 59 | 32 | 55,0 | 28 | 45 | 7 | 38 | 19 |
| AR1950 | 4 | 70 | 32 | 66,0 | 28 | 58 | 7 | 50 | 19 |
| AR1977 | 6 | 97 | 32 | 93,0 | 28 | 83 | 7 | 77 | 19 |
| AR19101 | 8 | 122 | 32 | 113,5 | 28 | 108 | 7 | 102 | 19 |
| Z = Number of Displays | |||||||||
| |||||||||
| FS19_ |
| Filter Glass |
|
| Features |
| The glass filters are available in red (material: acryl) or clear glass (material: astralon). The size of the filter glass is application-specific to the front frame. |
|
| Dimensions |
| Part Nr. | L | B | T | Fitting |
| � | � | � | � | Front Frame |
| � | [mm] | [mm] | [mm] | � |
| FS1938AC-RT | 51 | 25 | 1,8 | AR1938 |
| FS1950AC-RT | 62 | 25 | 1,8 | AR1950 |
| FS1950KL | 62 | 25 | 1,0 | AR1950 |
| FS1977AC-RT | 90 | 25 | 1,8 | AR1977 |
| FS1977KL | 90 | 25 | 1,0 | AR1977 |
| ||||
| Note |
| You will find LED and LCD displays in our green "Semiconductors" catalogue starting at product group W3322. |
|
| Additional Products |
| Front frames and glass filters are available in other dimensions, orders of 500 pieces on request, delivery time approx. 4 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
| Various |
|
