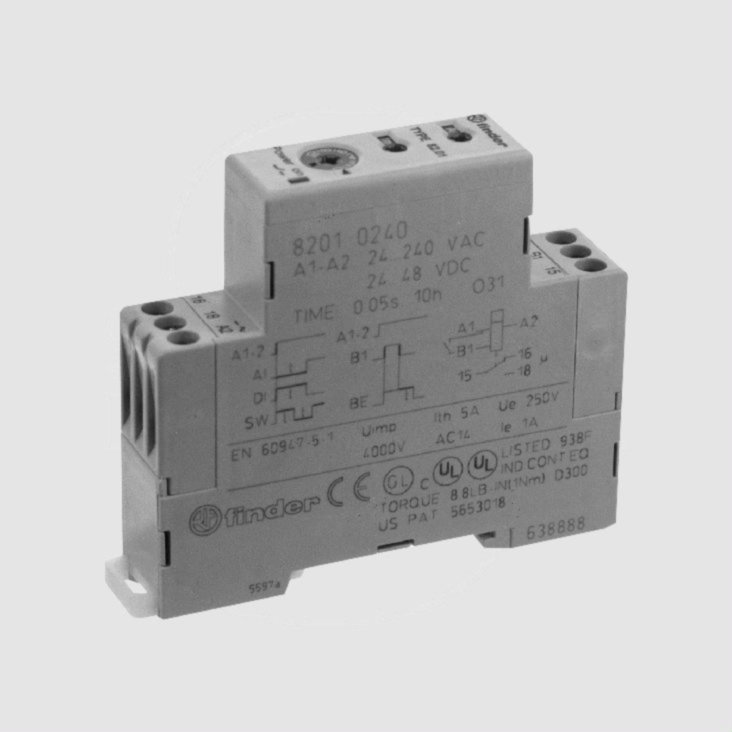

Timer On-Delay 5A 24-240V
Varenummer:
88-797
Varekode:
FZR8211
Vægt:
60 g
Lagerstatus:
Ikke på lager
Gruppe:
E8115
FINDER Industrial Timers
Series: 82
Contact: SPDT
Rated Current: 5A
FINDER Industrial Timers
Series: 82
Contact: SPDT
Rated Current: 5A
| Features |
| • Multifunction with 4 settings • Multivoltage from 24...48V DC and 24...240V AC of 12V to 240V AC/DC • Automatic voltage recognition • Six over-lapping adjustable time scales from 0,05s to 10h • Setting/operating element screwdriver adjustable • For 35mm rail (EN50022) mount • Category of protection IP20 |
 |
| Technical Specifications |
| |
| Contact: | SPDT |
| Contact Material: | AgCdO |
| Rated Current: | 5A |
| Max. Switching Current: | 20A |
| Max. Switching Voltage: | 400V AC |
| Max. Switching Power: | 1250VA |
| Recovery Time: | 100ms |
| Lifetime | |
| Electrical: | 100x103 Operations |
| Operating Temperature: | -20...+50°C |
| |
| Timer Functions |
| |
| FZR8201: | On Delay |
| Signal Off Delay | |
| On Pulse | |
| Recycler On Start | |
| FZR8211: | On Delay |
| FZR8221: | On Pulse |
| FZR8241: | Signal Off Delay |
| |
| Labelling |
 |
|
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
