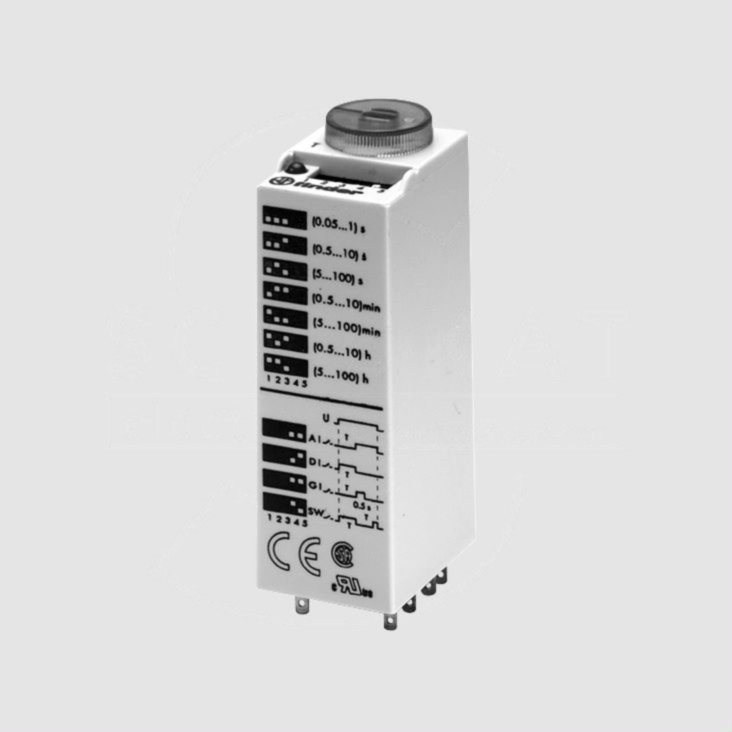

Timer 4PDT 7A 24VAC/DC
Varenummer:
88-794
Varekode:
FZR8504-24
Vægt:
60 g
Lagerstatus:
Ikke på lager
Gruppe:
E8111
FINDER Miniature Industrial Timers
Series: 85
Contact: DPDT or 4PDT
Rated Current: 10A and 7A
FINDER Miniature Industrial Timers
Series: 85
Contact: DPDT or 4PDT
Rated Current: 10A and 7A
| Features |
| • Multifunction with 4 settings • Monovoltage • Seven over-lapping adjustable time scales from 0,05s to 100h • Setting/operating element with switch adjustable • LED position indicating device • Solder/plug-in terminals 2,0x0,5mm • Category of protection IP40 |
 |
| Technical Specifications |
| |
| Contact | |
| FZR8502-_: | DPDT |
| FZR8504-_: | 4PDT |
| Contact Material: | AgNi |
| Rated Current | |
| FZR8502-_: | 10A |
| FZR8504-_: | 7A |
| Max. Switching Current | |
| FZR8502-_: | 20A |
| FZR8504-_: | 15A |
| Max. Switching Voltage | |
| FZR8502-_: | 400V AC |
| FZR8504-_: | 250V AC |
| Max. Switching Power | |
| FZR8502-_: | 2500VA |
| FZR8504-_: | 1750VA |
| Recovery Time: | 20ms |
| Lifetime electrical | |
| FZR8502-_: | 200x103 Operations |
| FZR8504-_: | 150x103 Operations |
| Operating Temperature: | -20...+60°C |
| |
| Timer Functions |
| • ON Delay • ON Pulse • Fixed Pulse (0,5s) Delayed • Symmetrical Recycler ON Start |
|
| Note |
| • For assembly using a clamp terminal socket F9414, see product group E6625, or • Screw terminals for DIN-rail assembly F9474 (with retaining clip F09481) or with F94843, see product group E6625. |
|
| Labelling |
 |
|
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
Stregkode:
88794
Intern reference:
88794
Varekode:
FZR8504-24
