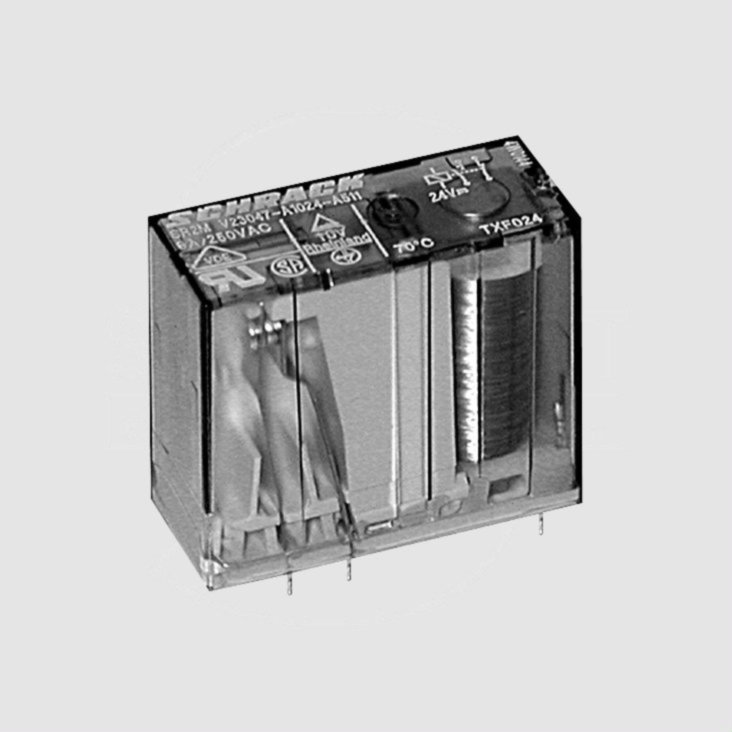

Safety Relay 24V 6A DPDT
Varenummer:
88-787
Varekode:
V23047-2401
Vægt:
20 g
Lagerstatus:
Ikke på lager
Gruppe:
E6811
TE Safety Relays
Series: V23047
Contact: 1xNO and 1xNC or DPDT
Rated Current: 6A
Housing: 29x12,6x25,5mm
TE Safety Relays
Series: V23047
Contact: 1xNO and 1xNC or DPDT
Rated Current: 6A
Housing: 29x12,6x25,5mm
| Features |
| • Relay with forcibly guided contacts according to EN50205 • Large insulation gap to secure separation of circuit • Category of protection RTIII (wash tight) |
 |
| Application |
| Emergency shut-off, machine control, elevator and escalator control, light barrier control |
|
| Technical Specifications |
| |
| Contact | |
| V23047-_01: | DPDT |
| V23047-_11: | 1 NO+1 NC |
| Contact Material: | AgNi |
| Rated Current: | 6A |
| Max. Switching Voltage: | 400V AC |
| Max. Switching Power: | 1500VA |
| Creepage/Clearance: | 8/8mm |
| Operate/Release Time: | 10/4ms |
| Testing Voltage | |
| Coil/Contact: | 4000Vrms |
| Contact/Contact: | 3000Vrms |
| Opening Contact: | 1500Vrms |
| Lifetime | |
| Mechanical: | 10x106 Operations |
| Operating Temperature: | -25...+70°C |
| Weight Approx.: | 20g |
| |
| Coil Data |
| Part Nr. | UN | UAn | UAb | PN | RN |
| [V DC] | [V] | [V] | [mW] | [W] | |
| V23047-1201 | 12 | 9 | 1,2 | 699 | 206 |
| V23047-2401 | 24 | 18 | 2,4 | 700 | 823 |
| V23047-2411 | 24 | 18 | 2,4 | 700 | 823 |
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 23°C | |||||
| |||||
| Norms |
| Forcibly guided contacts according to EN50205. |
|
| Approvals |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
| TE Connectivity http://www.te.com |
|
Stregkode:
88787
Intern reference:
88787
Varekode:
V23047-2401
