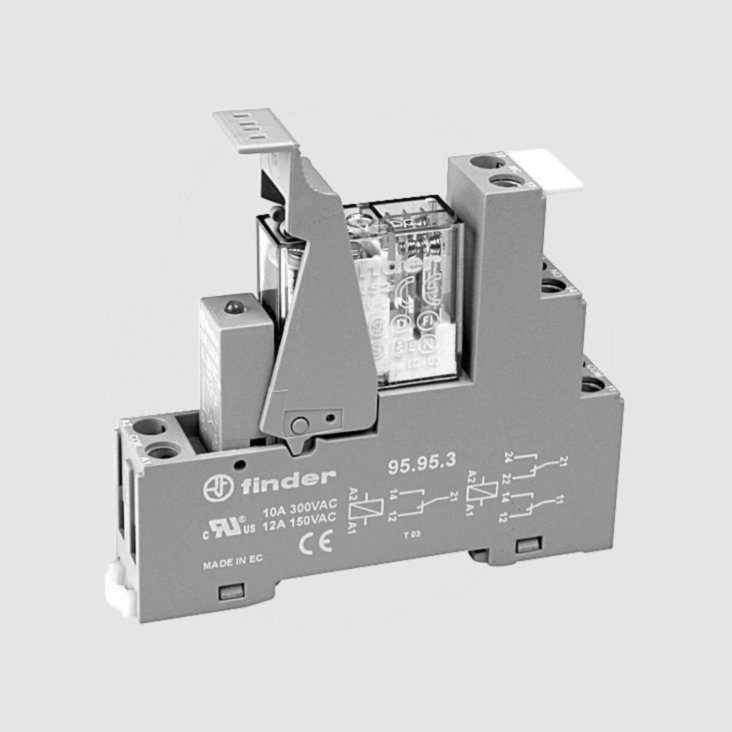

Relay Interface DPDT 230VAC 8A 28K
Varenummer:
88-785
Varekode:
F4952-AC230
Vægt:
70 g
Lagerstatus:
Ikke på lager
Gruppe:
E6663
FINDER Switching Relays
Series: 49.52
Contact: DPDT
Rated Current: 8A
FINDER Switching Relays
Series: 49.52
Contact: DPDT
Rated Current: 8A
| Features |
| • Module consists of DIN-rail terminals with green LED and relay from the F4052 series • AC version with varistor, DC version with pole safety and coil indication • Easy removal of relay with eject lever • Protection class IP20 |
 |
| Technical Specifications |
| |
| Contact: | DPDT |
| Contact Material: | AgNi |
| Rated Current: | 8A |
| Max. Switching Current: | 15A |
| Max. Switching Voltage: | 250V AC |
| Max. Switching Power: | 2000VA |
| Creepage/Clearance: | 8/8mm |
| Operate/Release Time | |
| F4952-24: | 12/12ms |
| F4952-AC230: | 7/4ms |
| Testing Voltage | |
| Coil/Contact: | 6000V |
| Opening Contact: | 1000V |
| Lifetime | |
| Mechanical (AC/DC): | 10x106 Operations / 20x106 Operations |
| Electrical: | 150x103 Operations |
| Operating Temperature: | -40...+70°C |
| |
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | PN |
| [V DC/AC] | [V] | [V] | [mA] | [mW] | |
| F4952-24 | 24 | 17,5 | 36 | 29 | 650 |
| F4952-AC230 | 230 | 184 | 253 | 7 | - |
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power; All Specifications Measured at 20°C | |||||
| |||||
| Norms |
| Secure separation between coil and contacts with VDE0106, EN50178, EN60204 and EN60335. |
|
| Labelling |
 |
|
| Approvals |
         |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
