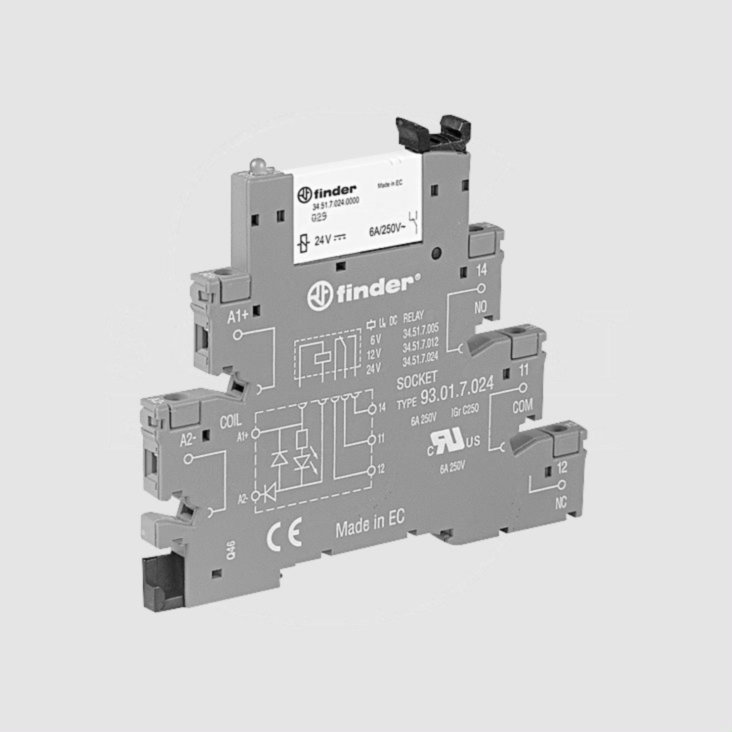

Relay Interface SPDT 24V 6A 3350R
Varenummer:
88-781
Varekode:
F3851-24
Vægt:
30 g
Lagerstatus:
Ikke på lager
Gruppe:
E6661
FINDER Switching Relays
Series: 38.51
Contact: SPDT
Rated Current: 6A
FINDER Switching Relays
Series: 38.51
Contact: SPDT
Rated Current: 6A
| F3851-_ |
| Relays Interface Modules |
 |
| Features |
| • Extremely narrow (6,2mm) electromechanical relay • Module made of DIN-rail terminals with green LED and relays from the F3451 series • AC version mit EMV-switching/DC version with pole safety and coil indication • Instant removal of relay using plastic retaining clip • Cable assembly by screw terminal • Relay protection class IP20 |
|
| Technical Specifications |
| |
| Contact: | SPDT |
| Contact Material: | AgNi |
| Rated Current: | 6A |
| Max. Switching Current: | 10A |
| Max. Switching Voltage: | 400V AC |
| Max. Switching Power: | 1500VA |
| Creepage/Clearance: | 6/8mm |
| Operate/Release Time: | 5/6ms |
| Testing Voltage | |
| Coil/Contact: | 6000V |
| Opening Contact: | 1000V |
| Lifetime | |
| Mechanical: | 10x106 Operations |
| Electrical: | 60x103 Operations |
| Operating Temperature: | -40...+70°C |
| |
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | PN |
| [V DC/AC] | [V] | [V] | [mA] | [mW/VA] | |
| F3851-12G | 12 | 9,6 | 13,2 | 16 | 200 |
| F3851-24 | 24 | 19,2 | 26,4 | 12 | 200 |
| F3851-AC230_ | 230 | 184 | 264 | 3 | 0,7 |
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power; All Specifications Measured at 20°C | |||||
| |||||
| Labelling |
 |
|
| Approvals |
  |
|
| F09320 |
| Jumper for F3851 Relay |
|
| Features |
| • To connect clips A1 or A2 and up to 20 F3851-_ switching relay sockets • Continuous current: 36A (250V) • Length: 121,5mm • Colour: blue |
|
| F09301 |
| Plastic Separator |
|
| Features |
| • "Safe separation" according to VDE 0106, EN 50178 and VDE 0106 part 101 between low voltage and other voltages • The separation of different potentials comb bridges • For the visual separation of groups • For insulation on metal rails, end brackets and other components • Colour: grey |
|
| F09364 |
| Sheet of Marker Tags |
|
| Features |
| • for 38 Series • Plastic • 64 tags, 6x10mm |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece F09320, F09301, F09364: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
