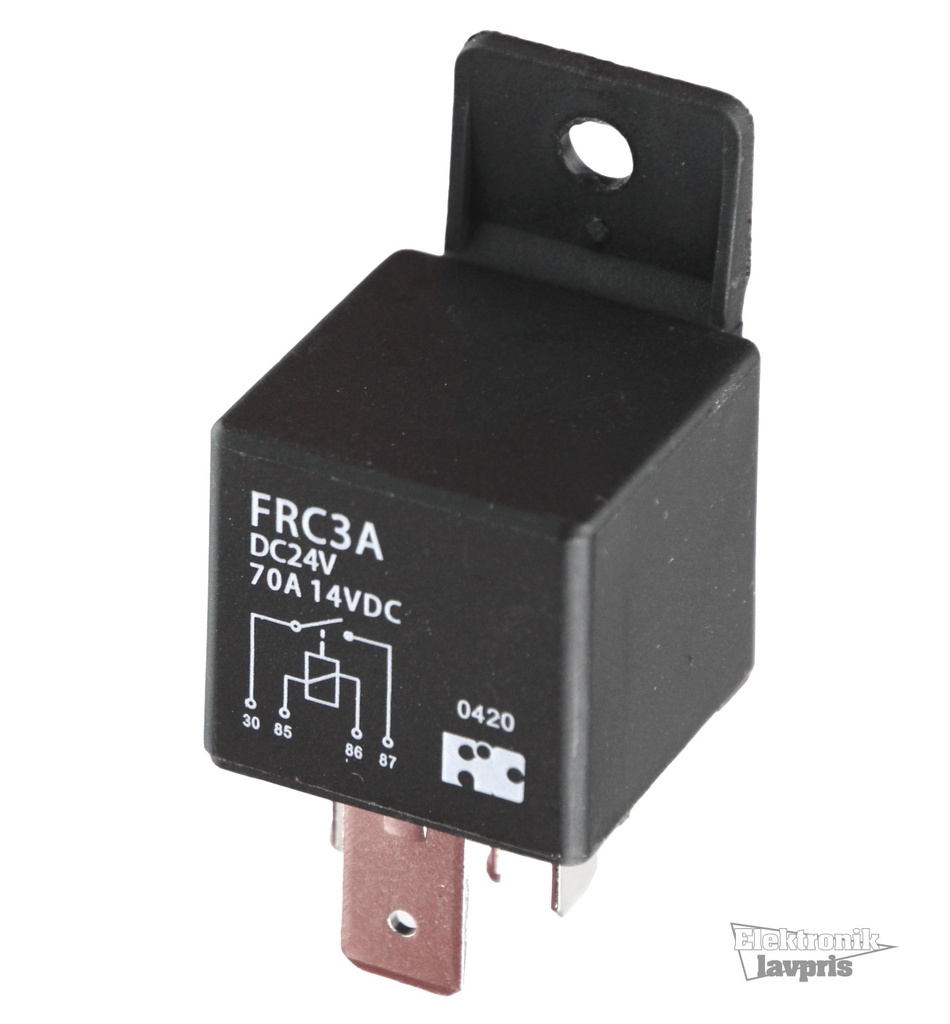

High Current Relay SPST 70A 24V 320R 1xSlutte

Varenummer:

88-749

Varekode:

FRC3-A-DC24V

Vægt:

40 g

Lagerstatus:

Lager: 14 stk.

v/10

Kr. 52,35

v/25

Kr. 43,83

v/100

Kr. 35,31

Denne kombination eksistere ikke.

Køb

Gruppe:
E6523
FIC Automotive Relays
Series: FRC3
Contact: SPST-NO
Rated Current: 70A
Housing: 29,0x29,0x26,5mm (42,5mm)

Features

• High contact ratings 70A
• PCB terminals

Technical Specifications



Contact:	SPST-NO
Contact Material:	AgSnO₂
Rated Current:	70A
Max. Switching Current:	75V DC
Operate/Release Time:	10/10ms
Testing Voltage Coil/Contact:	500V AC
Lifetime
Mechanical:	10x10⁶ Operations
Electrical:	1x10⁵ Operations
Operating Temperature:	-40...+85°C
Weight Approx.:	47g

Coil Data


Part Nr.	U_N	U_max.	U_An	U_Ab	I_N	P_N	R_N
	[V DC]	[V]	[V]	[V]	[mA]	[mW]	[W]
FRC3-12F	12	18	7,8	1,2	150	1800	80
FRC3-24F	24	36	15,6	2,4	75	1800	320
U_N = Rated Voltage, U_max. = Maximum Operating Voltage, U_An = Operate Voltage, U_Ab = Release Voltage, I_N = Rated Current, P_N = Rated Power, R_N = Coil Resistance; All Specifications Measured at 20°C

Terms of Delivery

Minimum order quantity: 1 PKU = 5 pieces

Manufacturer

http://www.ficrelay.com.hk

Stregkode: 88749
Intern reference: 88749
Varekode: FRC3-A-DC24V
