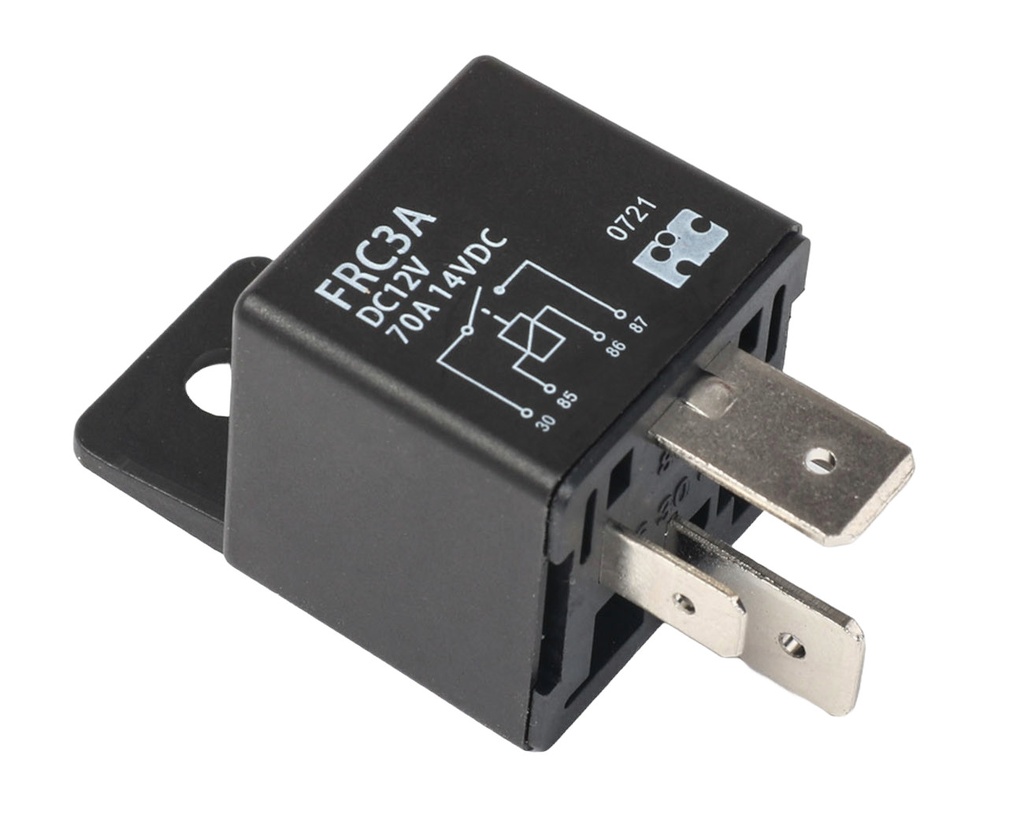

High Current Relay SPST 70A 12V 80R 1xSlutte

Relæ FRC3A-DC12, SPST-NO, 12VDC, 70A

• Rated coil voltage: 12V DC
• Coil resistance: 80Ω
• Rated Current: 150mA
• Must operate voltage: 65% max
• Must dropout voltage: 10 min.
• Maximum voltage: 150 max

Contact Arrangement: SPST (1 Form A); SPDT (1 Form C)
Contact Material: Silver Alloy
Contact Resistance: 30mΩ Max.
Contact Rating (Resistive Load): N.O. : 70A 14VDC N.C. : 60A 14VDC (Special NO :80A)
Switching Voltage: DC 75V Max.
Operate Time (Initial): 10ms Max. Typical
Release Time (Initial): 10ms Max. Typical
Insulation Resistance: 100MΩ Min. ( 500V DC)
Dielectric Strength: 500Vrms between coil and contact
Shock Resistance: 20g Approx.
Vibration Resistance: 10-55Hz, 1.5mm Double Amplitude
Ambient Temperature: -40o C to + 85o C
Humidity: 45 - 85% RH
Operation Life:
- Mechanical : 10 7
- Electrical : 10 (At rated load)
Weight: 47g Approx.
