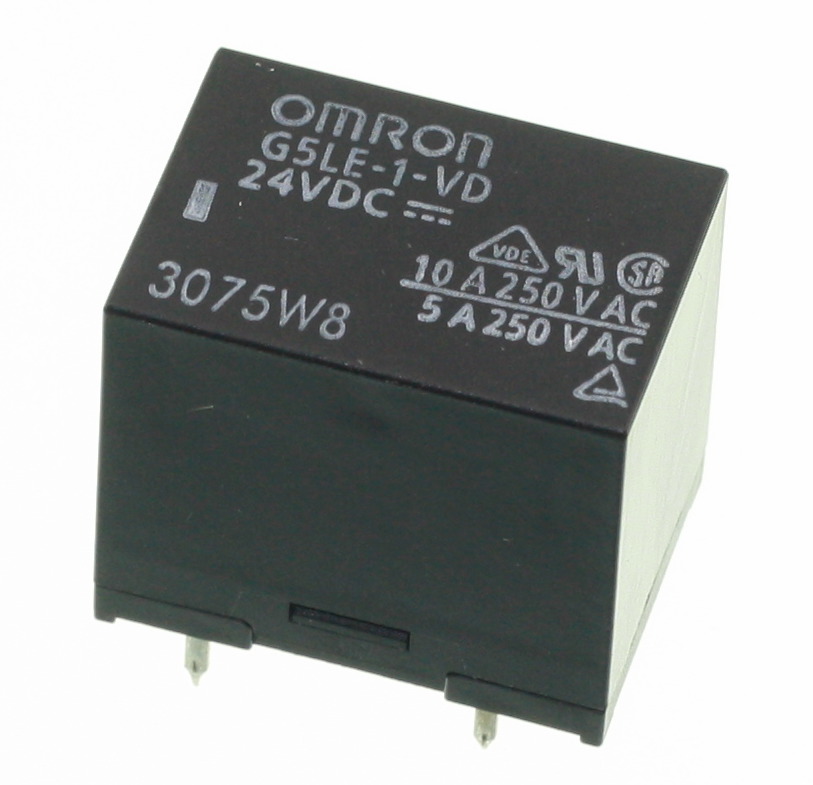

Omron Relæ 1xSkifte 24VDC 10A 1440R
Varenummer:
88-734
Varekode:
G5LE-1 24DC
Vægt:
10 g
Lagerstatus:
Lager: 11 stk.
Omron G5LE-1-VD 24 VDC PCB Mount Relay, Cube 24Vdc 1 CO, SPDT
Technical data
- Creep resistance: PTI (CTI) > 250
| Type | G5LE-1-VD 24 VDC |
|---|---|
| Coil nominal voltage | 24 Vdc |
| Control mode | monostable, 1 coil |
| R(coil) | 1440 Ω |
| Contact type | 1 change-over |
| Contact material | AgSnO2 |
| Switching voltage (max.) | 125 Vdc, 250 Vac |
| Switching current (max.) | 8 A |
| Max. switching capacity | 240 W, 1200 VA |
| Connection | Solder pins |
| Electrical lifespan | Min 100000 cycles |
| Durability | Min 10 x 106 cycles |
| Min. temperature | -40 °C |
| Max. temperature | +85 °C |
| Length | 22.5 mm |
| Width | 16.5 mm |
| Height | 19 mm |
| Category | PCB relays |
| Content | 1 pc(s) |
Highlights & details
- VDE-certification
Description
Mono-stable, compact PCB-relay. Is used in white goods, controls of all kinds!
Approvals: Certified by VDE according to EN61810-1, UL508 and CSA 22.2.
Stregkode:
399-8231
Intern reference:
88734
Varekode:
G5LE-1 24DC
