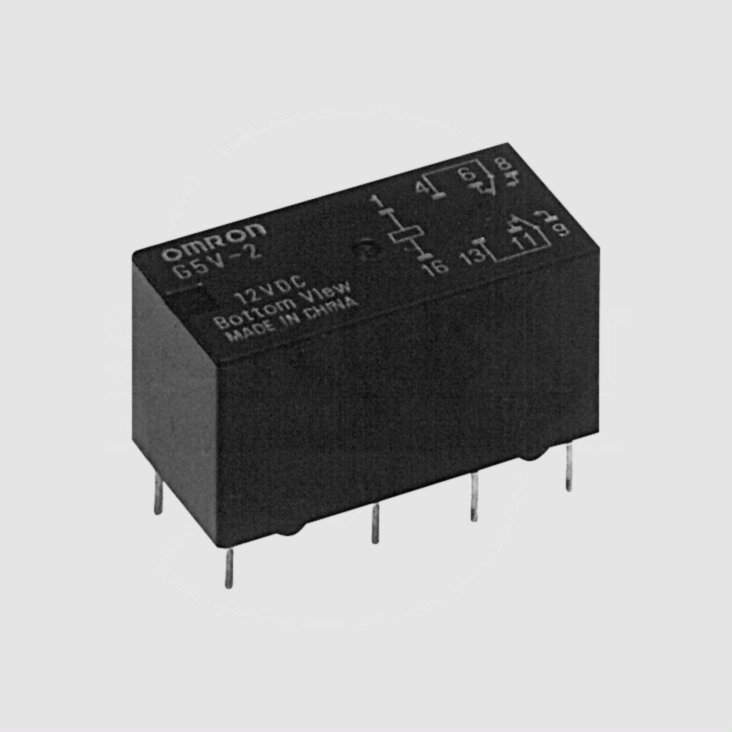

Relay DPDT 2A 12V 288R
Varenummer:
88-723
Varekode:
G5V2-12
Vægt:
10 g
Lagerstatus:
Lager: 25 stk.
Gruppe:
E6235
OMRON Signal PCB Relays
Series: G5V2
Contact: DPDT
Rated Current: 2A
Housing: 20,5x10,1x11,5mm
OMRON Signal PCB Relays
Series: G5V2
Contact: DPDT
Rated Current: 2A
Housing: 20,5x10,1x11,5mm
| Features |
| • Wash tight construction • Wide switching load range: 10mA...2A • PCB mounting or insertable in a 16-pole DIP/DIL socket • In accordance with FCC regulations (part 68) |
 |
| Technical Specifications |
| |
| Contact: | DPDT |
| Contact Material: | Gold Overlay Silver Alloy |
| Rated Current: | 2A |
| Max. Switching Current: | 2A |
| Max. Switching Voltage: | 125V AC/DC |
| Max. Switching Power | |
| G5V2-_: | 62,5VA / 60W |
| G5V2-_H1: | 62,5VA / 24W |
| Operate/Release Time: | 7/3ms |
| Testing Voltage | |
| Coil/Contact: | 1000V AC |
| Contact/Contact: | 750V AC |
| Lifetime | |
| Mechanical: | 15x106 Operations |
| Electrical: | 1x105 Operations |
| Operating Temperature | |
| G5V2-_: | -25...+65°C |
| G5V2-_H1: | -25...+70°C |
| Weight Approx.: | 5g |
| |
| Coil Data |
| Part Nr. | UN | Umax. | UAb | UAn | IN | PN | RN |
| G5V2-_ | [V DC] | [V] | [V] | [V] | [mA] | [mW] | [W] |
| 5 | 5 | 6 | 0,25 | 3,5 | 100 | 500 | 50 |
| 12 | 12 | 14,4 | 0,6 | 8,4 | 41,7 | 500 | 288 |
| 24 | 24 | 28,8 | 1,2 | 16,8 | 20,8 | 500 | 1152 |
| 5H1 | 5 | 9 | 0,25 | 3,75 | 30 | 150 | 166,7 |
| 12H1 | 12 | 21,6 | 0,6 | 9 | 12,50 | 150 | 960 |
| 24H1 | 24 | 43,2 | 1,2 | 18 | 8,30 | 200 | 2880 |
| UN = Rated Voltage, Umax. = Maximum Operating Voltage, UAn = Operate Voltage, UAb = Release Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 23°C | |||||||
| |||||||
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.europe.omron.com |
|
