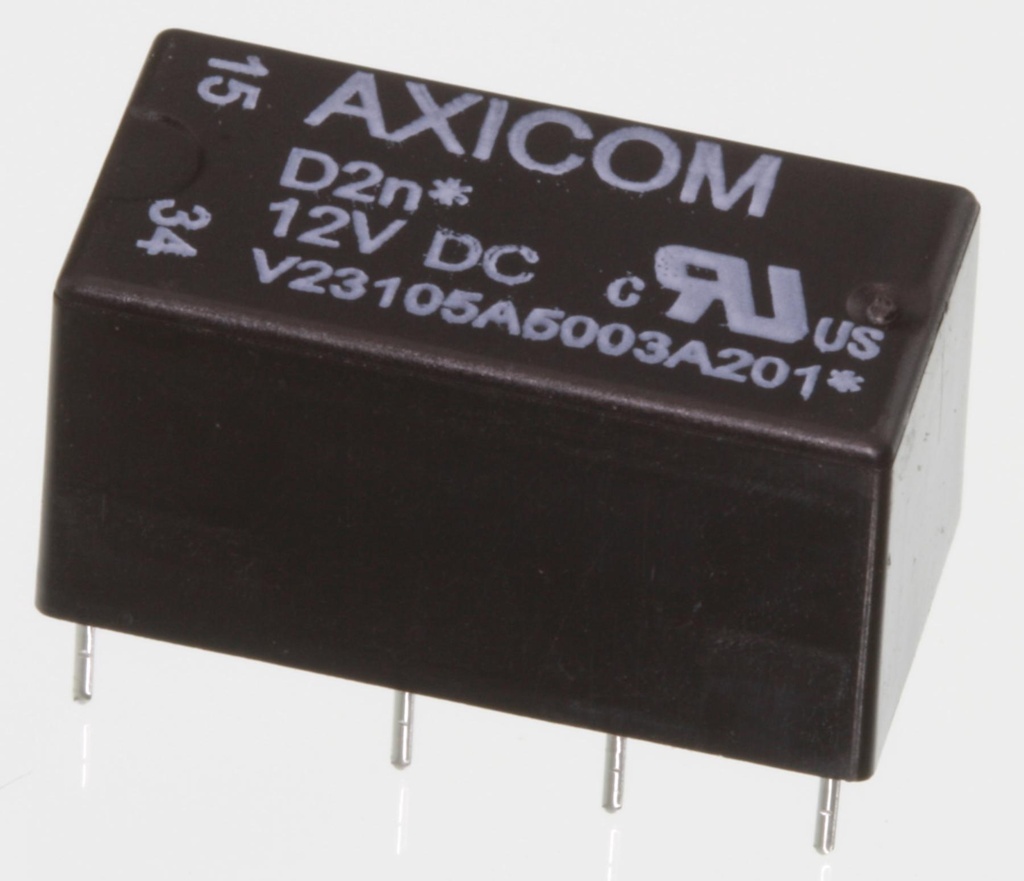

Axicom Relæ12V/150mW/960R/DPDT/2xSkifte/2A-250VAC
Varenummer:
88-720
Varekode:
D2N12-960
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe: E6233
TE Signal PCB Relays
Series: D2N
Contact: DPDT
Rated Current: 2A
Housing: 20,2x10x11mm
| Features |
| • Wash tight construction, IP67/RTIII • Highly sensitive • High voltage according to FCC Part 68 • PCB mounting or insertable in a 16-pole DIP/DIL socket |
 |
| Application |
| Communications equipment, office equipment, measurement and control equipment, entertainment electronics, medical equipment, consumer electronics. |
|
| Technical Specifications |
|
|||||||||||||||||||||||||||||||||
| Contact: | DPDT (Single Contacts) | Contact Material: | AgNi, Gold-plated | Rated Current: | 2A | Max. Switching Current: | 3A | Max. Switching Voltage: | 220V DC / 250V AC | Max. Switching Power: | 60W / 125VA | Testing Voltage | Coil/Contact: | 1000V AC | Contact/Contact: | 750V AC | Lifetime | Mechanical: | 15x106 Operations | Electrical | At 30V DC, 1A: | 5x105 Operations | At 230V AC, 0,5A: | 3x105 Operations | Operating Temperature: | -25...+85°C | Weight Approx.: | 6g | |||||
|
|||||||||||||||||||||||||||||||||
| Coil Data |
|
|||||||||||||||||||||||||||||||||||||||||
| Part Nr. | UN | Umin. | Umax | Uab | PN | RN | [V DC] | [V DC] | [V DC] | [V DC] | [mW] | [W] | D2N05-167 | 5 | 4,0 | 11,7 | 0,25 | 150 | 167 | D2N12-960 | 12 | 9,6 | 28,0 | 0,6 | 150 | 960 | D2N24-2880 | 24 | 16,8 | 48,6 | 1,2 | 200 | 2880 | ||||||||
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, UAb = Release Voltage, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | |||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||
| Note |
| Not suitable for connecting to mains voltage! |
|
| Approvals |
 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| TE Connectivity http://www.te.com |
|
