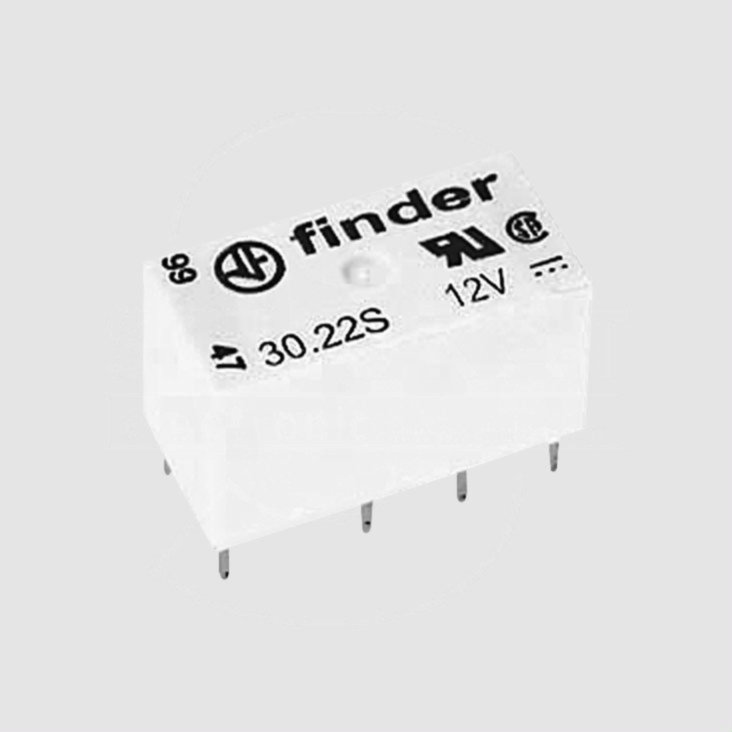

Relay DPDT 1,25A 12V 720R 30.22.7.012.0010
Varenummer:
88-717
Varekode:
F3022-12
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe: E6231
FINDER Signal PCB Relays
Series: 30.22
Contact: DPDT
Rated Current: 2A
Housing: 20,3x10,4x11,4mm
| Features |
| • Wash tight construction • Low level switching capability (1mA/12VDC) • PCB mounting or insertable in a 16-pole /DIP/DIL socket • Relays Protection class RTIII |
 |
| Technical Specifications |
|
|||||||||||||||||||||||||||||||||||
| Contact: | DPDT | Contact Material: | AgNi/Au (5mm) | Rated Current: | 2A | Max. Switching Voltage: | 250V AC | Max. Switching Power | AC1: | 125VA | AC15/230V: | 25VA | Operate/Release Time: | 6/2ms | Testing Voltage | Coil/Contact: | 1000V AC | Opening Contact: | 750V AC | Lifetime | Mechanical: | 10x106 Operations | Electrical: | 100x103 Operations | Operating Temperature | F3022-_: | -40...+85°C | F30229-_: | -40...+75°C | ||||||
|
|||||||||||||||||||||||||||||||||||
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | PN | RN | [V DC] | [V] | [V] | [mA] | [mW] | [W] | F3022-05 | 5 | 3,7 | 7,5 | 40 | 200 | 125 | F3022-06 | 6 | 4,5 | 9,0 | 33 | 200 | 180 | F3022-12 | 12 | 8,4 | 18,0 | 16 | 200 | 720 | F3022-24 | 24 | 16,8 | 36,0 | 8,3 | 200 | 2880 | F30229-06 | 6 | 4,2 | 9,5 | 67 | 400 | 90 | F30229-12 | 12 | 8,4 | 18,9 | 33 | 400 | 360 | F30229-24 | 24 | 16,8 | 37,9 | 17 | 400 | 1440 | ||||||||
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Labelling |
 |
|
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
Stregkode:
492-6596
Intern reference:
88717
Varekode:
F3022-12
