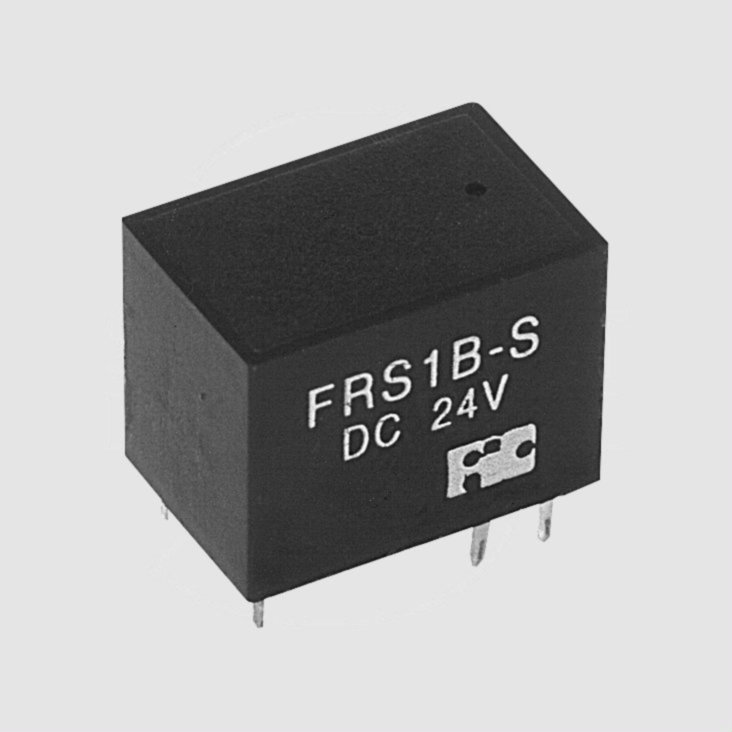

Relay SPDT 1A 24V 2800R
Varenummer:
88-711
Varekode:
FRS1H24
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
E6217
FIC Signal PCB Relays
Series: FRS1
Contact: SPDT
Rated Current: 1A
Housing: 16x11x11,5mm
FIC Signal PCB Relays
Series: FRS1
Contact: SPDT
Rated Current: 1A
Housing: 16x11x11,5mm
| Features |
| • Wash tight construction • PCB mounting, DIP/DIL pitch terminal • Insertable in a 12-pole DIL socket |
 |
| Application |
| General domestic appliances as well as alarm systems |
|
| Technical Specificaitons |
| |
| Contact: | SPDT |
| Contact Material: | AgNi/Au |
| Rated Current: | 1A |
| Rated Input: | 1A/30V DC / 1A/125V AC |
| Operate/Release Time: | £5/5ms |
| Testing Voltage | |
| Coil/Contact: | 500V AC |
| Contact/Contact: | 500V AC |
| Lifetime | |
| Mechanical: | 10x106 Operations |
| Electrical: | 1x105 Operations |
| Operating Temperature: | -25...+75°C |
| Weight Approx.: | 4g |
| |
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | PN | RN |
| [V DC] | [V] | [V] | [mA] | [mW] | [W] | |
| FRS1B12 | 12 | 9,0 | 13,2 | 37,5 | 450 | 320 |
| FRS1B24 | 24 | 18,0 | 26,4 | 18,8 | 450 | 1280 |
| FRS1H12 | 12 | 9,0 | 13,2 | 17,0 | 210 | 700 |
| FRS1H24 | 24 | 18,0 | 26,4 | 8,6 | 210 | 2800 |
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | ||||||
| ||||||
| Safety Note |
| When switching from mains voltage the valid VDE regulations (VDE0110) must be observed. In order to exclude a safety risk, the insulation voltage between coil and contact should amount to at least 4000V AC |
|
| Approvals |
 |
|
| Additional Products |
| Also available on request (minimum order quantity 500 pieces, delivery time: approx. 12 weeks): • Relays with rated voltages of 3,0 to 9,0V (as well as standard and also sensitive operation use) • Relays for rated current (ohmic load): 5A/24V DC, 3A/110V AC |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.ficrelay.com.hk |
|
