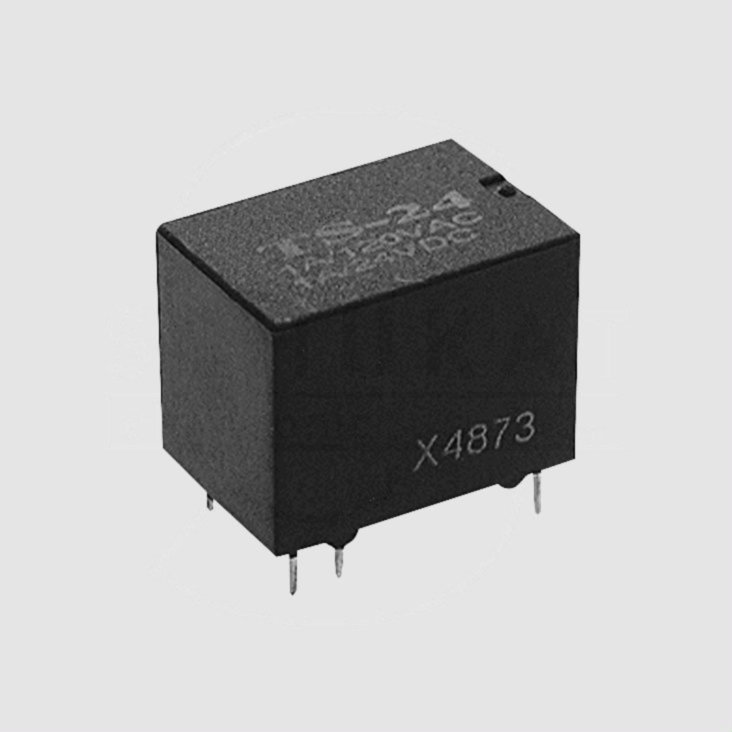

Relay SPDT 1A 24V 2800R
Varenummer:
88-707
Varekode:
TS24-2800
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
E6215
Signal PCB Relays
Series: TS
Contact: SPDT
Rated Current: 1A
Housing: 15,4x10,4x11,8mm
Signal PCB Relays
Series: TS
Contact: SPDT
Rated Current: 1A
Housing: 15,4x10,4x11,8mm
| Features |
| • Wash tight construction • Low power consumption |
 |
| Technical Specifications |
| |
| Contact: | SPDT |
| Contact Material: | Silver Gold-Plated |
| Rated Current: | 1A |
| Min. Switching Current: | 1mA / 5V DC |
| Max. Switching Voltage: | 120V AC / 24W |
| Operate/Release Time: | 5/5ms |
| Testing Voltage | |
| Coil/Contact: | 1500V AC |
| Contact/Contact: | 1000V AC |
| Lifetime | |
| Mechanical: | 1x107 Operations |
| Electrical: | 1x105 Operations |
| Operating Temperature: | -25...+55°C |
| Weight: | 4,5g |
| |
| Coil Data |
| Part Nr. | UN | UAn | UAb | PN | RN |
| [V DC] | [V] | [V] | [mW] | [W] | |
| TS05-120 | 5 | 3,75 | 0,5 | 200 | 120 |
| TS12-700 | 12 | 9 | 1,2 | 200 | 700 |
| TS24-2800 | 24 | 18 | 2,4 | 200 | 2800 |
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | |||||
| |||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| Various |
|
Stregkode:
88707
Intern reference:
88707
Varekode:
TS24-2800
