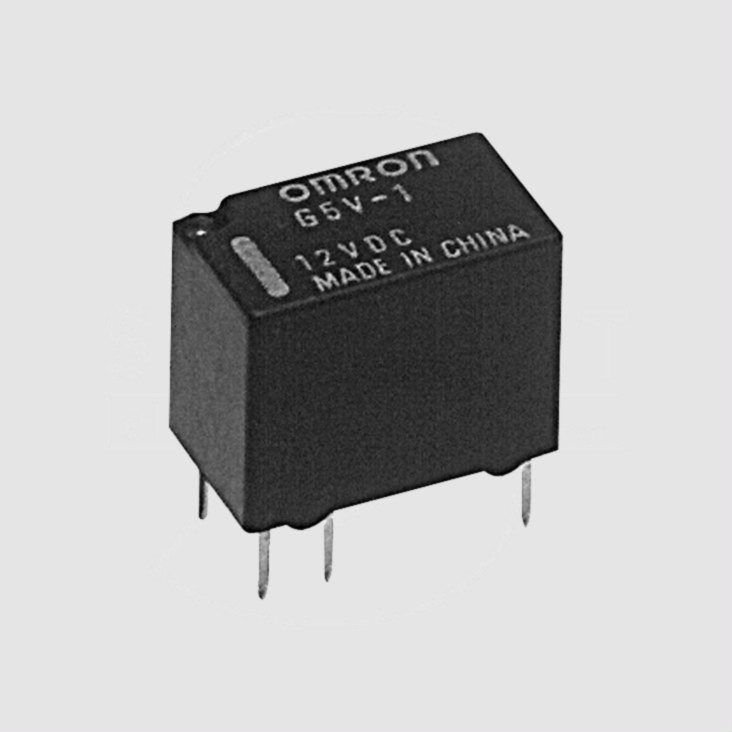

Relay SPDT 1A 12V 960R
Varenummer:
88-703
Varekode:
G5V1-12
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
E6213
OMRON Signal PCB Relays
Series: G5V1
Contact: SPDT
Rated Current: 1A
Housing: 12,5x7,5x10mm
OMRON Signal PCB Relays
Series: G5V1
Contact: SPDT
Rated Current: 1A
Housing: 12,5x7,5x10mm
| Features |
| • Wash tight construction • Wide switching capacity: 1mA...1A • Highly sensitive coil: 150mW • Insertable in a 10-pole IC socket • Conforms to FCC (part 68) requirements for coil to contacts |
 |
| Technical Specifications |
| |
| Contact: | SPDT (Single Crossbar) |
| Contact Material: | Silver, Gold-Plated |
| Rated Current: | 1A |
| Max. Switching Voltage: | 125V AC / 60V DC |
| Switching Power: | 30W / 62,5VA |
| Operate/Release Time: | 5/5ms |
| Testing Voltage (50/60Hz; 1 Min.) | |
| Coil/Contact: | 1000V AC |
| Lifetime | |
| Mechanical: | 5x106 Operations |
| Electrical: | 1x105 Operations |
| Operating Temperature: | -40...+70°C |
| Weight Approx.: | 2g |
| |
| Coil Data |
| Part Nr. | UN | Umax. | UAn | UAb. | IN | RN |
| [V DC] | [V] | [V] | [V] | [mA] | [W] | |
| G5V1-5 | 5 | 10 | 4 | 0,5 | 30,0 | 167 |
| G5V1-12 | 12 | 24 | 9,6 | 1,2 | 12,5 | 960 |
| G5V1-24 | 24 | 48 | 19,2 | 2,4 | 6,25 | 3840 |
| UN = Rated Voltage, Umax. = Maximum Operating Voltage, UAn = Operate Voltage, UAb = Release Voltage, IN = Rated Current, RN = Coil Resistance; All Specifications Measured at 23°C | ||||||
| ||||||
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.europe.omron.com |
|
