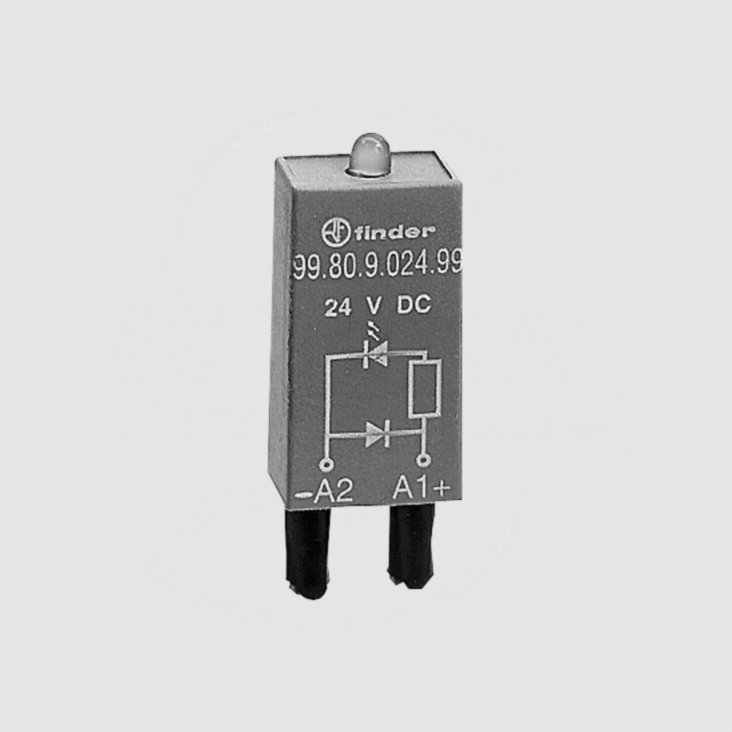

Module LED/F-Diode 6-24VDC FM24L
Varenummer:
88-696
Varekode:
99.80.9.024.99
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe: E6485
FINDER DIN Rail Sockets and Accessories
For Relays from the Series F34_, F40_ and F44_
| Features |
| • No reduction in the insulation class resp. the creepage and clearance by plastic retaining clips • Relays are easily replaced • Modules are placed easily and safely (proper polarity alignment) into the socket |
 |
| Technical Specifications |
|
|||||||||||||||
| Rated Voltage: | 250V AC | Rated Current: | 10A | Insulation Resistance: | ³103MW | Insulation Voltage: | ³2kV | Type of Protection: | IP20 | Housing Material: | PA66 | Contacts: | CuZn33, Nickel-Plated | ||
|
|||||||||||||||
| F9301_, F9351_ |
| DIN Rail Socket for F3451 Relays |
|
| Features |
| • Snap-on mounting for DIN-rail (EN 50022) • F9301_: with screw terminal • F9351_: with screwless terminal • Retaining and release clip • Coil indication and EMC suppression modules • securely disconnection according to the VDE 0106, EN 50178, EN 60204 • F93_-24: for Relays with 6...24V DC supply voltage • F93_-240AC: for Relays with 200...240A AC/DC supply voltage |
|
| Note |
| • You will find suitable relays in product group E6313 |
|
| Approvals |
   |
|
| F95833, F95853, F95953 |
| Screwed Sockets for DIN Rails |
|
| Selection Table |
|
|||||||||||||||||||||||
| Part Nr. | Suitable For | Pitch | Colour | [mm] | F95833 | F4031 | 3,50 | Blue | F95853 | F4052, F4061, F4152, F4161 | 5,08 | Blue | F95953 | F4052, F4061, F4152, F4161 | 5,08 | Blue | |||||||
|
|||||||||||||||||||||||
| Note |
| • You will find suitable relays in product groups E6375, E6411, E6412, E6416, E6418, E6451 and E6453 |
|
| F95913 |
| Retaining Clips |
|
| Features |
| • Blue varioclip for: F95833 + F4031 F95853 + F4052 resp. F95953 + F4052 + F4462 F95853 + F4061 resp. F95953 + F4061 + F4462 |
|
| FM_ |
| Display Modules for Sockets F95833, F95853, F95953 |
|
| Features |
| • LED Colour:: green • Module Colour: blue |
|
| Selection Table |
|
|||||||||||
| Part Nr. | Description | FM998D | Diode Module (6...220V DC) | FM24L | LED Module with Diode (6...24V DC) | FM24LD | LED Display with Varistor (6...24V AC/DC) | FM230LV | LED Display with Varistor (110...230V AC/DC) | ||
| + Positive Pole A1 | |||||||||||
|
|||||||||||
| Note |
| With a continuous current >10A, the terminals 11-21, 14-24, 12-22 bridge (with relay F4061) |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces F9301_ and F9351_: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
Stregkode:
666-8021
Intern reference:
88696
Varekode:
99.80.9.024.99
