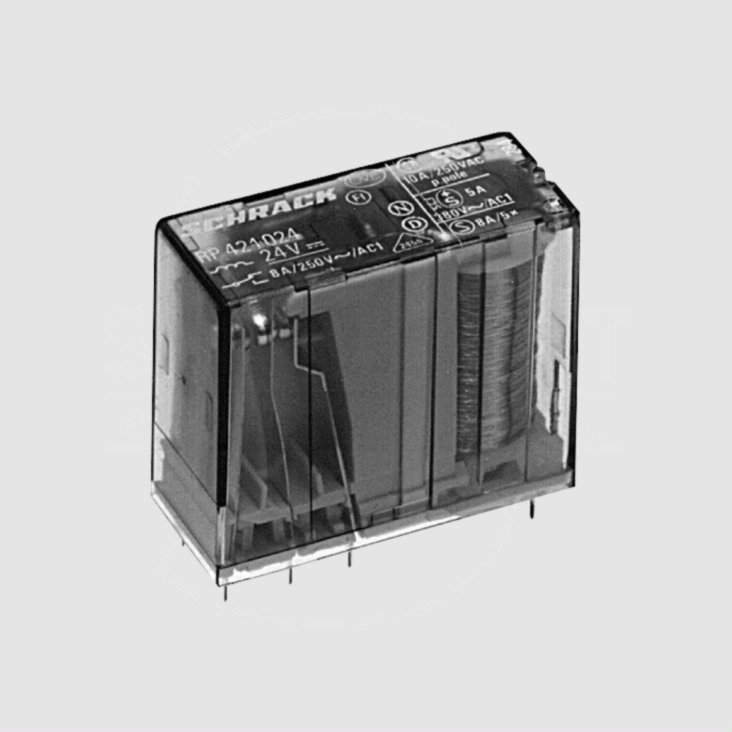

Relay DPDT 8A 12V 270R
Varenummer:
88-680
Varekode:
RP421-12
Vægt:
20 g
Lagerstatus:
Ikke på lager
Gruppe:
E6453
TE Power PCB Relays
Series: RP421
Contact: DPDT
Rated Current: 8A
Housing: 29,0x12,6x25,5mm
TE Power PCB Relays
Series: RP421
Contact: DPDT
Rated Current: 8A
Housing: 29,0x12,6x25,5mm
| Features |
| • Flux proof • Sensitive coil: 500mW • Insulation to VDE0110b: C/250 • Relay protection class RTII |
 |
| Application |
| Domestic appliances, UPS's |
|
| Technical Specifications |
| |
| Contact: | DPDT (Single Contact) |
| Contact Material: | AgNi 0,15 |
| Rated Current: | 8A |
| Max. Switching Current: | 14A |
| Max. Switching Voltage: | 440V AC |
| Max. Switching Power: | 2000VA |
| Creepage/Clearance: | 8/8mm |
| Operate/Release Time: | 9/3ms |
| Testing Voltage | |
| Coil/Contact: | 4000Vrms |
| Contact/Contact: | 2500Vrms |
| Opening Contact: | 1000Vrms |
| Lifetime | |
| Mechanical: | 2x106 Operations |
| Operating Temperature: | -40...+70°C |
| Weight Approx.: | 18g |
| |
| Coil Data |
| Part Nr. | UN | Umax. | UAn | UAb | IN | PN | RN |
| [V DC] | [V] | [V] | [V] | [mA] | [mW] | [W] | |
| RP421-12 | 12 | 21,6 | 8,4 | 1,2 | 44,4 | 500 | 270 |
| RP421-24 | 24 | 43,2 | 16,8 | 2,4 | 21,8 | 500 | 1100 |
| UN = Rated Voltage, Umax. = Maximum Operating Voltage, UAn = Operate Voltage, UAb = Release Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | |||||||
| |||||||
| Note |
| • Assembly by direct soldering in the PCB or • PCB socket F95152 with retaining clip F9551SW resp. F95523, see product group E6481, or • DIN rail socket F95853 resp. F95953 with retaining clip F95913, see product group E6485 |
|
| Approvals |
  |
|
| Additional Products |
| Also available on request (minimum order quantity 500 pieces, delivery time approx. 15 weeks): • Relays with 5V, 6V, 48V, 60V and 110V rated voltage • Wash tight relays |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| TE Connectivity http://www.te.com |
|
