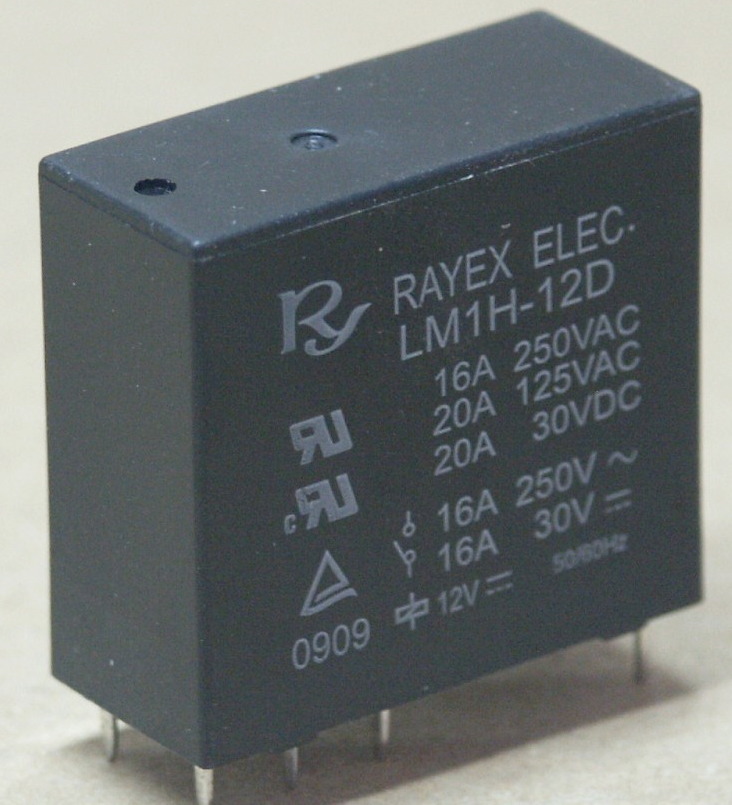

Relay SPDT 16A 12V 270R (RP310012)

Varenummer:

88-675

Varekode:

LM1H-12D

Vægt:

20 g

Lagerstatus:

Ikke på lager

v/10

Kr. 32,04

v/25

Kr. 28,36

v/100

Kr. 25,94

Denne kombination eksistere ikke.

Køb

Manufacturer	Recoy/RAYEX ELECTRONICS
Type of relay	electromagnetic
Contacts configuration	SPDT
Rated coil voltage	12V DC
AC contacts rating @R (at resistive load)	16A / 250V AC
DC contacts rating @R (at resistive load)	16A / 30V DC
Contact current max.	16A
Switched voltage	max. 30V DC, max. 250V AC
Relay variant	miniature
Mounting	PCB
Coil resistance	270Ω
Operate time	15ms
Body dimensions	29x20.5x12.5mm
Release time	10ms
Coil power consumption	530mW
Operating temperature	-40...80°C
Relay series	LM1H
Contact resistance	100mΩ
Contact material	AgCdO
Terminal pitch	5mm
Coil current	44.4mA

Stregkode: 103-9611
Intern reference: 88675
Varekode: LM1H-12D
