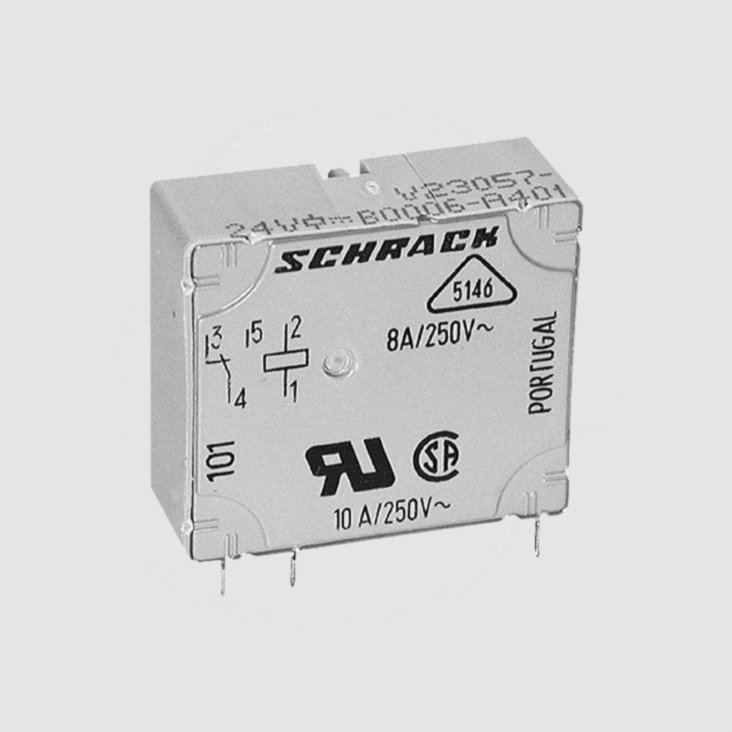

Relay SPDT 8A 24V 1200R Horizontal
Varenummer:
88-665
Varekode:
KRE24L
Vægt:
20 g
Lagerstatus:
Ikke på lager
Gruppe:
E6413
TE Power PCB Relays
Series: E (KRE)
Contact: SPDT
Rated Current: 8A
Housing: 28,0x10,4x25,1mm
TE Power PCB Relays
Series: E (KRE)
Contact: SPDT
Rated Current: 8A
Housing: 28,0x10,4x25,1mm
| Features |
| • KRE_S: vertical version • KRE_L: horizontal version • 4kV coil/contact • Version with bifurcated contacts • Wash tight RTIII |
 |
| Technical Specifications |
| |
| Contact: | SPDT (Single Contact) |
| Contact Material: | AgCdO |
| Rated Current: | 8A |
| Max. Switching Current: | 15A |
| Max. Switching Voltage: | 400V AC |
| Max. Switching Power: | 2000VA |
| Creepage/Clearance: | ³4/4mm |
| Operate/Release Time: | 7/3ms |
| Testing Voltage | |
| Coil/Contact: | 4000Vrms |
| Opening Contact: | 1000Vrms |
| Lifetime | |
| Mechanical: | 20x106 Operations |
| Operating Temperature: | -40...+70°C |
| Weight Approx.: | 14g |
| |
| Coil Data |
| Part Nr. | UN | UAn | UAb | PN | RN |
| [V DC] | [V] | [V] | [mW] | [W] | |
| KRE12_ | 12 | 8 | 1,2 | 436 | 330 |
| KRE24_ | 24 | 16 | 2,4 | 480 | 1200 |
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 23°C | |||||
| |||||
| Note |
| • Assembly by direct soldering in the PCB • Please contact the manufacturer for information about ultrasonic cleaning. • Recommended for loads greater than 500mA, 12V AC |
|
| Approvals |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| TE Connectivity http://www.te.com |
|
Stregkode:
88665
Intern reference:
88665
Varekode:
KRE24L
