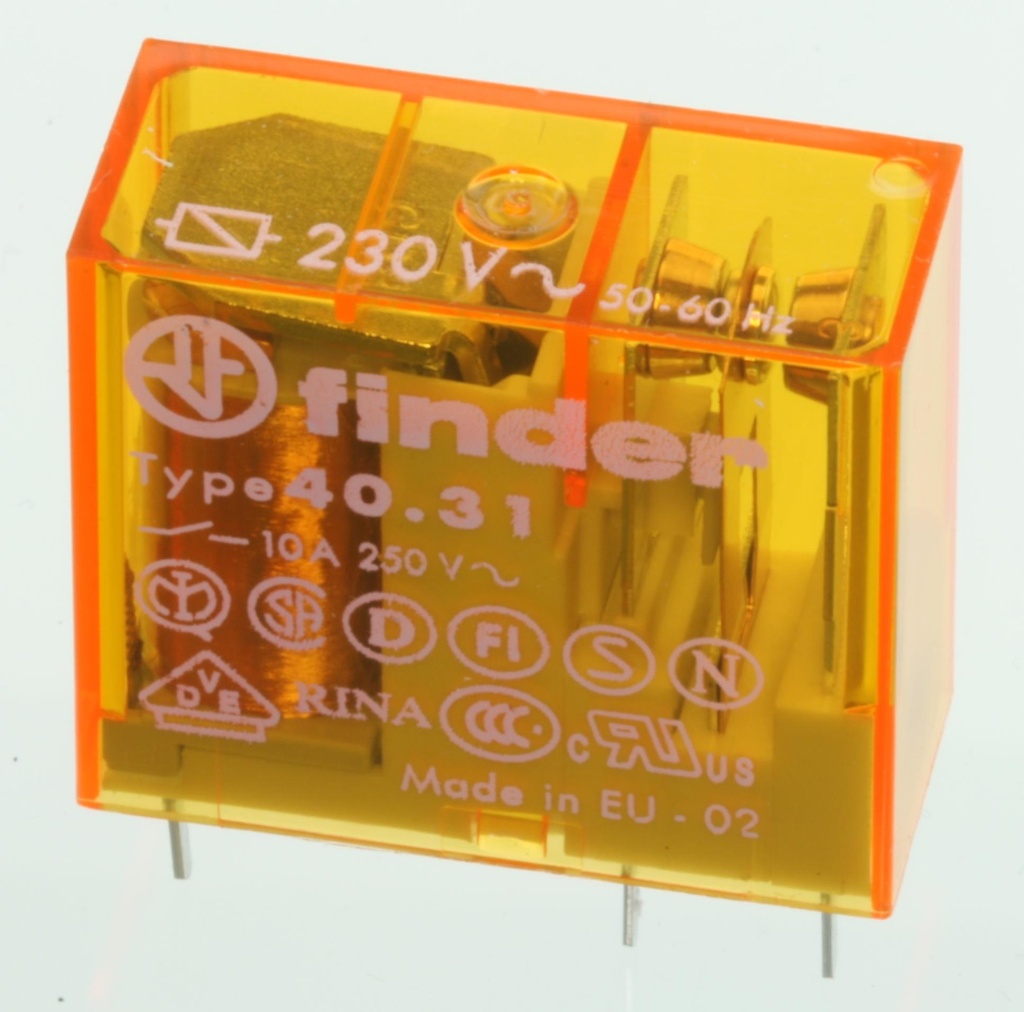

PCB Relay SPDT 10A 230VAC 28K 40.31.8.230.0000

Varenummer:

88-659

Varekode:

F4031-AC230

Vægt:

20 g

Lagerstatus:

Lager: 6 stk.

v/10

Kr. 92,66

v/25

Kr. 84,30

v/100

Kr. 80,00

Denne kombination eksistere ikke.

Køb

RELAY, PCB, SPCO, 240VAC
Relay Type: Miniature
Coil Voltage VAC Nom: 240V
Contact Current Max: 20A
Contact Voltage AC Nom: 250V
Coil Resistance: 31.5kohm
Contact Configuration: SPCO
Coil Type: AC
Coil Current: 4.1mA
Nom Operating Power: 1.2VA
Relay Mounting: PCB
External Height: 29mm
External Width: 12.4mm
External Depth: 25mm
SVHC: No SVHC (19-Dec-2011)
Approval Bodies: BEAB / CSA / DEMKO / IMQ SEMKO / NF-USE / SETI / SEV / UL / VDE
Approval Category: VDE, BEAB, UL, CSA, SEV, NF-USE, SETI, IMQ SEMKO, DEMKO
Coil Operating Lower Percent Limit: 80%
Coil Operating Upper Percent Limit: 150%
Contact Configuration: SPCO
Contact Current AC Max: 10A
Contact Current DC Max: 10A
Contact Material: Silver Nickel
Contact Voltage AC Max: 240V
Contact Voltage DC Max: 30V
DC Coil Power: 500mW
External Length / Height: 29mm
Mounting Type: PCB
No. of Poles: 1
Operating Temperature Max: 70°C
Operating Temperature Min: -20°C
Operating Time: 10ms
PCB Hole Diameter: 1.5mm
Release Time: 7ms
Series: 40
40.31.8.230.0000

Stregkode: 376-852
Intern reference: 88659
Varekode: F4031-AC230
